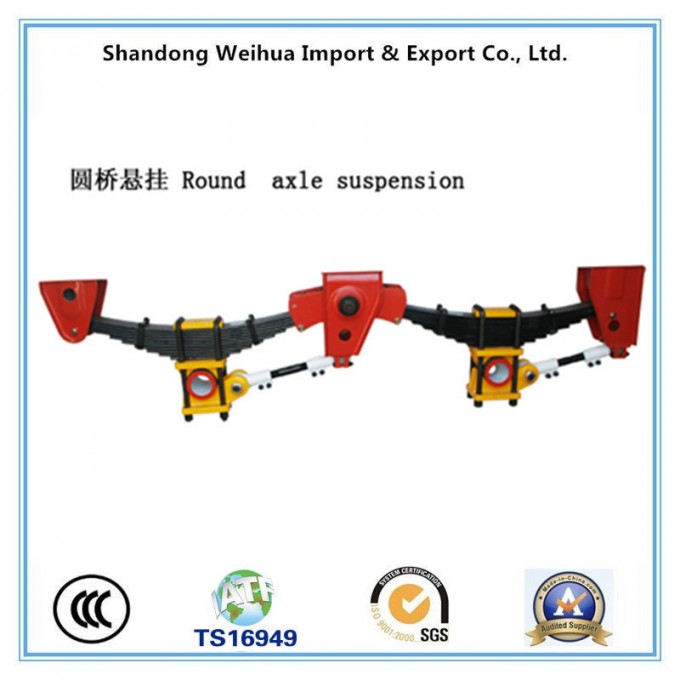

American Type Semi Truck Trailer Round Axle Suspension

Part Description:
American Type Semi Truck Trailer Round Axle Suspension
Axles: 2 axles / 3 axles
Capacity: 16t *3

		A1(MM)	B1(MM)	A2(MM)	B2(MM)	A3(MM)	B3(MM)	H(MM)
Suspensionmodel	HeightofTowing plate(mm)								Capcity
WHXJ03-110	1110	399	369	390	360	381	351	115	>16,000*3
WHXJ03-130	1130	419	389	410	380	401	371	135	>16,000*3
WHXJ03-150	1150	439	409	430	400	421	391	155	>16,000*3
WHXJ03-180	1180	469	439	460	430	451	421	185	>16,000*3
WHXJ03-210	1210	499	469	490	460	481	451	215	>16,000*3
WHXJ03-230	1230	519	489	510	480	501	471	235	>16,000*3
WHXJ03-250	1250	539	509	530	500	521	491	255	>16,000*3
WHXJ03-270	1270	559	529	550	520	541	511	275	>16,000*3
WHXJ03-300	1300	589	559	580	550	571	541	305	>16,000*3
WHXJ03-320	1320	609	579	600	570	591	561	325	>16,000*3
WHXJ03-350	1350	639	609	630	600	621	591	355	>16,000*3

Note:
1.Balance arm pin 50 or 60.
2.May need to select side wall thickness 8mm or 10mm
3.Spring specification:width 90mm,100,120mm ;the quantity of leaves is optional.
4.A : Empty load size ,B: Full load size.

Characteristics:
1. Special heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performance, strong load ability and lower self weight.
2. High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability.
3. High performance pmium non-asbestos brake linings, estend serbice life.
4. Easy for ABS installation.
5. Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety.
6. New tight fit hub cap habe Orings, high property for sealing.
7. Grease lubricant is supplied by Mobil that lengthens the time of free maintenance.
8. Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims.

Scope of our business:
1. Lowbed Semi trailer, tanker trailer, container semi trailer, stake semi trailer, side wall fence semi trailer, dumper /tipper semi trailer, heavy duty hidralic moudlar semi trailer, heavy duty fan blade transport semi trailer and so on.
2 Axles (German type axle, English type axle, American type axle, Spoke axle, ZM axle, Agriculture axle, Half axle, Axle without brake)
3. Suspension (Bogie suspension, One point suspension, Rigid suspension, Spoke suspension, Machinery suspension)
4. Landing gear
5. Fifth wheel (2'' 3.5'')
6. King pin (2'' 3.5'')
7. Other axles and related parts (Low bed axle, hub, rims, spring, drum...)
Company profile & Factory View:
Whyus?
1- Since 1996, With 20yrs experience
2-2YearsGuaranteeforallthethebeamoftrailers
3-Reliability,SafetyandEconomicTransportsolutions.
4-CustomProductionaccordingtodemand
5-Strictqualitycontrol,out-standingqualityassurance
6-StockTrailersandimmediatedelivery
7-After-saleserviceavailable,Emailwillbereplywithin8hours.

OurAdvantage
1-Withwellexperiencedsemitrailerproductioncompanytoofferhighqualityandcompetitivepricessemitrailertoourworldwidevaluablecustomers.
2-Anprofessionalteamwhichisexperiencedwithinternationalmarketandhasstrongtechnicalcapabilitytocustomizedcosteffective.
3-Sellwellintheinternationalmarkets,suchasAfricanmarket(Sudan,Angola,Zimbabwe,Liberia,Djibouti,Congo,Kenya,Ghanaect.),MiddleEast,SouthAsiaandSouth-Americamarket.
4-2YearsGuaranteeforallthethebeamoftrailers,timelyshipment

QualityControl
1-ForEachtrailer,weshoulddothetestingandinspectthequality.
2-Wegiveinspectioncertificateaccordingtocustomerdemandforeverytrailerwhichgivenbyanindependentthirdpartycertificationcompany.
3- We provide out-standing quality assurance
4-Noanyqualitycomplaintsfor9years.

PerfectService&Support
1-Wheneverreliability,safetyandeconomicisneeded,thereisaasolution.Weihuaprovidesthebestpossiblequalitysemitrailerstoworldwidevaluablecustomers.
2-Withafullrangeoftrailerspatepartssupport,sparepartssupplyingwithin3days
3-Seriouslyconsidercustomer'srequirements,andwelcomedifferentcooperationmode.
4-Provide professional trailer drawing
5- Considerate after-sales service & product maintenance

Please feel free to contact and looking forward to your visiting factory.Weihua will provide you with an individual concept !
