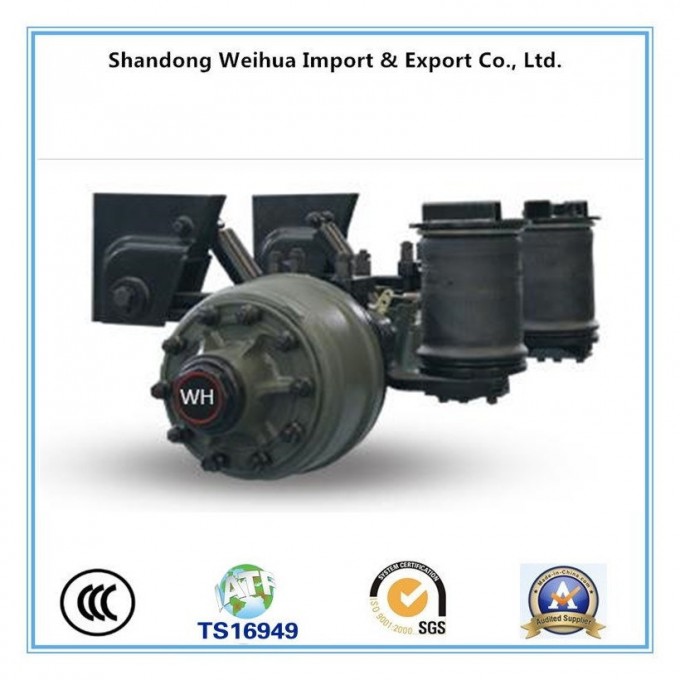

Popolar 12t Germany Type Suspension for Truck Trailer

1. Specification:


2. Here provide the spare parts data sheet for your consideration only:

Model	Axlelift	Ratedload(KG)	AxleBeam(mm)	Leafspring(mm)	Airbagspec.	L1(mm)	L2(mm)	H1(mm)	H2(mm)	H3(mm)
WHMA9-1	NO	9000	120(square)	1-100x50	350/300	500	380	268	210	318
WHMA9-2	NO	9000	120(square)	1-100x50	350/300	500	380	268	426	318
WHMA9-3	YES	9000	120(square)	1-100x50	350/300,260	500	380	268	210	318
WHMA9-4	YES	9000	120(square)	1-100x50	350/300,260	500	380	268	426	318
WHMA9-5	NO	9000	Ø127	1-100x50	350/300	500	380	268	210	318
WHMA9-6	NO	9000	Ø127	1-100x50	350/300	500	380	268	426	318
WHMA9-7	YES	9000	Ø127	1-100x50	350/300,260	500	380	268	210	318
WHMA9-8	YES	9000	Ø127	1-100x50	350/300,260	500	380	268	426	318
WHMA11-1	YES	11000	150(square)	2-100x40	350,260	550	385	268	444	423
WHMA11-2	NO	11000	150(square)	2-100x40	350	550	385	268	444	423
WHMA11-3	YES	11000	Ø127	2-100x40	350,260	550	385	268	422	423
WHMA11-4	NO	11000	Ø127	2-100x40	350	550	385	268	422	423

Production feature:
-- Special heat-treat, low-alloy steel axle beam, it has the virtues of good synthetic performance, strong load ability and lower self weight.
-- High quality alloy solid inserted spindle, through wholly heat treatment, provide superior wear-resisting capability.
-- High performance pmium non-asbestos brake linings, extend service life.
-- Easy for ABS installation.
-- Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety.
-- New tight fit hub cap habe Orings, high property for sealing.
--Grease lubricant is supplied by Mobil that lengthens the time of free maintenance.
--Full range of stud fixing such as ISO, TS16949, it can meet the requirements of various wheel rims.
Scope of our business:
1. Lowbed Semi trailer, tanker trailer, container semi trailer, stake semi trailer, side wall fence semi trailer, dumper /tipper semi trailer, heavy duty hydraulic modular semi trailer, heavy duty fan blade transport semi trailer and so on.
2 Axles (German type axle, English type axle, American type axle, Spoke axle, ZM axle, Agriculture axle, Half axle, Axle without brake)
3. Suspension (Bogie suspension, One point suspension, Rigid suspension, Spoke suspension, Machinery suspension)
4. Landing gear
5. Fifth wheel (2'' 3.5'')
6. King pin (2'' 3.5'')
7. Other axles and related parts (Low bed axle, hub, rims, spring, drum...)

3.Other information:
Shandong Weihua import & Export Co., Ltd is a research, production and sales in one of the industry and trade enterprises. It is specialized in research, development, production of semi-trailer and special vehicles. The factory is located in the special vehicle production base -- Liangshan, China.Our company's main products are as below:Low bed semi trailer (including the trailer that can be extended to 53m)Container trailer: Skeleton container trailers & flatbed container trailersSide wall semi trailerDump semi-trailerBulk cement tank trailerOil / fuel tank trailerVan / box semi trailersemi trailer accessories. At the same time, we also operate brands of heavy trucks, tractors, engineering machinery and agricultural machinery.
Our factory has 20 years of production experience. It owns complete R&D center, vehicle and parts inspection center, rollover test laboratory, collision test place. The trailer payload is from 20 tons to 300 tons. The production capacity is over 10000 units per year.Our trailers are widely exported to Russia, Outer Mongolia, Vietnam, Philippines, the middle east, Africa (such as Sultan, Nigeria, Algeria), South America and so on.
The company always adhere to the quality first, customer supme principle for good service to every customer. Each of vehicle that we produced has a high quality and reliability. We always strive to know your business to ensure we provide you the high quality trailers and servicing more intimately. You can inquiry us for a solution to virtually and transport problems you may have. So, you can be assured of optimal operating efficiency, cost control and above all, reliability.




Whyus?
1- Since 1996, with 20yearsexperience.
2-2 years guaranteeforallthe beamoftrailers.
3-Reliability,safetyandeconomictransportsolutions.
4-Customproductionaccordingtodemand.
5-Strictqualitycontrol,out-standingqualityassurance.
6-Stocktrailersandimmediatedelivery.
7-After-saleserviceavailable,emailwillbereplywithin8hours.

OurAdvantage
1-Withwellexperiencedsemitrailerproductioncompanytoofferhighqualityandcompetitivepricessemitrailertoourworldwidevaluablecustomers.
2-Anprofessionalteamwhichisexperiencedwithinternationalmarketandhasstrongtechnicalcapabilitytocustomizedcosteffective.
3-Sellwellintheinternationalmarkets,suchasAfricanmarket(Sudan,Angola,Zimbabwe,Liberia,Djibouti,Congo,Kenya,Ghanaect.),MiddleEast,SouthAsiaandSouth-Americamarket.
4-2yearsguaranteeforallthebeamoftrailers,timelyshipment.

QualityControl
1-Foreachtrailer,weshoulddothetestingandinspectthequality.
2-Wegiveinspectioncertificateaccordingtocustomerdemandforeverytrailerwhichgivenbyanindependentthirdpartycertificationcompany.
3- We provide out-standing quality assurance.
4-Noanyqualitycomplaintsfor9years.

PerfectService&Support
1-Wheneverreliability,safetyandeconomicisneeded,thereis a solution. Weihua provides the best possible quality semi trailers to worldwide valuable customers.
2-Withafullrangeoftrailerspatepartssupport,sparepartssupplyingwithin3days.
3-Seriouslyconsidercustomer'srequirements,andwelcomedifferentcooperationmodes.
4-Provide professional trailer drawing.
5- Considerate after-sales service & product maintenance.


Shandong Weihua can supply all kinds of semi trailers, we can design and produce according to your requirements.
