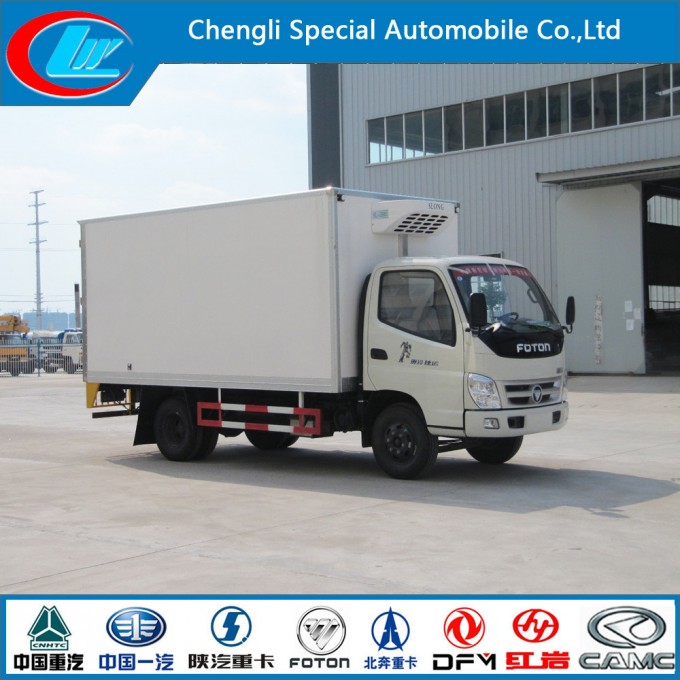

Footon 4*2 Refrigerated Truck Bodies

Ifyouareinterestedinthismodel,plsfeelfreetosendinquiry,andwewillalwaysbegladtoquote.
Contact with me!

SaleManager:AlbertDu
Mobile:0086-18660874450
0086-13872880263
Tel/Fax : 00862783796298


FAQ
1.Our price term:FOB Shanghai as common, other port is also acceptable.
2. Our Payment term:T/T, 30% deposit after order /confirm/iation, 70% balance should be paid before delivery.
3. Delivery time:the delivery time is 20-30 days as common, the exact delivery time depends on the order and the current production condition.
Packaging and shipping
1, Packaging: nude orwaxing;
2. Shipping: Ro-Ro ship or bulk ship according to the customer' order or requirement

Company information
ClWHeavyIndustryCo.,Ltd
1.Competitive Price and Excellent Quality,
2.More than 10 years' experience as a manufacturer
3.CCC, ISO, BV certification
4.Perfect after-sale service
5.Export covering More than 50 countries and regions
6.Annual production value topped 1500, 000, 000 RMB (240, 000, 000 US dollars) per year
7.canproducewatertanktruck,fueltanktruck,bulkcementtruck,LPGTank,GarbageTruck,TowTruck,SewageVacuumTruck,AerialPlatform,ConcreteMixerTruck,RoadSweeperTruck,CargoCraneTruck,FirefightingTruck

Exporting
As Manufacturer, We Have Our Own License Of import And Export.We Have Successfully Exported ToGhana, Sudan, Nigeria, Angola, Tajikistan, Namibia, Burma, Korea, Iran, American, Afghanistan, Iraq AndOther Countries.

Contact with me!

SaleManager:AlbertDu
Mobile:0086-18660874450
0086-13872880263
Tel/Fax : 00862783796298

Website:truckcl.en.alibaba.com
Technique Paraments

Description	FOTON4X2RefrigeratorTruck
DriveModel	4X2
Chassis	BJ1120
VehicleMainDimensions	Dimensions(LxWxH)mm	8525×2340×3350
	Wheelbase(mm)	4700
	Overhang(front/rear)(mm)	1165/2660
	Wheeltrack(front/rear)(mm)	1710/1680
	Approach/Departureangle(°)	23/11
WeightinKGS	CurbWeight	6010
	GVW.	12495
Max.drivingspeed(km/h)		95
Engine	Model	CY4102-C3C
	Type	4-strokedirectinjection,4-cylinderin-linewithwatercooling,turbo-chargingandinter-cooling
	HorsePower(HP)	120HP
	Emissionstandard	EuroIII
Gearbox	6forwards&1reverse
Clutch	Reinforceddiaphragmclutch
SteeringGear	Powersteering,hydraulicsteeringwithpowerassistance
Fueltank(L)	150
Tire	8.25-20tire,6piecesincluding1sparetire
Brakes	dualcircuitcompssedairbrake
Van
Material	1.Fibersteeldoubledeck 2.with8CMthicknesspolyurethane 3.Fibersteel/Stainlesssteel/Colorplatecanbechosen
TipperBoxDimension	6235×2135×2000mm
Thickness	10CM
Temperature	-18ºCor-5ºCasyourchoice

Truckrefrigerator

Unitmodel			F600
RefrigeratorType			HUATAI
Applicabletemperature(ºC)			-18
Applicablevolume(m3)			21-32
Coolingcapacity	Environmental temperature	0ºC	-
		-18ºC	3200
Voltage(V)			DC12V(60A)
Current(A)			DC24V(35A)
compssor	Displacement(cc/r)		UPF170/TM16(172cc/r)
refrigerant			R404A
Refrigerantchargeamount(Kg)			3.0~3.2Kg
Dimensions(mm)	evaporator		1473×644×230
	Condensingutensil		1265×555×415

WehaveTechniqueParameterstable here,ifitdidn'tshow,youcancheckitbycomputer.
