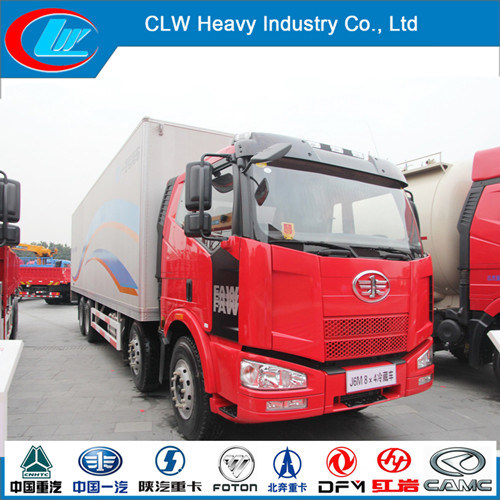

Faw 8*4 Refrigerated Truck Body

Ifyouareinterestedinthismodel,plsfeelfreetosendinquiry,andwewillalwaysbegladtoquote.
Contact with me!

SaleManager:AlbertDu
Mobile:0086-18660874450
0086-13872880263
Tel/Fax : 00862783796298


FAQ
1.Our price term:FOB Shanghai as common, other port is also acceptable.
2. Our Payment term:T/T, 30% deposit after order /confirm/iation, 70% balance should be paid before delivery.
3. Delivery time:the delivery time is 20-30 days as common, the exact delivery time depends on the order and the current production condition.

Packaging and shipping
1, Packaging: nude orwaxing;
2. Shipping: Ro-Ro ship or bulk ship according to the customer' order or requirement

company information
ClWHeavyIndustryCo.,Ltd
1.Competitive Price and Excellent Quality,
2.More than 10 years' experience as a manufacturer
3.CCC, ISO, BV certification
4.Perfect after-sale service
5.Export covering More than 50 countries and regions
6.Annual production value topped 1500, 000, 000 RMB (240, 000, 000 US dollars) per year
7.canproducewatertanktruck,fueltanktruck,bulkcementtruck,LPGTank,GarbageTruck,TowTruck,SewageVacuumTruck,AerialPlatform,ConcreteMixerTruck,RoadSweeperTruck,CargoCraneTruck,FirefightingTruck

Exporting
As Manufacturer, We Have Our Own License Of import And Export.We Have Successfully Exported ToGhana, Sudan, Nigeria, Angola, Tajikistan, Namibia, Burma, Korea, Iran, American, Afghanistan, Iraq AndOther Countries.

Contact with me!

SaleManager:AlbertDu
Mobile:0086-18660874450
0086-13872880263
Tel/Fax : 00862783796298

Website:truckcl.en.alibaba.com
Technique Paraments

Description	CA13108*4RefrigeratorTruck
DriveModel	8X4
Chassis	CA1310
VehicleMainDimensions	Dimensions(LxWxH)mm	12000*2550*4000
	Wheelbase(mm)	1950+4550+1350
	Overhang(front/rear)(mm)	1400/2750
	Wheeltrack(front/rear)(mm)	1950/1847
	Approach/Departureangle(°)	21/12
WeightinKGS	CurbWeight	13040
	GVW.	31000
Max.drivingspeed(km/h)		102
Engine	Model	CA6DL1-26E4
	Type	4-strokedirectinjection,6-cylinderin-linewithwatercooling,turbo-chargingandinter-cooling
	HorsePower(HP)	260HP
	Emissionstandard	EuroIV
Gearbox	9forwards&1reverse
Clutch	Reinforceddiaphragmclutch
SteeringGear	Powersteering,hydraulicsteeringwithpowerassistance
Fueltank(L)	300
Tire	11.00R2016PR,12pce+1
Brakes	dualcircuitcompssedairbrake
Van
Material	1.Fibersteeldoubledeck 2.with8CMthicknesspolyurethane 3.Fibersteel/Stainlesssteel/Colorplatecanbechoosen
TipperBoxDimension	9160*2350*2500mm
Thickness	10CM
Temperature	-18ºCor-5ºCasyourchoice

Truckrefrigerator

Unitmodel			F960
RefrigeratorType			HUATAI
Applicabletemperature(ºC)			-20ºC~25ºC
Applicablevolume(m3)			43~52
Coolingcapacity	Environmental temperature	0ºC	5200
		-18ºC	3600
Voltage(V)			12V/24V
Current(A)			68A/50A
compssor	Displacement(cc/r)		330
Dimensions(mm)	evaporator		1700x644x250
	Condensingutensil		1560x555x477
Weight(KG)	evaporator		20
	Condensingutensil		32
Remark	Optionaltoinstallfor380vstoreelectricpower

WehaveTechniqueParameterstable here,ifitdidn'tshow,youcancheckitbycomputer.
