TruckModel | ZZ1257N3647B, Left hand drive/Right Hand Drive model | |
TruckBrand | SINOTRUK-HOWO | |
Dimension(LxWxH) | 8145x2496x3386 | |
Cargobodysize(L*W*H,mm) | 5400x2300x1400 | |
Containerthickness(mm) | bottom:8mm,side:4mm | |
Approachingangle/Departureangle(°) | 19/26 | |
Overhang(front/rear)(mm) | 1500/1739 | |
Wheelbase(mm) | 3625+1350 | |
Maxspeed(km/h) | 75 | |
Curbweight(kg) | 11290 | |
LoadingWeight(kg) | 25000 | |
Fuel Tanker | 300Lwithlockingfuelcap | |
Fuelconsumption(L/100km) | 32 | |
Clutch | Single-platedryclutchΦ430mm | |
Engine | Model | WD615.62,4-strokedirectinjectiondiesel engine,6cylindersinlinewithwatercooling, |
HorsePower, | 266HP | |
EmissionStandard | EUROII | |
Transmission | Model | HW19710,10forwardsand2reverse |
Brakesystem | Servicebrake | Dualcircuitcompssedairbrake |
Parkingbrake | springenergy,compssedairoperatingon rearwheels | |
Auxiliarybrake | Engineexhaustbrake | |
Steeringsystem | Model | ZF8098/ZF8118 hydraulicsteeringwithpowerassistance |
Frontaxle | HF9 | |
Rearaxle | HC16 | |
Tire | 12.00R20 | |
Electricalsystem | Operatingvoltage | 24V,negativegrounded |
Starter | 24V,7.35KW | |
Alternator | 28V,1500W | |
Batteries | 2*12V.165Ah | |

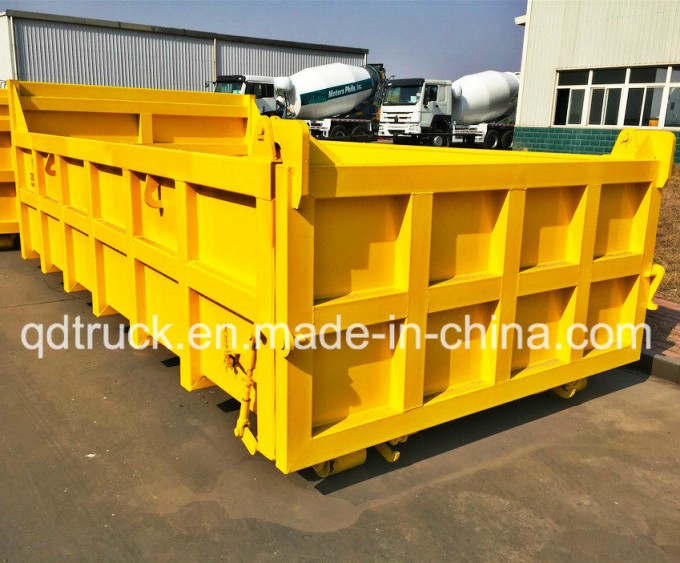

**The products are mainly used for transfer of level direct pssure transfer station or integral rubbish compss box, also can be connected with other garbage boxes for transferring.
Standard in-cab manual controls which allow for pcise metering of the manual hydraulic valve.
**Patented dump/load interface
Hydraulic locks to pvent cylinder movement in case of pssure loss
Mechanical rear body tie-down latches
**Resettable dump/tilt tabs
Hydraulic rotary valve to pvent front tilt movement when the dump frame is raised
**Full length dump frame with front saddles to support the body during the dump mode
**Grease zerks at all pin points to allow purging of contaminates
**Greaseable load rollers
Stainless steel pins used throughout
Two-part polyurethane enamel
The followed parameters is for small garbage truck.
| Item | Unit | Parameter | |
| Vehiclemodel | HTC5073ZXXB4 | ||
| Chassismodel | CA1073 | ||
| Overalldimensions | mm | 5050,4800,4600×1880×2280,2180 | |
| Grossweight | kg | 4495 | |
| Curbweight | 2300 | ||
| Payloadcapacity | 2000,2065 | ||
| Axleload | 1700/2795 | ||
| Wheelbase | mm | 3050,2850,2800,2600 | |
| Front/Reartrackbase | 1415,1510/1435 | ||
| Front/Rearoverhang | 1100/900,1100/850 | ||
| Approach/Departureangle | ° | 23/28,23/27 | |
| Exhaust/Power | ml/hp | 2545/95 | |
| Maxspeed | km/h | 95 | |
| Emissionstandard | Euro 2,3,4,5 | ||
| Enginemodel | CA498E3-12, CUMMINS ISF3141.38 | Electricsystem | 24V |
| Tractionsystem | 4×2 | Numberofaxles | 2 |
| Tirespecifications | 7.50-15,7.50R15,7.00-16,7.00R16 | Numberoftires | 6 |
| Operationcontrolsystem | Electricallyhydrauliccontrol | Allowablepassengersincab | 3,2 |
| Enginemanufacturer | FAW | ||
| Productioncycle | 15-25 workingdays | ||
| warranty | 12month,fromthedateofsupply | ||
