Brand New FAW Heavy Wrecker Truck

Company information:
We're one professional manufacturer which refitting special truck and trailer in China,established in 1969, more than 40 yrs producing experience, a growing enterprise with endless innovations and development.Our corporation mainly specializes in the various semi trailers and special vehicle related business, such as dump truck, tanker trailer, concrete mixer truck, and etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for axles and hydraulic cylinders. We'reone of the earliest company to get the approval of the ISO, CCC and Compulsory Product Certification Enterprises.We have exported more than 30 countries from 2005.Looking forward to your visiting or calling.


We keep good relations with main truck manufactrers in China. And we can supply all brands dump truck made in China. HOWO, SHACMAN, BEIBEN, DONGFENG, SINOTRUK, BEIBEN, FOTON, C&C, and so on. More details for these trucks, feel free to contact us please.

Wrecker Truck, Recovery Vehicle, Breakdown Truck, Tow Truck Wrecker, Heavy Duty Wrecker Truck, Heavy Duty Tow Truck Wrecker, Recovery Truck, wrecker, heavy truck

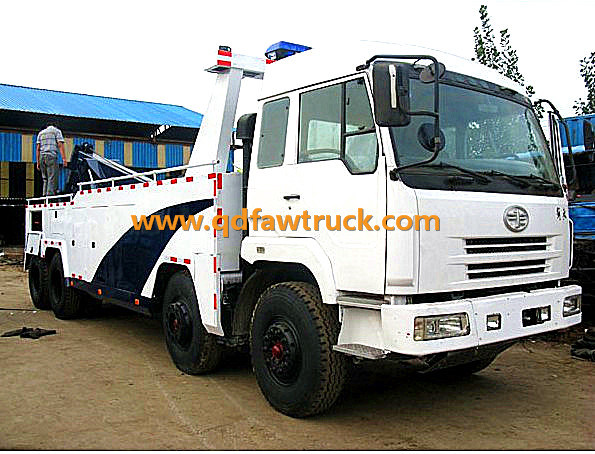

FAW Heavy Wrecker Truck
Wrecker Model: HTC5381TQZCZ
Chassis Model: CA1310P1K2T4
Engine Model: WD615.95 WD615.96
WD615.95E WD615.96E
Kw/HP Power: 247, 276, 247, 276
Outline Dimension(LxWxH) mm : 11210, 11235x2496x3820
Wheel base mm: 1800+4600+1350
Track(front/rear)mm: 2022/1830 2041/1830
No. Of Tire: 12
Tire Specification : 12.00-20
Approach Angle/Departure Angle: 16° /16°
Front Overhang/Rear Overhang mm: 1500/1960

Free loading: Reorganize and outfit quality Kg27870
Boom: Max. Lifting mass Kg: 50000
Extension Stroke mm: 6000
Max. Lifting Height mm: 12500
Max. Inclination Angle: 60°
Rotating Angle: 360°
Range of Inclination Angle: 0~60°
Underlift : Original Lifting Mass Kg: 25000
Rating Lifting Mass Kg: 12500

Rating Lifting Mass Fully Extended Kg: 7800
Max. Effective Length mm: 3390
Extension Stroke mm: 1850
Range of Inclination Angle: -9° ~93°
Folding Angle: 102°
Outriggers:
Longitudinal Span between Front Outrigger and Rear Outrigger (mm): 7765
Transverse Span of Front Outriggers (mm): 6300
Transverse Span of Rear Outriggers: 4320
Rating Towing Mass Kg: 55000
Rating Pulling Power of Winch KN: 2× 250
Length of Cable Wire m: 50

Q: What's the brand of your truck?

A: Our brand is FAW, First Automobile Works is the biggest truck manufacture in China, our products cover all series such as tractor truck, tipper truck, cargo truck, and other special trucks.

Q: How can we trust your company?

A: We are the official authority company by FAW Qingdao Automobile Company. And we are registered in the Commercial Department of China, with the whole qualification for exporting, you would feel relax and safe to do business with us. We are your reliable partner.

Q: Can u provide the ISO9001 certificate or some others related?

A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.

Q: How about warranty item?

A: We could support u original spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.

USA Wrecker truck technique.
Welcome to Qingdao and visit our factory!

WreckerModel	HTC5381TQZCZ
ChassisModel	CA1310P1K2T4
EngineModel	WD615.95WD615.96
WD615.95EWD615.96E
Kw/HPPower	247,276,247,276
OutlineDimension(LxWxH)mm	11210,11235x2496x3820
Wheelbasemm	1800+4600+1350
Track(front/rear)mm	2022/18302041/1830
No.OfTire	12
TireSpecification	12.00-20
ApproachAngle/DepartureAngle	16°/16°
FrontOverhang/RearOverhangmm	1500/1960
Freeloading	:ReorganizeandoutfitqualityKg	27870
Boom	:Max.LiftingmassKg	50000
	:ExtensionStrokemm	6000
	:Max.LiftingHeightmm	12500
	:Max.InclinationAngle	60°
	:RotatingAngle	360°
	:RangeofInclinationAngle	0~60°
Underlift	:OriginalLiftingMassKg	25000
	:RatingLiftingMassKg	12500
RatingLiftingMassFullyExtendedKg	7800
Max.EffectiveLengthmm	3390
ExtensionStrokemm	1850
RangeofInclinationAngle	-9°~93°
FoldingAngle	102°
Outriggers	:LongitudinalSpanbetweenFrontOutriggerandRearOutrigger(mm)	7765
TransverseSpanofFrontOutriggers(mm)	6300
TransverseSpanofRearOutriggers	4320
RatingTowingMassKg	55000
RatingPullingPowerofWinchKN	2×250
LengthofCableWirem	50
