Wheel Rim for Truck Rollforming Machine Production Line

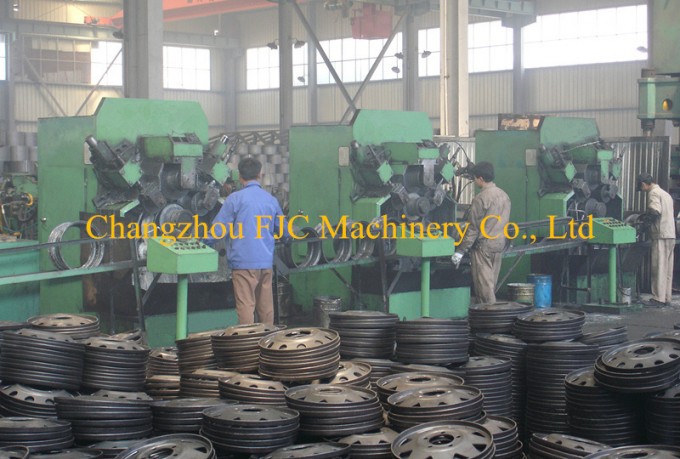

Wheel Rim Rollforming Machine Production Line

Brief Introduction:
Wheel manufacturing processes and machines production line, this design project matches the following completely of process range and 5° DC& 15° DC tubeless wheel series manufacture in accord with ETREO-2010/TRA-2010/JATMA-2010 standard. Which are designed and manufactured by our rich experience.





Application:


The line is mainly made up of three kinds of machines:
* Horizontal Flare Press
* Roll Former(I/II/III)
* Horizontal Expander
Of course, the machines could add or reduce accroding to your requirement.

Roll Forming Machine Main Technical Data
Rim Diameter	13-18''	17.5-38''
Rim Width	3-8''	7.5-20''
Main Shaft Mould Diameter	¢135mm	¢200mm
Main Shaft Mould Length	400mm	500mm
Roller Quantity	2	2
Oriented Wheel Quantity	2	2
Main Shaft Rolling Speed	0-250 rpm	0-250 rpm
Two Main Shafts Center Max Distance	400mm	462mm
Two Main Shafts Center Min Distance	260mm	362mm
Two Main Shaft Inclination Angle Adjustable Range	0~1.5°	0~1.5°
Under Main Shaft Axial Adjustable Range	±2mm	±2mm
Main Shaft Torque	3800N.M	8050N.M
Under Main Shaft Rising Force	20000Kg	30000Kg
Under Main Shaft Speed	≤100mm/s	≤100mm/s
Whole Motor Power	64KW	117.5KW
Outside Dimension	2000x26000x1550	2000x26000x2400
Weight	about 8000Kg	about 10000Kg

Welcome to inquire us at any time, we will reply you soonest!
