Detailed Description
1. Do

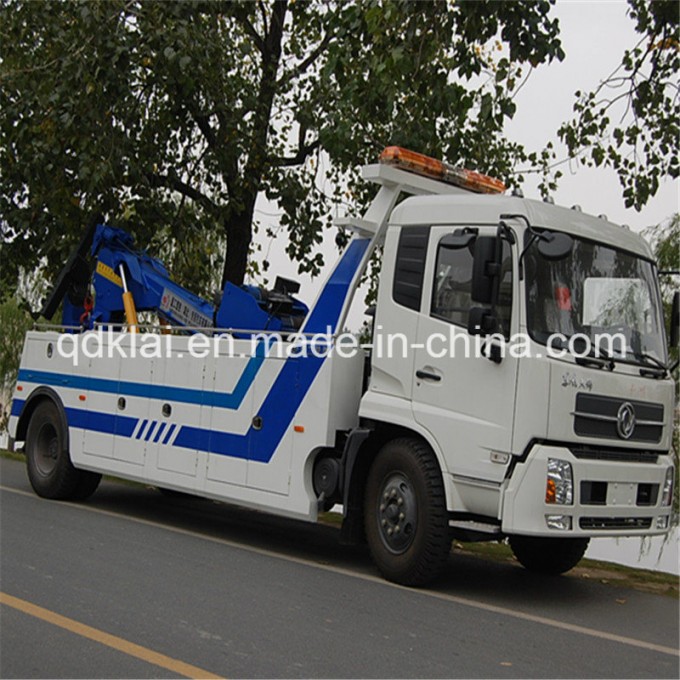

ngfeng Road Wrecker Truck for sales
2. Applied Cummins engine 185
3. Loading capacity 15T
4. Good quality and reaso
nable price
5. Timely delivery
| Items | Unit | Value |
| BoomStructure | Ratedliftingweight | kg | 4260 |
| Liftingweightoforiginalplace | kg | 6000 |
| Max.Liftingweightoffullextensionboom | kg | 3000 |
| Ratedtowingweight | kg | 14000 |
| Max.Designedtowingweight | kg | 25000 |
| Effectivelengthofboom | mm | 2848 |
| Extensiontravelingofboom | mm | 1300 |
| Foldingangleofboom | ° | 90 |
| UnderliftStructure | Max.Ratedhangingweight | kg | 6000 |
| Theheightfromhooktotheground | mm | 4847 |
| Extensiontravelingofliftingboom | mm | 1840 |
| Numbersofwinch | piece | 2 |
| Ratedpullingpowerofwinch | kg | 5000 |
| Min.Speedofsteelcable | m/min | 7 |
| Diameterofsteelcable | mm | 14 |
| Lengthofsteelcable | m | 30 |
| Rotationangle | ° | 37 |
Vehicle
Parameters | Externaldimension | mm | 8061×2470×3000 |
| Chassismodel |
| DFL1140B |
| Drive |
| 4×2 |
| Axlebase | mm | 5000 |
| Thewholeweightofemptyload | kg | 9545 |
| Loadoffrontaxleofemptyload | kg | 4405 |
| Loadofrearaxleofemptyload | kg | 5140 |
| Thewholeweightoffullload | kg | 14000 |
| Loadoffrontaxleoffullload | kg | 5000 |
| Loadofrearaxleoffullload | kg | 9000 |
| Wheelbase(front/rearaxle) | mm | 1880/1800 |
| Frontsuspension | mm | 1430 |
| Rearsuspension | mm | 1046 |
| Min.Turningdiameter | m | ≤19 |
| Max.Gradeability | % | ≥30 |
| Max.Speed | km/h | 90 |
| Approachangle | º | 20 |
| Departureangle | º | 18 |
| Min.Groundclearance | mm | 240 |
| Enginemodel | - | ISDe18530 |
| Engineemission | L | 6.7 |
| Ratedpower | kw/r/min | 136/2500 |
| Max.Torque | n@m/r/min | 700/1200~1700 |
| Fueltype |
| Diesel |
| Tiresize |
| 9.00-20,9.00R20
10.00-20,10.00R20 |
| Persons |
| 3 |
| OptionalEngine | Enginemodel |
| ISDe18030 |
| Ratedpower | kw | 132 |
| Engineemission | ml | 4500 |
| Enginemodel |
| ISDe21030 |
| Ratedpower | kw | 155 |
| Engineemission | ml | 6700 |
