Nylon Hose Air Brake Rubber Hose Assembly

Nylon hose air brake rubber hose assembly

Brief introduction of air brake hose assembly applied to auto brake system

Application Environment	Sun, rain, snow, fog, wind, sand, dust erosion, salt spray, acid rain, dust
Construction	air brake hose
Application	Applied to auto brake system to convey air engine oil, water, kerosene oil, oxygen etc
Applicable Medium	Compssed air
Connection	Adopt crush or squash on rubber hose to realize permanent coupling
Fittings	Adding springs etc
Accreditation Standards	GB16897-2010,GB7128-2008

Technical parameters ofair brake hose

Accreditation Standards	TYPE	Size	(I.D)		(O.D)		Max W.P	Min B.P	Min B.P	W.T
			Min	Max	Min	Max
		(mm)	mm	mm	mm	mm	Mpa	Mpa	mm	Kg/m
GB16897-2010,GB7128-2008, SAE J1402	8*15	8	7.8	8.2	14.7	15.3	0.8	5.5	75	0.169
	10*17	10	9.8	10.2	16.7	17.3	0.8	10	90	0.201
	12*20	12	11.7	12.7	19.7	20.3	0.8	10	100	0.259
	13*23	13	12.7	13.3	22.3	23.1	0.8	10	100	0.356
	15*26	15	14.7	15.3	25.7	26.3	0.8	10	115	0.459

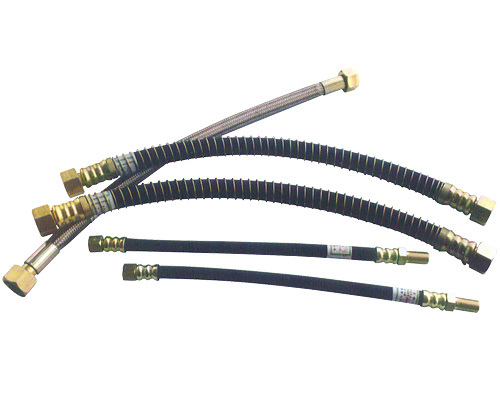

Prdouct Show ofair brake hose


Packaging:
* Generally: PVC bag in carton box with ORLETE logo
* Can be customized based on your requirements

Lead time:
* Fitting: common fitting within 30 days; special fitting within 40 days.
* Brake hose: within 20 days.
* Brake hose assembly: within 40 days.

Please noted: exact lead time is based on the order details.

Shipping:
* about 30 minutes from our factory to Longtan port (Nanjing port)
* Nanjing Lukou Airport is only about 40 minutes away
* conveniently by air or by ocean

Why Choose Us?
· Established in 1949, with over 65 years history
· China's leading manufacturer of auto brake hoses & assemblies
· 550employees with bachelor, master and doctoral degree
· With over 60 patents
· With certifications of ISO9001, TS16949, CCC, CRCC, IRIS, SGS, etc
· Our brake hoses are used on China leader's personal car

How to select rubber hose?
1. Internal working medium of rubber hose: compssed air, water, engine oil, speed changing box oil, steam, etc.
2. Working temperature: including working medium temperature, surronding environment temperature.
3. Working pssure: normal operating pssure, max working pssure; to decide pulsating pssure and pulsating frequency, etc.
4. Working environment: if there is bending of rubber hose? What's the bending degree? If there is friction with car body?
5. Special requirements: including insulating property, electrical conductivity, flame retardant property, color appearance, etc

We Also Produce:
Automobile Category:
· Auto brake hose & assembly
· Air conditioner hose & assembly
· Power steering hose & assembly
· Oil & water hose
· Rubber hose oil seal
· O-ring

Railway Category:
· Brake hose assembly
· General air hose assembly
· Average hose assembly
· High-speed EMU rubber hose & assembly
· Urban vehicle brake hose assembly
· Railway bearing oil seal
· Rail vehicle elastic side bearing
· Axial rubber gasket

Other Products:
· Gas rubber hose
· Engineering hose & assembly
· Other rubber hoses


Brief Introduction of Us:
Nanjing Orientleader Technology Co., Ltd. (ORLETE) is originally known as Nanjing 7425 Rubber & Plastic Co., Ltd., founded in April 1949 with Mr Ju Jianhong as the legal repsentative while controlled by China National Chemical Corporation. Our company located at No.7 Maigaoqiao Pioneer Park, Qixia District, Nanjing, China.

As a digital enterprise specialized in rubber products R&D as well as high-end products manufacturing, so far we're China largest R&D and production base of auto brake hose, and also the designated R&D center of railway rubber products for China Railway Corporation. "ORLETE" and "7425" brand have a considerable reputation and credibility with exports to America, Japan and Southeast Asia, etc.


Our Workshop:



FAQ:
Q1: What kind of rubber hose that you produce?
A:
· Rubber brake hose
· EPDM brake hose
· Hydraulic brake hose
· Hydraulic hose
· Water hose
· Fuel& oil hose
· Brake hose
· Stem hose
· SAE J1401 brake hose
· DOT 1/8" brake hose
· OE No. brake hose
· Flexible brake hose
· Performance competition brake hose...

Q2: What size of brake hose can you supply?
A: Common size: 3.2x10.5mm (1/8"); 4.8x12.5mm (3/16")
Special size: 3.2x11mm...or your request size

Q3: Can you print the words (line) according to our requirements?
A: Yes, we can provide embossed and printing mark with different colors based on your requirements.

Q4: What kinds of fittings can you produce?
A: Various kinds. Female fitting, male fitting, banjo fitting, adepter brake hose fitting, bolts and nuts, steel with zinc , chrome, nickel...stainless steel, brass...

Q5: How many types of brake hose do you produce?
A: Brake hose, Teflon braided brake hose, PTFE stainless steel braided brake line, Steel tube, Bundy tube, Steel tube assembly, Brake hose assembly...

Q6: What is my order's delivery date?
A: It usually takes 5-40 days, which depends on the order quantity.
