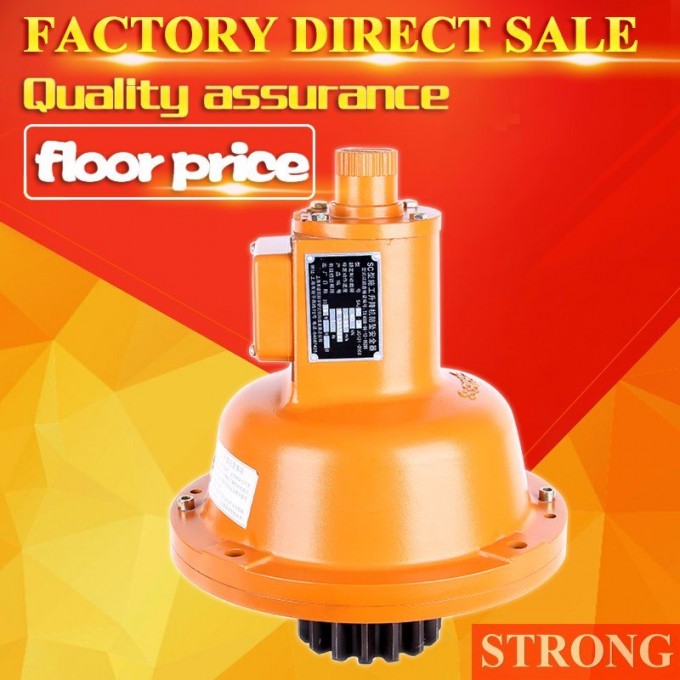

Anti Fall Safety Brake for Construction Building Elevator

Construction hoist elevator safety devicesSAJ30 40 50 60

SAJ serials pinion and cone progressive safety device is the most important safety device in the pinion and rack builders hoist, which can pvent the cage running over speed, and effectively reduce the cage dropping accident.

The safety devices developed by Shanghai Research Institute of Building Sciences has passed through the evaluation psided by the Ministry of Construction in 1989. The specialists at the meeting made a high appraisal of reasonable compact structure, stable action speed, highly accurate calibration, safe and reliable, braking smoothly and light weight etc. features of the safety devices.

The devices was recommended as hightech products developed in National Eighth Five Year Plan by the Ministry ofConstruction, and also won the Shanghai excellent new product prize.

Characteristics		Model	RatedLoading	LiftingSpeed	MotorPower
Double Cabin	Low-speed	SC200/200D	2×2000kg	0-33m/min	2×(3×11kw)
		SC100/100D	2×1000kg	0-33m/min	2×(2×11kw)
	Mid-speed	SC200/200Z	2×2000kg	0-55m/min	2×(2×11kw)
		SC100/100Z	2×1000kg	0-55m/min	2×(2×11kw)
Single Cabin	Low-speed	SC200D	2000kg	0-33m/min	3×11kw
		SC100D	1000kg	0-33m/min	2×11kw
	Mid-speed	SC200Z	2000kg	0-55m/min	2×11kw
		SC100Z	1000kg	0-55m/min	2×11kw

The anti-drop safety devcie is consistent with China National Standards; also reach Hong Kong COP Standards and Europe EN Standards.
SAJ40-1.2 is one of safety devices for SC200/200. Other safety device including:
Top and bottom limit, cage door electrical and mechanical interlock safety device, landing door electrica and mechanical interlock, anti-exceeding top device, safety hook, anti-overload device, etc.
SC200/200 construction lifting hoist:
1.Cage capacity: 2000kg
2.Lifting speed: 33m/min
3.Mast section: painted or hot galvanized
4.Height: customized
5.Cage size:3.0x1.5x2.2

Anti-drop safety device are including:
SAJ30-1.2, SAJ30-1.4;
SAJ40-1.2, SAJ40-1.4;
SAJ50-1.2, SAJ50-1.4
ETC.


Personnel and materialsconstruction building lifting equipment, construction tool equipment construction hoistof common models:

Characteristic	Model	RatedLoading	LiftingSpeed	MotorPower
Doublecabin	SC200/200	2×2000kg	33m/min	2×(3×11kw)
	SC150/150	2×1500kg	33m/min	2×(2×15kw)
	SC100/100	2×1000kg	33m/min	2×(2×11kw)
Singlecabin	SC200	2000kg	33m/min	3×11kw
	SC150	1500kg	33m/min	2×15kw
	SC100	1000kg	33m/min	2×11kw

Technical parameters

Model	Rated Load	Rated Speed	Calibration speed
SAJ08-1.0	0.8T	1.0m/s	Upon request
SAJ30-1.2	3.0T	1.2m/s	Upon request
SAJ30-1.4	3.0T	1.2m/s	Upon request
SAJ40-1.2A	4.0T	1.2m/s	Upon request
SAJ40-1.4	4.0T	1.4m/s	Upon request
SAJ40-2.0	4.0T	2.0m/s	Upon request
SAJ50-1.2	5.0T	1.2m/s	Upon request
SAJ50-2.0	5.0T	2.0m/s	Upon request
SAJ60-1.2	6.0T	1.2m/s	Upon request
SAJ60-2.0	6.0T	2.0m/s	Upon request
