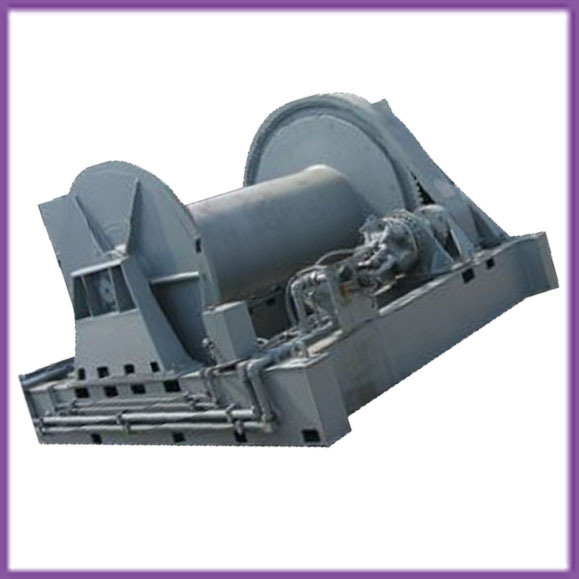

Hydraulic Winch & Hydraulic Windlass for Mooring Winch

Hydraulic winch
With Motor, Gearbox, Brake, Valve, etc;
Capacity 5T/ 10T/ 15T/ 20T,
Cable diameter 20MM/ 28MM/ 32MM,
Cable lenth 50M/ 100M/ 300M/ 500M,
Speed 40/ 20/ 10MPM,
Working pssure 200Bar/ 20Mpa/ 16.3Mpa


hydraulic winch & hydraualic windlass for mooring winch wincha lifting equipment driven and braked hydraulically. It has the advantages of compact structure, light weight, convenient operation and stable lifting. It isusinglift heavy things in mines, ports and construction site, and most of international certificate available.
.

Model		YJ3/110	YJ3/150	YJ5/100
Flow rating	L/min	120	120	120
	gpm	31.7	31.7	31.7
Pressure rating	MPa	16.6	16.6	16.6
	psi	2400	2400	2400
Pull rating	kN	3	3	5
	US ton	3.3	3.3	5.5
Average rope speed	m/min	23	27	11
	ft/min	73	89	36
Wire rope diameter	mm	12.7	15.5	20.5
	in	1/2	5/8	3/4
Rope storage	m	110	150	100
	ft	360	492	328
Size	mm	810*490*500	690*480*440	880*520*710
	in	32*19*20	27*19*18	35*21*28
Weight	kg	490	230	490
	lb	1080	507	1080

,,
