Home> Products> Truck Part>Truck Transmission> Three Wheels Battery Forklift 1.5-2.0ton with Mini Tips

Three Wheels Battery Forklift 1.5-2.0ton with Mini Tips

Categories: Truck Part , Truck Transmission

FOB Price:9999.00 USD /Unit

Minimum Order Quantity:1 Unit(s)

Supply Ability:75 Unit(s)

Payment Terms:L/C, T/T, D/P, Western

Contact Supplier

Company Profile

Anhui Royal Forklift Co., Ltd. Diamond member

1 YRS

Contact:MrLeoLiu

E-mail:

Fax:

Capital:US$ 0 Million

Employees: 1-49人 People

View the Seller's Store

product detalls

Detailed Description

MAIN SPECIFICATIONS
General	1	Manufacturer		RY						1
	2	Model		E16e	E18e	E20e	E20D			2
	3	Power Type		Electric			Electric			3
	4	Rated Load Capacity	kg	1600	1800	2000	2000			4
	5	Load Centre	mm	500			500			5
Characteristic &Dimension	6	Rated Lift Height	mm	3000			3000			6
	7	Free Lift Height	mm	150			150			7
	8	Tilting Angle (F/R, α°/β°)	Deg	5°/7°			5°/7°			8
	9	Height when Mast Lowered	mm	2015			2015			9
	10	Height to Safeguard	mm	2080			2080			10
	11	Min. Ground Clearance	mm	90			95			11
	12	Length (to Fork Face)	mm	2030	2030	2130	2245	1132	2080	12
	13	Width	mm	1066	1066	1140	1132			13
	14	Fork Size (L×W×T)	mm	920×100×35		1070x100x35		1070x100x35		14
	15	Fork Spad (Min./Max.)	mm	200/970				200/970		15
	16	Overhang Front	mm	415				415		16
	17	Overhang Rear	mm	200				300		17
	18	Min. Turning Radius	mm	1650	1650	1735		1852		18
	19	Height when Mast Lifted	mm	3945				3945		19
	20	Working Aisle Width with Pallet (Ast)*, 1000×1200 Crossways	mm	3300	3300	3438	3438			20
	21	Working Aisle Width with Pallet (Ast)*, 800×1200 Lengthways	mm	3400	3400	3563	3563			21
Performance	22	Travel Speed (Full Load)	km/h	12		11		11		22
	23	Travel Speed (No Load)	km/h	13		12		12		23
	24	Lifting Speed (Full Load)	mm/s	300	290	280		280		24
	25	Lifting Speed (No Load)	mm/s	400				400		25
	26	Gradeability (Full Load)	%	15				15		26
	27	Gradeability (No Load)	%	15				15		27
	28	Service Brake (Operation/Control)		Foot/Powershift			/ Foot/Powershift			28
	29	Parking Brake (Operation/Control)		Electric			Electric			29
Chassis	30	Tyre (FrontX2)		18*7-8		200/50-10		200/50-10		30
	31	Tyre (RearX2)		15*4.5-8		16x6-8		16x6-8		31
	32	Tread (Front)	mm	912	912	940		922		32
	33	Tread (Rear)	mm	185			890			33
	34	Wheelbase	mm	1420	1420	1535		1500		34
Weight	35	Total Weight (Include Battery Box)	kg	3100	3250	3400		3750		35
	36	Front Axle Weight Distribution (Full Load)	kg	4025	4370	4692				36
	37	Rear Axle Weight Distribution (Full Load)	kg	575	530	558				37
	38	Front Axle Weight Distribution (No Load)	kg	1410	1425	1520				38
	39	Rear Axle Weight Distribution (No Load)	kg	1590	1675	1730				39
Drive	40	Drive Motor	kw	4.5*2				4.5*2		40
	41	Pump Motor	kw	13				13		41
	42	Standard Battery	V/Ah	48/500	48/500	48/625		48/500		42
			kg	+/- 33kg				+/-33kg
	43	Controller Type		AC				AC		43
	44	Controller Manufacturer		ZAPI				ZAPI		44
	45	Operating Pressure for Attachment	Mpa	15		16.5		16.5		45

- Duplex/duplex full free/triplex mast
- Side shifter/fork positioner/rotator/paper roll clamps
- Removable wide view cabin/air conditioner/heater
- Solid tyre/no-marking solid tyre/super elastic tyre
For more information, please kindly contact us.

Main features:Our electic forklift are equipped with Germany Hawker battery and Chinese battery for you to choose from.Suspension cab for our forklift truck.300mm small steering wheel for our fork lift.Side battery design, change battery in one minute.Suspension pedal and hand brake with button. Three Wheels Battery Forklift 1.5-2.0ton with Mini Tips

Company Introduction 1.5 Ton Diesel Forklift with Japanese Engine

-- One of biggest forklift manufactuer in China;
-- Top 10 forklift exporting factory in China;
-- Specialized R&D Team, After-sales service Team;
-- Factory scale: 150,000 M3 (1st phase);
-- Production Capacity: 10,000 Units/Year;
-- Selling to more than 86 countries;
-- 54 offcial dealer in more than 40 countries: Germany, UK, Russia, Australia....
-- Take international market as development direction, more than 90% forklifts are exproted to world market.

FAQ

Q1. How is the warranty of your products.

A: We offer 2years warranty for the whole products, during the warranty time, we could provide spare parts for free under the condition of quality problem.But except some consumable parts.

Q2. What about the claim process and after-service?
A: We have professional technical team who can speak fluently English, French, Spanish, Russia, German,Portugueseto provide timely and accurate technical support to our customer.

Q3. What about the lead time?

A: Some model products have in stock, others nomal production time 4-5 weeks.

Q4. Do you have any MOQ limit for order?

A: Forklift 1units, Electric stacker/Pallet: 2units, manual equipment 20 ft container

Q5. Is it OK to print my logo on product or package?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6: What is your payment method?

A: In general,we accept 30% T/T deposit and balance payment before shipmeng.
But for big order,we can give the best payment method.

Company Information
Factory: Anhui Royal Forklift Co., Ltd.

Add:No.18,xingye Road,Baochanshan
Industrial Park,Ma'anshan City,
Anhui Province,P.R.China 238100

Marketing Center:Royal Forklift (Suzhou) Co., Ltd.

Add:E102, No. 388 Ruoshui Rd,Suzhou
Industrial Park,Suzhou,China 215123

To make agood cooperation with us?Please use contacts:

Tel: (86)512 65919665
Fax: (86)512-65915205
Mobile:86-15857987272

Product Image

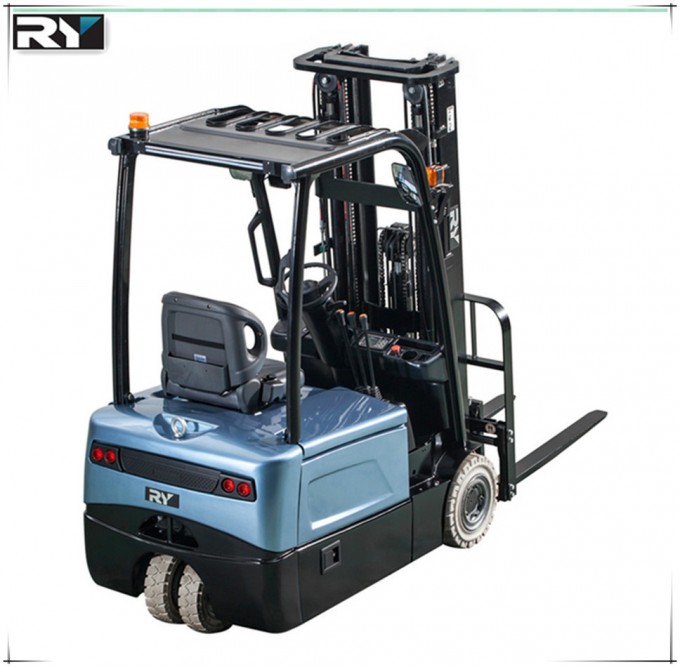

Three Wheels Battery Forklift 1.5-2.0ton with Mini Tips Image1
