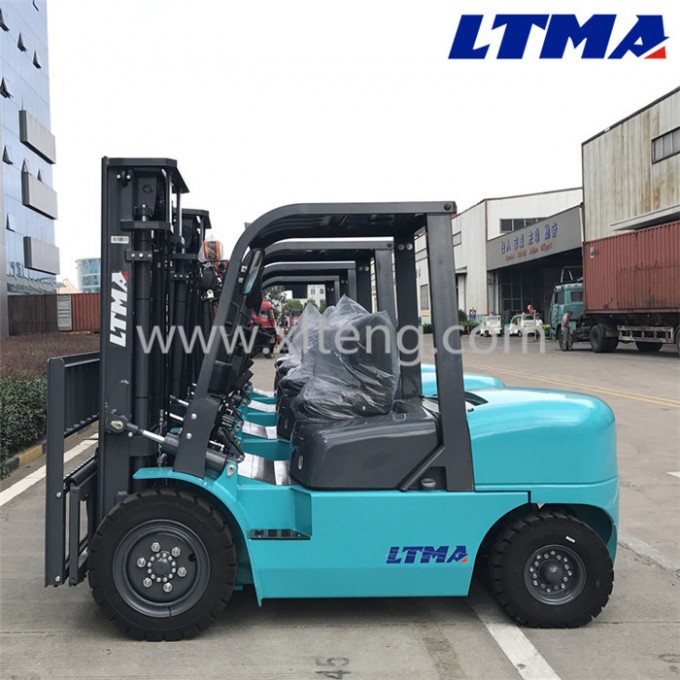

Mechanical Transmission 4 Ton Diesel Forklift with 2 Stage Mast

Mechanical Transmission 4 Ton Diesel Forklift With 2 Stage Mast



The specification of4 Ton Diesel Forklift

Manufacturer			LTMA
Model
		Manual shift T/M	FD40C
Load capacity		kg	4000
Load center		mm	500
Power unit			Diesel
Operator type			Driver/seat
Tire type			Pneumatic
Wheel	Front/rear		2/2
Max. lifting height		mm	3000
Free lift		mm	150
Fork size	L*W*T	mm	1070*150*50
Tilt range	Mast forward/backward	deg	6/12
Overall length(without fork)		mm	2870
Total width		mm	1365
Mast height (fork lowering)		mm	2150
Overall height fork raised	With backrest	mm	4250
Height to head guard		mm	2140
Turning radius(outside)		mm	2530
Front face of fork to front axle		mm	485
Min. right angle stacking aisle without load length&clearance		mm	2940
Speed	Max Travelling full/no load	km/h	16.5/18
	Lifting full/no load	mm/s	380/480
	Lowering full/no load	mm/s	450/420
Max.drawbar pull	Power shift T/M full/no load	kg	2200/1000
	Manual shift T/M full/no load	kg	2200/1000
Gradeability at 1.6km/h	Power shift T/M full/no load	%	18/20
	Manual shift T/M full/no load	%	18/20
Truck weight		kg	5050
Weight distribution	Full load front/rear	kg	7890/1140
	No load front/rear	kg	1810/3240
Tires	Number	front/rear	2/2
	Model	front axle	250-15-16PR
		rear axle	6.50-10-10PR
Wheelbase		mm	1800
Tread	Front/rear	mm	1120/970
Ground clearance	At lowest point(mast)	mm	120
	frame	mm	135
Brake	Service brake		Hydraulic-foot pedal
	Parking brake		Mechanical-hand lever
Battery	Voltage/capacity	V/AH	12/80
Engine	Model		ISUZU 4JG2
	Rated power	kw/rpm	44.8/2450
	Rated torque	N.m/rpm	186/1800
	Number of cylinders		4
	Placement	L	3.059
	Fuel tank capacity	L	70
Transmission	Speed forward/backward	Manual shift T/M	2-2 manual shift T/M
Operating pssure	Hydraulic system pssure	kg/cm²	180

Product Features

1.Safe:
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device pvent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable:
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

Packaging & shipping


After sales service
LTMA always treat after-sale service more important than sale.
Nowadays more than 30 agents around the world can supply LTMA professional after-sale service.
All the product of LTMA supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please check our website and product certificate.




FAQ

1.What the Certificate do you have?
LTMA workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate.
Some of our products meets the EPA requirements.
LTMA neverrecruit Underage labor.

2.Can you customize and design as the clients' requirement?
LTMA will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1year or 2000 working hours whichever occurs first.
Details to see the LTMA warranty policy for each model.

4.Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5.What the payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.

6.What logistics ways we can work for shipment?
We can ship construction machinery by various transportation tools.
(1)For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
(2)For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
(3)For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.

7.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is from 7days to 90 days.
