Detailed Description
HOWO Heavy Wrecker Truck Removal Truck with 40ton lifting capacity
I---Detailed information
| General | |
| Truck Name | Wrecker Truck (haul and lifting is separated) |
| Drive Type | 8*4 |
| Overall Dimensions L*W*H(mm) | 11000x2500x3480 |
| Engine | |
| Engine Brand | SINOTRUK |
| Fuel Type | WD 615.69, Diesel |
| Power | 336HP/247KW |
| Emission Standard | Euro 2 |
| Displacement(ml) | 9726 |
| Engine Type | 6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling |
| Chassis | |
| Chassis Brand | SINOTRUK |
| Tire No. | 12 |
| Tire Specification | 12.00-20 bias tire |
| Wheelbase (mm) | 1800+4600+1350 |
| Axle No. | 4 |
| Gear Box | HOWO 12 speed forward with 2 reverse, manual |
| Brake | Air brake |
| Cab | Long cab with air conditional |
| Towing | |
| Type | Towing separation heavy wrecker |
| Max. towing weight | 50000kg |
| Max. lift weight | 25000kg |
| Max. towing weight (Arm stretched out all) | 9000Kg |
| Max. effective length of the bracket arm | 3410mm |
| Arm expansion stroke | 1780mm |
| Hoisting mechanism |
| Max. Lifting weight | 40000Kg |
| Max. lift height | 12000mm |
| Rotating degree | 360° Continuous rotary |
| Rated traction of winch (layer 1) | 20000*2KN |
| Wire rope length | 50m |
| Outrigger |
| Lateral span of front outrigger | 6588mm |
| Lateral span of rear outrigger | 4079mm |
| Longitudinal span of front and rear outrigger | 5700mm |
| Configuration | |
| 360º Rotating degree devises, Three type hexagon boom , three corbel , Split cargo box , one set of remote control device , three rear work light, 20000*2KN winch, 50m steel wire rope, one washing hand tank , five pairs of asked fork, one pair asked fork base, two pcs grabs, one Long line engineering lights (LED), one set of auxiliary lamp assembly, one set of Auxiliary brake pipe assembly |

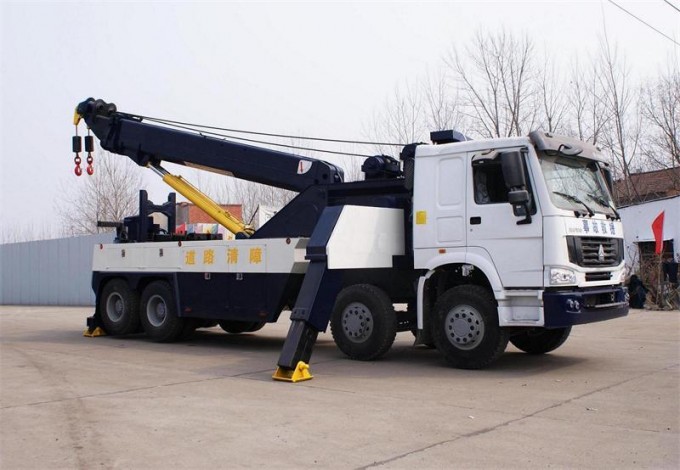

II---Pictures for reference
