Main specification | |||||||||

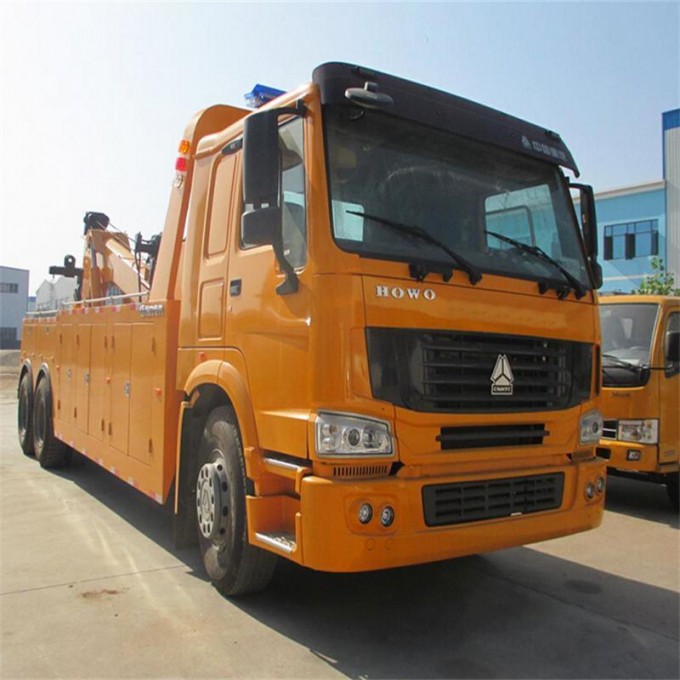

Product model and name | CSC5257TQZZT Wrecker truck | ||||||||
Gross weight(Kg) | 25000 | Drive type | 6X4 | ||||||
Curb weight(Kg) | 17400 | Overall dimension(mm) | 10555X2500x3060 | ||||||
Approach/departure angle(°) | 16/11 | Cab seats | 2 | ||||||
Axle No. | 3 | Front/rear hang(mm) | 1500/1880 | ||||||
Axle load(Kg) | 7000/18000 | Wheelbase(mm) | 5825+1350 | ||||||
Max speed(Km/h) | 90 | ||||||||
Chassis specification | |||||||||
Chassis model | ZZ1257M5847C | Manufacturer | China Sinotruk Group Jinan Truck Co.,Ltd | ||||||
Brand name | SINOTRUK HOWO | Dimension(mm) | 11700×2496×2958 | ||||||
Tyrespecification | 11.00-20 | TyreNo. | 10 | ||||||
Steel spring number | 10/12 | Front track base(mm) | 2022 | ||||||
Fuel type | Diesel | Rear track base(mm) | 1830 | ||||||
Emission standard | Euro 3 | Transmission | 10 forward gear,2 reverse gear(manual) | ||||||
Cab | HW76 flat top with air condition. | ||||||||
Engine model | Engine manufacturer | Displacement(ml) | Power(Kw) | ||||||
WD615.93E | China Heavy Duty Truck Group Co.,Ltd | 9726 | 213(290 HP) | ||||||
Performance | |||||||||
Lifting system | Max lifting capacity(kg) | 16000 | |||||||
Fully extended max lifting capacity(kg) | 7310 | ||||||||
Effective length of the bracket arm(mm) | 1460 to 3099 | ||||||||
Bracket arm flexible stroke(mm) | 1639 | ||||||||
Hoisting system | Max hoisting capacity(kg) | 18000 | |||||||
Farthest hoisting capacity(kg) | 8000 | ||||||||
Max hoisting height(mm) | 6500 | ||||||||
Winch | QTY(piece) | 2 | |||||||
Rated traction for each(kN) | 100 | ||||||||
Steel wire rope diameter(mm) | 18 | ||||||||
Steel wire rope length(m) | 45 | ||||||||
