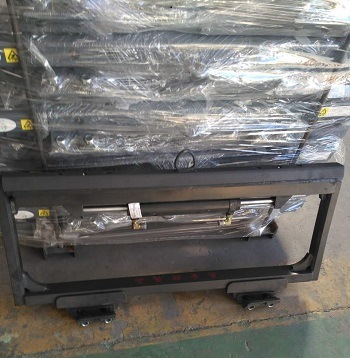

1100mm Long Side Shifter Used Together with Forks

1100mm long side shifter used together with forksside shifter

Product Description:

1.The introduction of side shifter

Side shifter is the most common attachment installed in forklift, allowing side shifting of100mmboth goods, facilitate the insertion and stacking of goods, thus greatly improves the flexibility and moving efficiency of the forklift. It is suitable for all kinds of working situations of forklift truck handling and stacking.

Specification:



(Note:it's only part of the specification, we could produce under customer's requirements)
Product Details:
Standard Side Shifter Mount:



Company Introduction:

1.1 Who We Are?
Laiwu Techence Foring (forklift forks) Co., Ltd plays adecisive role in forks &forklift attachments market in China which located in beautiful Aishan Industrial area, Gangcheng, Laiwu City, covers an area of 60, 000m2.

2 .What We Do?
We have been in forklift forks' market for over ten years.We have 3production lines with advanced manufacturing facilities, consummate production engineering and full-set testing equipment.We are able to produce over 300, 000 PCS of high quality forks annual.

3.. Features:
* Manufacturer
* 1-60 MT capability
* Delivery Date-3/7/20
* 11years of experience
* Customized size available
* OEM available

4. Main Customers
Heli
Tailift
Maximal
SANY
Shantui

6. Product List
1) The products include but not limited to:
Standard fork, high tonnage telescopic fork, 30-80MT integral port fork, sliding port fork, mining fork, fork-loader fork, farm fork, string bar fork, stone fork (Patent), lead screw adjustment fork, hydraulic adjustment fork, folding fork.
2) Forklift attachments:
Rotator, fork carrier, side shifter, fork extensions, etc.
3) Steel:
Channel steel of mast rail for forklift,

General
1.RawMaterial:Purchased fromentrusted supplier with thirdpartyinspection.
2.Experiencedtechniciansandworkerswithregulartrainingtokeepstablequality.
3.ISO2328andISO2330standardproductionprocessandfullyheat-treated.
4.3timesstaticoverloadtesting
Material:
Forkbodies: 15B37,33MnCrTiB,42CrMo,40Cr,35CrMo
Hanger:20Cr
Tube:20#
ChemicalComposition

Material No.	C%	Si%	Mn%	Cr%	Mo%
15B37	0.30~0.35	0.15~0.35	1.25~1.50	0.30~0.60
33MnCrTiB	0.30~0.35	0.15~0.35	1.25~1.50	0.30~0.60
40Cr	0.37~0.45	0.20~0.40	0.50~0.80	0.80~1.10
42CrMo	0.38~0.45	0.20~0.40	0.50~0.80	0.90~1.20	0.15~0.25
35CrMo	0.32~0.40	0.20~0.40	0.40~0.70	0.80~1.10	0.15~0.25
20Cr	0.17·0.24	0.17~0.37	0.50~0.80	0.70~1.0
20#	0.17~0.24	0.17~0.37	0.35~0.65	0.25

Welding: with Ar+CO2protection
MechanicalProperties:

Material No.	Yield Strength(σb)	Tensilestrength(σb)	Impact(-20°C-V)	Surfacehardness
15B37	≥784Mpa	≥931Mpa	≥27J	HB 285~363
33MnCrTiB	≥784Mpa	≥931Mpa	≥27J	HB 285~363
40Cr	≥785Mpa	≥981Mpa	≥27J	HB 285~363
42CrMo	≥932Mpa	≥1079Mpa	≥27J	HB 285~363
35CrMo	≥834Mpa	≥981Mpa	≥27J	HB 285~363

Crackdetectionmustbedoneforeveryforkaftershotblasting.
Producingstandard: ISO2328
Inspection standard:ISO2330/2002
Painting: Black or as requested.
Different type of forklift forks we could produce:
1) Standard I.T.A.Hook type
2) Shaft/pin/bar type
3) Heavy duty:10-60MT forks
