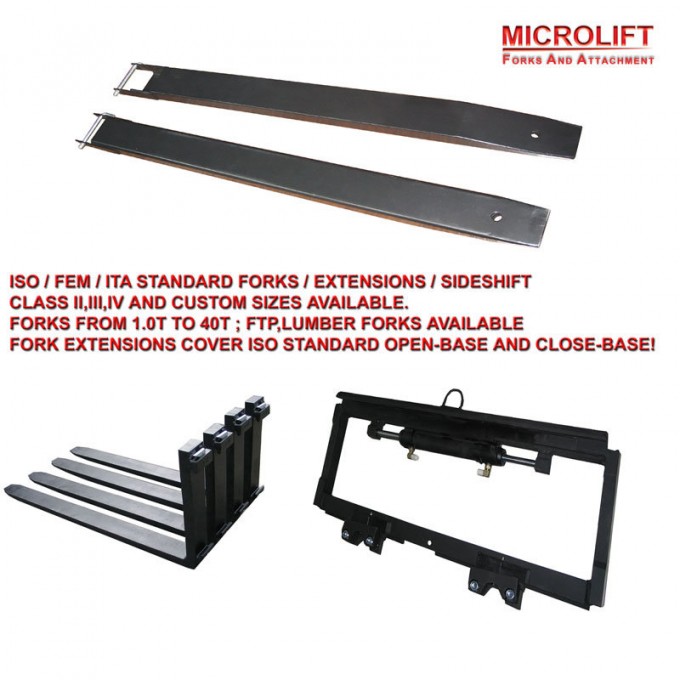

Side Shifter Used as Forklift Attachment

1. Big Range from 1ton to 10ton capacity, 800mm to 2400mm width, Class II to Class V.
2.2A-3A frame is made of Cold Extrusion Bar to ensure better finish and strength.
3.30% overload testing with 3 times moving speed to qualify the heavy-duty and impacking ability.
4.20, 000 times shifting test with overload pssure to prove non-leakage sealability.
5. High durability nylon pads with oil nipples and slots offer smooth move and long time use.
6. Very competitive cylinder, seal kits and nylon pads to save much service cost.
7. frame width available from 800mm-1750mm for 2A, 3A and 2400mm for 4A, 5A!
8.1 piece of truck auxiliary valve is necessary. 140bar≤ Working Pressure ≤ 180bar.
9. If not requested, Sideshifters are shipped without the backrest holes.
10. The sideshifter capacity is at 600mm load center.
11. Fitting Screw M14X1.5-74° (concave)(2A, 3A), M18X1.5-74° (concave)(4A, 5A);
Recommended Hydraulic Pipe internal diameter 8mm.

Capacity@Loadcenter	Model	Class	Sideshifting(S) (mm)	Carriagewidth (mm)	CGV (mm)	CGH (MM)	ET (mm)	Service Weight (kg52)
2500@600	SS-25M-A001	2	±100	970	230	25	60	52
2500@600	SS-25M-A002	2	±100	1000	230	25	60	54
2500@600	SS-25M-A003	2	±100	1020	230	25	60	55
2500@600	SS-25M-A004	2	±100	1040	230	25	60	56
2500@600	SS-25M-A005	2	±100	1100	230	25	60	59
3500@600	SS-35M-B001	3	±100	1100	300	26	66	73
3500@600	SS-35M-B002	3	±100	1150	300	26	66	75
4500@600	SS-50M-B001	3	±100	1200	300	33	66	93
4500@600	SS-50M-B002	3	±100	1380	300	33	66	100
4500@600	SS-50M-B003	3	±100	1535	300	33	66	110
6800@600	SS-70M-C001	4	±150	1200	442	45	90	258
6800@600	SS-70M-C002	4	±150	1350	442	45	90	285
6800@600	SS-70M-C003	4	±150	1535	442	45	90	325
6800@600	SS-70M-C004	4	±150	1845	442	45	90	395
9500@600	SS-100M-D001	5	±150	1800	500	52	110	560
9500@600	SS-100M-D002	5	±150	2000	500	52	110	595
9500@600	SS-100M-D003	5	±150	2200	500	52	110	630
9500@600	SS-100M-D004	5	±150	2400	500	52	110	670
