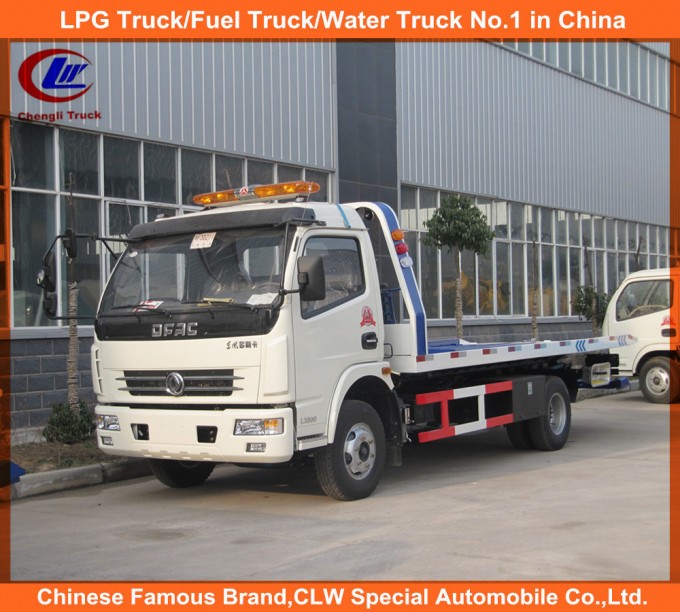

Dongfeng 4*2 flatbed Wrecker Trucks 6Wheel flatbed lorry trucks 3tons flatbed recovery trucks 5tons
Drive mode: 4*2 6*4 or 8*4
LHD or RHD
3tons 4tons 6tons 8tons 10tons 15tons 20tons 25tons pulling capacity
Technical parameter
| Description | Dongfeng One Carry Two Recovery Truck |
| Drive Model | 4x2 |
| Vehicle Main Dimensions | Dimensions(L xW xH)mm | 7420x2300X2540 |
| Wheel base (mm) | 3800 |
| Overhang (front/rear) (mm) | 1180/2440 |
| Wheel track (front/rear) (mm) | 1835/1640 |
| Approach/Departure angle(°) | 20/10 |
| Weight in KGS | Curb Weight | 5495 |
| GVW. | 7490 |
| Max. driving speed(km/h) | 90 |
| Engine | Model | CY4102 |
| Type | 4-stroke direct injection ,4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Horse Power(HP) | 120HP |
| Emission standard | Euro II |
| Gearbox | 5 forwards &1 reverse |
| Clutch | Reinforced diaphragm clutch |
| Steering Gear | Power steering, hydraulic steering with power assistance |
| Fuel tank (L) | 180 |
| Tire | 7.50R16 ,6pcs +1 spare tire |
| Brakes | Exhaust brake |
| UPPER |
| Platform Organ | LXW(mm) | 5400x2100 |
| Platform power stroke(mm) | 2680 |
| Min angle(°) | 7.6 |
| Max lifting capacity(kg) | 3000 |
| Winch rating pulling capacity(kg) | 4000 |
| Length of steel(m) | 21 |
| Hoisting Organ | Max under-hoisting capacity(mm) | 1300 |
| Rating under-hoisting capacity(mm) | 1005 |
| Fully extended max under-hoisting capacity(mm) | 700 |
| Rating under-pulling capacity(kg) | 5000 |
| Withauxiliarywheels, hooks, bundling belt, automatic sliding plate; |
Detailed pics
Company profile
Chengli Special Automobile Co., Ltdis aprofessio
nal manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5in China, excellent engineers and high-grade production equipment as well as stricted quality co
ntrol system can ensure all the tank from us run very well with 10-20 years use life.
Our main products:
1. Dump Truck /Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck /Fire Truck /Fire Vehicle /Fire Engine
3. Truck with crane /Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck /Fuel Tanker Truck
5. Water truck /Water Tank Truck /Water Sprinkler Truck
6. Co
ncrete Mixer Truck
7. Van truck /Insulated truck/ Refrigeration truck
8. Fecal suction truck /Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer (flat bed trailer /skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van co
ntainer trailer /warehouse trailer, etc. )
If you are interested in our trucks, pls contact me, Iwill send our best quotation to you.
Contact person: Krystal Zhang
Tel: +86-15171412234
