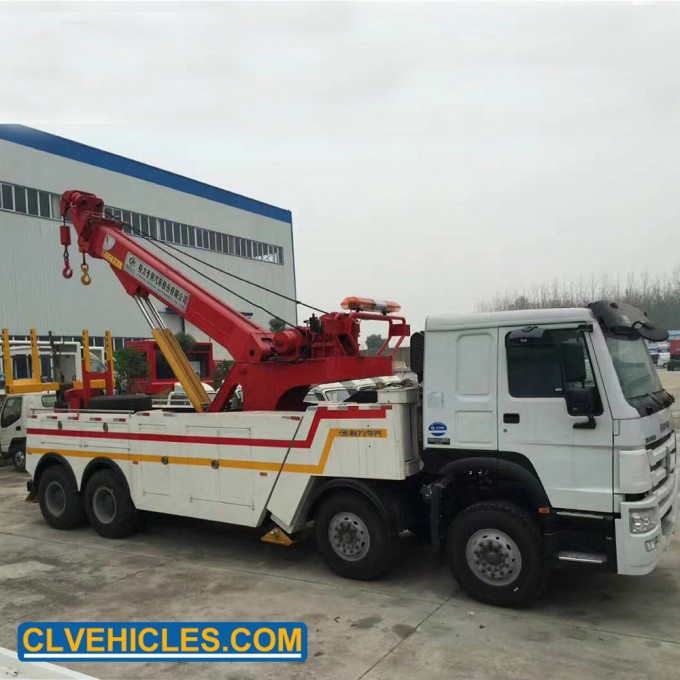

| General | Model | CLW5310TQZZ4 | |
| Overall Dimension | 11000×2500×3600 (mm) | ||
| GVW | 31000(kg) | ||
| Kerb Weight | 30000(kg) | ||
| Max Speed | 90km/h | ||
| Engine | Fuel Type | Diesel Oil | |
| Manufacturer | Sinotruk | ||
| Engine Model | WD615.47 / 371hp | ||
| Engine Type | Four-cylinder, in-line, water cooling, supercharging, DI, diesel engine | ||
| Displacement | 9.726L | ||
| Rated Power | 273KW | ||
| Emission Standard | Euro II | ||
| Chassis | Chassis Model/ Brand | HOWO | |
| Drive Type | 8*4 Left Hand Drive | ||
| Front Axle | HF9 | ||
| Rear Axle | HC16 | ||
| Wheelbase | 1800+4600+1350mm | ||
| Transmission | Mechanical manual transmission 8 Forward Speed, 1 Reverse |
||
| Tire Size/ Number | 12.00R20+1Spare Tire | ||
| Superstructure | Underlift structure | Fully retracted | 25000(kg) |
| Fully extended | 12500(kg) | ||
| Retracted length | 1900(mm) | ||
| Extended length | 3650(mm) | ||
| Working angle | -7 ~ +16 | ||
| Folded angle unload | -7 ~ +92 | ||
| Boom structure | Max. lifting capacity | 50000(kg) | |
| Extended lifting capacity (30°) | 7800(kg) | ||
| Extracted lifting capacity (30°) | 18000(kg) | ||
| Extracted boom length | 11880(mm) | ||
| Extended boom length | 5880(mm) | ||
| Max lifting height | 12300(mm) | ||
| Max. working radius | 10710(mm) | ||
| No. of arms | 3 | ||
| Working angle | 0~60 | ||
| Rotating angle | 720 | ||
| Winch | Quantity | 2 | |
| Max. pulling power | 20000kg *2 | ||
| Length of steel cable | 60m *2 | ||
| Diameter of the cable | Φ20 | ||
| Min. speed of winch | 5 (m/min) | ||
| Hydraulic Legs | Front leg type | H | |
| Rear leg type | L | ||
| Span of front legs | 6600(mm) | ||
| Span of rear legs | 4080(mm) | ||
| Span between front and rear legs | 5550(mm) | ||
| Equipped | Four sets of steel fork, a set of tow-fork sleeve, a set of steel plate hanging lug fork, a set of ABS device. A long warning light. Auxiliary light set, auxiliary pipe assembly , | ||
ChengLi Special Automobile Co.,Ltd, appointed by the Ministry of Industry and Information Technology of China, is one of the biggest special truck manufacturer in China.
1.We maintain a long and interactive cooperation relationship with our chassis suppliers, such as DONGFENG, FAW, SINOTRUK, FORLAND and etc;
2.Capacity of production of more than 300 kinds of special trucks and semi-trailers, higher standard is always what we pursuit;
3.Exportation to more than 68 countries, such as Africa, South-east Asia, Australia and etc, reliability and good quality are our key points to gain our customers' reputation.
Our Service
1. Special Truck Manufacturing: Dump Truck, Sewage Suction Truck, LED Advertising Truck, Ice Cream Truck, Refrigerator Truck ...
2. Pressure Vessel Manufacturing: LPG,Liquid Ammonia,Dimethyl ether,Isobutane,Propylene
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you receive the goods, test them, and give us a feedback.If you have any questions , contact with us, we will provide technique solutions for you.
