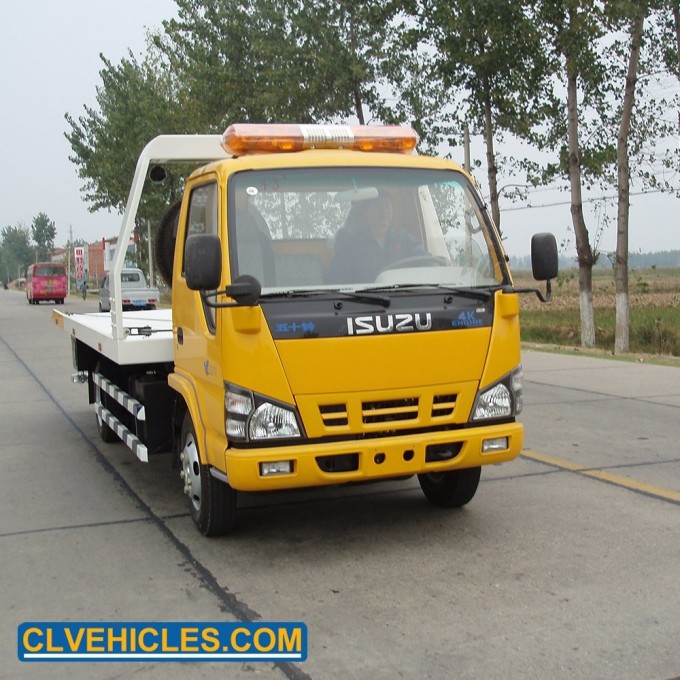

| Truck Specification | ||
| Truck model | CL5082TQD5 | |
| Cab | ISUZU 600P single row cabin | |
| Driving Type | 4*2 | |
| Max Speed (km/h) | 103 | |
| Overall dimension(mm) | 7305*2380*2250 | |
| Mass in working order( kg) | 4800 | |
| GVW( kg) | 7300 | |
| Wheelbase(mm) | 3815 | |
| F/R track base (mm) | 1504/1522 | |
| F/R overhang (mm) | 1015/2475 | |
| Approach/Departure Angel | 16/12 | |
| Tire | 7.00-16 | |
| Clutch | Single-plate dry diaphragm spring clutch | |
| Steering | Hydraulic steering with power assistance | |
| Gear box | MSB 5-speed gear box | |
| Bridge | Front axle | 2.5T |
| Rear axle | 4.8T | |
| Enging | Model | 4KH1-TCG40 |
| Horse power | 120HP | |
| Displacement | 2999L | |
| Braking system | Service Brake | Compressed air brake |
| Park Brake | Spring energy | |
| Eletric system | 24v | |
| Upper-Body specification | ||
| Hydraulic Under Lift at Rear | ||
| Max Lifting weight(kg) | 3000 | |
| Max. Rated towing weight(kg) | 5000 | |
| Max effective length of boom(mm) | 1700 | |
| Extension traveling of boom (mm) | 1340 | |
| Hydraulic winches & steel cables | ||
| Type: | Planetary type | |
| Quantity (set) | 1 | |
| Max. Pulling power of winch(kgs) | 4000 | |
| Length of steel cable(m) | 21 | |
| Speed of winch (m/min) | 3.23 | |
| Diameter of winch(cm) | 11 | |
| Back load platform | ||
| External dimension of platform (length×width)(mm) | 5600*2350 | |
| Max. Loading of platform(kgs) | 4000 | |
| Min. Elevation of full extending platform° | 10 | |
| Extension traveling of platform | 3000 | |
| Power take off | ||
| Type | PTO drive from transmission | |
| Wrecker Operation | ||
| Description | Panel board comprising joysticks and hydraulic meters installed in a suitable place out of crew cabin. | |
| Hydraulic System | ||
| Description | uitable capacity gear pumps for boom movement, telescoping cylinder, power steering and control valves & control system shall be with adequate size oil reservoir, integral oil cooler, valves etc. | |
| Safety Device | ||
| Auto brake for winch | Automatic safe brake in case winch / Engine fail. | |
| Hydraulic valves | Necessary hydraulic pressure relief & lock valve/ valves | |
ChengLi Special Automobile Co.,Ltd, appointed by the Ministry of Industry and Information Technology of China, is one of the biggest special truck manufacturer in China.
1.We maintain a long and interactive cooperation relationship with our chassis suppliers, such as DONGFENG, FAW, SINOTRUK, FORLAND and etc;
2.Capacity of production of more than 300 kinds of special trucks and semi-trailers, higher standard is always what we pursuit;
3.Exportation to more than 68 countries, such as Africa, South-east Asia, Australia and etc, reliability and good quality are our key points to gain our customers' reputation.
Our Service
1. Special Truck Manufacturing: Dump Truck, Sewage Suction Truck, LED Advertising Truck, Ice Cream Truck, Refrigerator Truck ...
2. Pressure Vessel Manufacturing: LPG,Liquid Ammonia,Dimethyl ether,Isobutane,Propylene
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you receive the goods, test them, and give us a feedback.If you have any questions , contact with us, we will provide technique solutions for you.
FAQ
Q1: What is your terms of payment?
A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF
Q3. How about your delivery time?
A: Generally, it will take about 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the customer’s requirements?
A: Yes, we can produce by your requirements or technical drawings.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
