Economic Type Medical Anesthesia Trolley

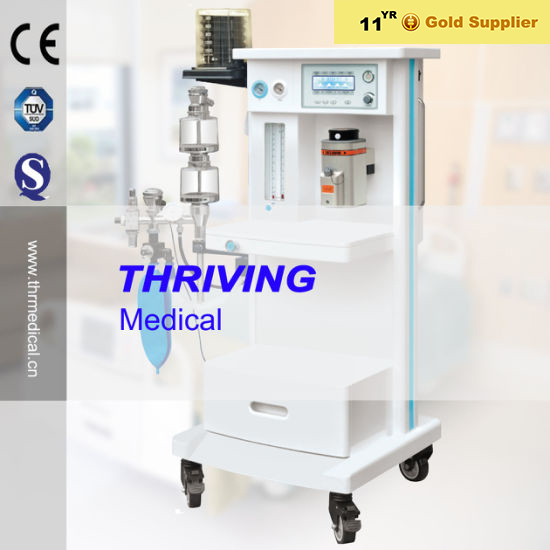

THR-MJ-560B1 Medical Anesthesia Trolley


Medical Anesthesia Trolley
-various evaporator
-Double-tube O2 flowmeter
-standard loop system
-screen display ventilator

Standard Configuration:
One High-pcision evaporator, either Halothane, Enflurane, Isoflurane or Sevoflurane configuration.
Double-tubes O2 flowmeter, standard loop system, ABS Engineered plastic frame, children or adult bellows, screen display ventilator (IPPV, MANUAL, ventilation volume, tidal volume, respiratory rate), real-time display of respiratory duct pssure, clear at one glance)

Optional: CO2 concentration monitoring

THR-MJ-560B1 is an economic type of anesthesia machine.
1) The high-pcision Vaporizer is designed with a stable concentration output, automatic compensation for pssure, temperature and flow rate. And it is available to choose one kind of gas from Halothane, Enflurane, Isoflurane, and Sevoflurane, ensuring a successful anesthesia operation.
2) Reliable pneumatic transmission system.
3) Economic and proper configuration of technologies, optional as required by the Customer.
4) Modularized design and upgrading. Upgrading is available as required by the Customer.


Part of Ventilator:
Display mode High-definition 4.8" LCD screen display
Ventilation mode IPPV, MANUAL (Manual monitoring of tidal volume, ventilation volume, respiratory rate)
Ventilation parametersTidal volume 50~1500ml
Rate 4~80 bpm
I: E 2: 1~1: 4
Pressure range 1.0~6.0 kPa
Parameters for ventilation monito ringtidal volume, ventilation volume, IPPV rate, I/E, peak pssure of airway, inspiratory trigger pssure, pssure - time waveform.


Security Alarm System
Airway pssure alarm upper limit setting range 1.0~6.0 kPa
Low limit setting range0.4~2.0 kPa
TV alarm upper limit setting range 0.5~2.0L
Low limit setting range 0.02~1.0L
Sustained high-pssure alarm it will give alarm when stress have consistently
Been higher than 2.5 kPa
Suffocation alarm it will give sound and light alarm if there is
No tidal volume input in 15s
Power alarm
Power AC 110-220V± 10% 50-60Hz± 1Hz

Part ofVentilator: Display mode	High-definition 4.8" LCD screen display
Ventilation mode	IPPV, MANUAL (Manual monitoring of tidal volume, ventilation volume, respiratory rate)
Ventilation parameters	Tidal volume 50~1500ml
	Rate 4~80 bpm
	I:E 2:1~1:4
	Pressure range 1.0~6.0 kPa
Parameters for ventilation monitoring	tidal volume, ventilation volume, IPPV rate, I/E, peak pssure of airway,inspiratory trigger pssure, pssure - time waveform.
Security Alarm System
Airway pssure alarm	upper limit setting range 1.0~6.0 kPa low limit setting range 0.4~2.0 kPa
TV alarm	upper limit setting range 0.5~2.0L low limit setting range 0.02~1.0L
Sustained high-pssure alarm	it will give alarm when stress have consistently been higher than 2.5 kPa
Suffocation alarm	it will give sound and light alarm if there is no tidal volume inputin 15s
Power alarm
Power	AC110-220V±10% 50-60Hz±1Hz
