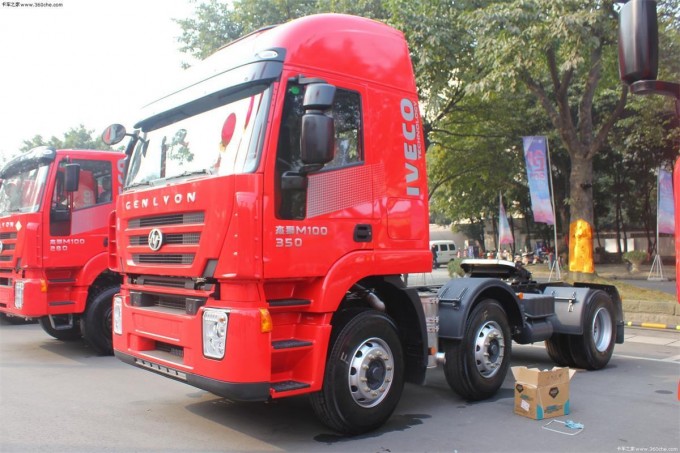

Iveco Tractor Head Truck Cursor Engine 430HP Tow Truck

IVECO Tractor Head Truck CURSOR engine 430hp Tow Truck
Tractiontype:6x4
Drivingtype:LHD(RHDisoptional)
Cabin:GENLYONcabwithlowroof,nosleeper.WithA/Candtravellingdatarecorder.Centrallocking.

Enginebrand:Cursor9seriesEUROIII
Enginemodel:F2CE0681B*B052
Enginetype:Diesel4-strokedirectinjectionengine,6-cylinderin-linewithwatercooling,turbo-charging&intercooling.Highpssurecommonrail.Electriccontrol.
Displacement:8.7liters
Max.output:380hp@2100rpm
Maxtorque:1500NM@1200-1600rpm
Bore/Stroke(mm):117/135
Weight:865KGS

Gearbox:Fuller12speeds(12JS160T)
Clutch:Φ430Diaphragmtype
Steering:ZFtechnology
Frontaxle:9tonsfrontaxle,drumbrake
Rearaxle:Steyr16Tstrengthenedaxle(punching-weldingaxlehousing,double
Reductiondrivingaxle,inter-wheeldifferentialanddifferentiallock)
Ratio=5.73
frame:865mmx317mmx(8+8)mm
Tyre:12.00-20(rim:8.5-20)biastire
Spring:3/4,3/12,8/12
Fuelconsumption(L/100km):38
Fueltankcapacity(L):400
Max.speed(km/h):80
Kerb.mass:11950kg
Totalmass:25000kg
Wheelbase(mm):3225+1350
Frontoverhang(mm):1435
Rearoverhang(mm):1536
Fronttrack(mm):2006
Reartrack(mm):1850/1850
Approachangle:25degree
Departureangle:20degree
Dimension(mm):7546x2500x3510
