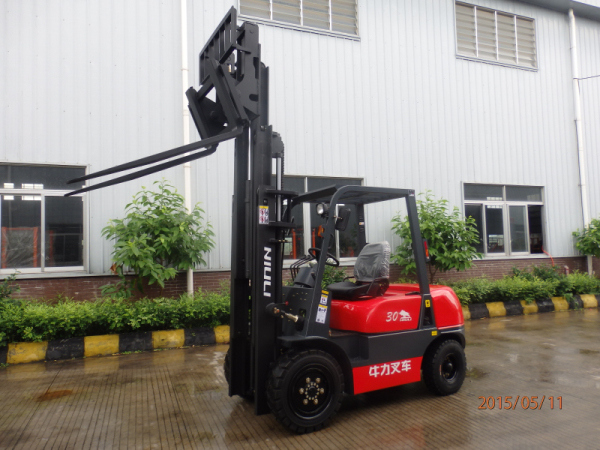

3 Ton Diesel Forklift Isuzu Engine with Tilting Fork

Features:

*Power transmission system, overhead guard and truck frame all use dual suspension structure, which can weaken the vibration transferred from power system wheel, control lever and seat, thus making the ooperator feel more confortable during operation.

*This forklift truck is designed with high definintion liquid crystal display device which not only provides convenience for operator to undersand the working condition of truck but also broadens the visual field of operator.

*This diesel forklift truck can be designed with two stage free lifting mast or three stage mast, luxurious and closed driving room, solid tire, sideshifter, roll clamps, clamp holder, and nonstandard forks ect, to meet your different needs.

General	1	Model					CPC30/CPCD30		CPC35/CPCD35
	2	Power Type					Diesel/GAS		Diesel/GAS
	3	Rated capacity				Kg	3000		3500
	4	Load center				mm	500		500
Charactertic&Dimension	5	Lifting height				mm	3000		3000
	6	Fork size				mm	1070*125*45		1070*125*45
	7		Mast Tilt Angle			Deg	6°/12°		6°/12°
	8		Front Overhang(Wheel center to fork face)			mm	500		500
	9	Ground Clearance(Bottom Of Mast)				mm	126		126
	10	Overall Dimension	Overall length(with/without fork)			mm	3790/2700		3980/2890
	11		Overall width			mm	1230		1230
	12		Mast lowered height			mm	2105		2105
	13		MastExtended height(with backrest)			mm	4110		4110
	14		Overhead guard height			mm	2140		2140
	15	Turning Radius(outside)				mm	2415		2640
	16	Min. intersecting aisle				mm	2500		2700
Performance	17	Speed	Travel(Full/Empty load)			km/h	18/19		18/19
	18		Lifting(Full/Empty load)			mm/s	460/540		360/440
	19	Max.Gradeability				%	20		20
Chassis	20	Tire	Front				28X9-15-12PR		28X9-15-12PR
	21		Rear				6.50-10-10PR		6.50-10-10PR
	22	Wheelbase				mm	1650		850
	23	Self Weight				kg	4280		4500
Power&Transmission	24	Battery	Voltage/Capacity			V/Ah	12/120		12/120
	25	Engine	Model				C240	C490BPG	QC495G	4JG2
	26		Manufacturer				ISUZU	Xinchang	QuanChai	ISUZU
	27		Rated output/r.p.m			kW/rpm	34.3/2500	40/2650	42/2650	44/2450
	28		Rated torque/r.p.m			Nm/rpm	137.7/1800	160/1800-2000	174/1980	186/1600-1800
	29		No. of cylinder				4	4	4	4
	30		Bore x Stroke			mm	86x102	90x105	95x105	95.4X107
	31		Displacement			cc	2369	2670	2980	3059
	32		Fuel Tank capacity			L	60	60	60	60
	33	Transmission	Type				Machanical/Hydraulic		Hydraulic
			Stage	FWD/RVS			1/1(2/2)/1/1		1/1(2/2)/1/1
	34	Operation Pressure for Attachment				Mpa	17.5		17.5
