I-Beam Drop Forged Overhead Conveyor Chain and Trolley for Conveyor System

I-beam monorail systems components.
RIVET LESS CHAIN, POWER & FREE TROLLEY, BEARING, "H" ATTACHMENTS

X348 63.5mm	1.35kgs
X458 81.00mm	2.70kgs
X458 104mm	2.90kgs
X678 88mm	3.20kgs
X678 101.60mm	7.80kgs

348 Trolley-63.5mm drop
Standard trolley has a rivetted 59mm diameter wheel. Which can be supplied with caged or full ball wheels, with or without dust cover, weight of two wheel trolley 1.35kg
458 Trolley-81.0mm drop
Standard trolley has a rivetted 80mm diameter wheel. Which can be supplied with caged or full ball wheels, with or without dust cover, weight of two wheel trolley 2.70kg
458 Trolley-104.0mm drop
Standard trolley has a rivetted 59mm diameter wheel. Which can be supplied with caged or full ball wheels, with or without dust cover., weight of two wheel trolley 2.90kg

678 Trolley(4"-6")-88.0mm drop
Standard trolley has a rivetted 59mm diameter wheel. Which can be supplied with caged or full ball wheels, with or without dust cover, weight of two wheel trolley 3.20kg
678 Trolley(6"-6")-101.6mm drop
Standard trolley has a rivetted 59mm diameter wheel. Which can be supplied with caged or full ball wheels, with or without dust cover, weight of two wheel trolley 7.8kg.

OverheadconveyorTrolley isused wildly in conveyor system.Such as automible factory,steel mill factory, sugar mill factory and so on. Our products are most competitive and are of high quality.Welcome to your inquiry

Available products:
1) Rivetless chain X228, X348, X458, 468, X678, 698, F100x16, F100x17, F160x24 drop forged
2) Relevant trolleys
3) Relevant wheels

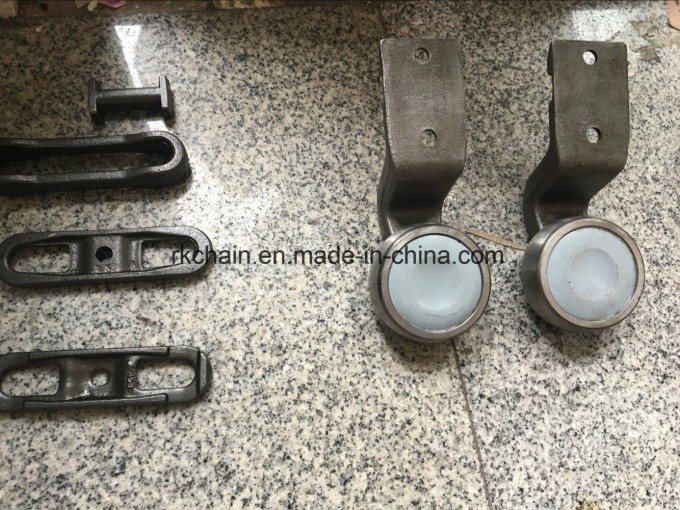

4) Samples or customer drawings are welcomeThe overhead conveyor components including drop forged rivetless chain, drop forged overhead trolley, caterpillar drive chain, trolley attachment, side link pusher dog, rollers turn roller, enclosed track chain, free carrier trolley and so on.
We can also supply other conveyor and transmission parts to fit our customer's specific needs, including conveyor chain, stainless steel chain, cast chain, drop forged scraper chain, forged loop chain, bi-planar conveyor chain, sprockets, bearings, forged gear, special shaft, outboard roller assembly, conveyor roller, special brass parts and so on.

Trolley parts, drop forged chains, forged product is used together with drop forged chain and most of our trolley are exported to Europe, North America.

Please feel free to contact with us and our goods are most competitive in your market.
