Detailed Description
Features:
* Adjustable to any beam width, simply by adjusting the number of collars.
* The wheels are made to fit any shape of beam
* High grade sealed ball bearings.
* With anti-drop plates.
* For geared trolley, the standard operating length is 3m, other length is available upon request.
| Capacity (t) | 0.5 | 1 | 2 | 3 | 5 | 10 | 20 |
| Test load (Kn) | 7.35 | 14.71 | 29.42 | 44.13 | 61.29 | 122.58 | 245.17 |
| Min radius of curve (m) | 1 | 1 | 1.1 | 1.3 | 1.4 | 1.7 | 2.8 |
| Dimensions (mm) | A | 248 | 286 | 396 | 540 | 451 | 480 | 537 |
| B | 184 | 220 | 254 | 299 | 326 | 389 | 574 |
| C | 198 | 237 | 283 | 341 | 395 | 500 | 622 |
| H | 113 | 134 | 138 | 186 | 220 | 285 | 315 |
| F | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| E Min. | 9 | 9 | 10 | 10 | 12 | 22 | 30 |
| I beam recommended (mm) | 64-152 | 64-203 | 88-203 | 102-203 | 114-203 | 125-203 | 136-203 |
| Net weight (kg) | 11 | 18 | 26 | 41 | 54 | 95 | 244 |
If you need more details or have any questions, please feel free to co
ntact us, we are more than pleased to do any help. Thanks!

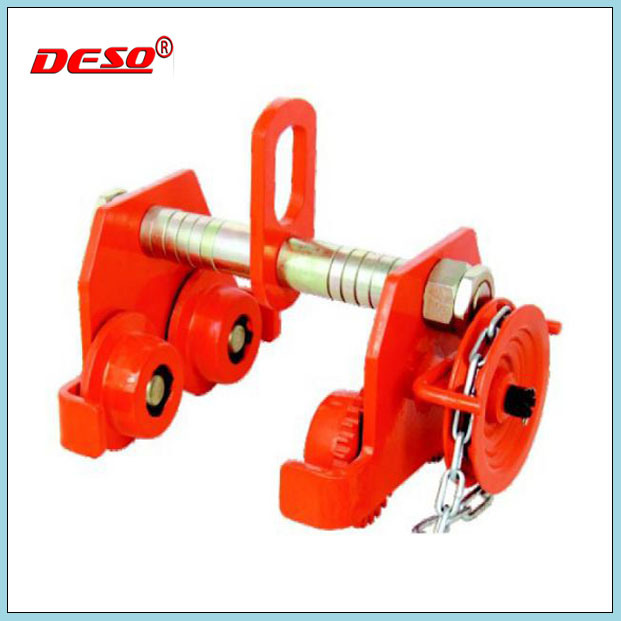

Product Image
