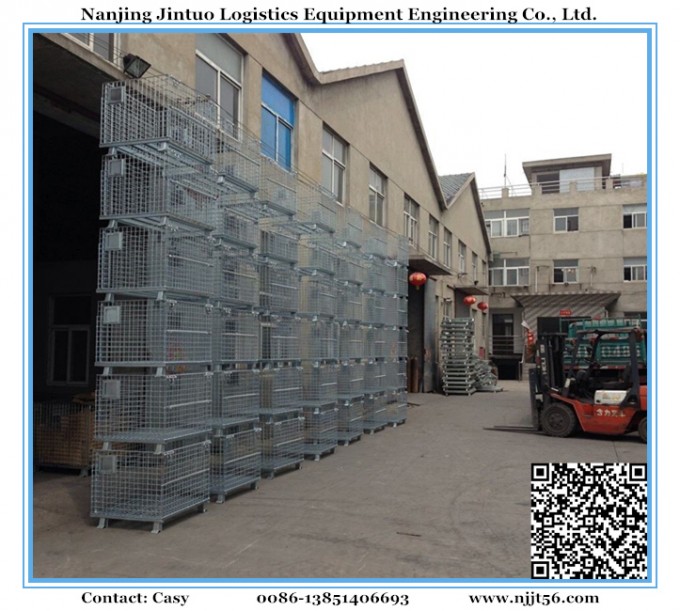

Warehouse Supermarket Logistics Transportation Roll Wire Mesh Container Trolley Cart

We are a factory in Nanjing City , in the position to supply a range ofSteel Collapsible Wire Mesh Container /Storage Box for Pallet Rackfor Warehouse Storagein a variety of sizes and capacities:

Features:
1. Wire container is made of strong steel, welded with Uchannel steel at the bottom to guarantee the load capacity;
2. Surface treatment: Galvanization; Bright and clean, corrosion resistance, long service life;
3. Wire container uses bolt structure, providing easy access to product even when they are stacked;
4. Stackable: Wire container can be stacked to 4layers, achieve three-dimensional storage; When not used, wire container can be collapsed and piled to save space;
5. With united specification and fixed capacity, it's convenient for identification of goods and inventory Count;
6. Casters can be equipped to make it convenient for move;
7. Cardboard, Wantong board or PP board can be equipped in the wire container to protect the surface of goods during storage and transportation;
8. Worked with hydraulic trucks, forklifts, elevators and other handling equipments, simple operation
9. Euro-style wire container is widely used in transportation, loading &unloading, storage and other logistics links, low cost and high efficiency.

Main oversea marketing for your reference
USA,Canada,Japan,Australia,New Zealand,South Korea,United Kingdom, Spain,
Germany, Bulgaria,France,Portugal,Italy,Southfield,Turkey,Singapore, Brazil,
Malaysia, Chile, Columbia,Philippines,South Africa,New Caledonia,Thailand, Doha,
Russia, Mauritius,Vietnam,Saudi Arabia,India,Bangladesh,Pakistan,Peru ETC.

Difference between Acidic Galvanization and Alkaline Galvanization:
Potassium chloride zinc plating (i.e.,Acidic Galvanization ) :
Advantages:
1, bright coating.
2, plating speed, high efficiency and low cost.
Disadvantages:
1, flake the galvanized layer , poor binding force , easy to fall off.
2, poor anti-corrosion ability , salt fog resistance test of the coating can not be guaranteed.
3, large coating brittleness , the passivation coating color is easy to fade after long time use.

Zinc-ate alkaline zinc plating (i.e., Alkaline Galvanization) :
Advantages:
1, good bonding strength ,columnar structure galvanized layer;
2, anti-corrosion ability is larger, better plating salt spray resistance test, can reach more than 72 hours;
3, better the color passivation coating adhesive ability, color is not easy to fade.
Disadvantages:
1,higher p plating processing requirements ;
2, highelectrical resistivity , low production efficiency ;
3, heavy alkali electroplating and pungent.
4, the color is relatively dark, not as acid bright zinc.
According to the advantages and disadvantages of two different kinds of galvanized, acid zinc is no guarantee that products comply with ROHS standards and requirements, quality cannot be guaranteed, should be used in alkaline zinc plating.

SpecificationofWireMeshContainerwithAcidicGalavnizationisasfollows.
Item	Size (L*W*H) (mm)	Wire Diameter (mm)	Mesh Space (mm)	Material Weight (kg)	Volume (CBM)	Loading Capacity (kg)	20GP/40HC LoadingQty (Pcs)	UnitPricefor 20GP/40HC LoadingQty
A-1	800*500*540	Φ6.0	50*50	25	0.15	500	420/840	$30.26/$29.16
S-1		Φ6.0	50*100	23	0.15	300	420/840	$28.04/$26.94
Q-3	800*600*640	Φ5.0	50*50	24	0.22	500	420/840	$29.15/$28.05
A-3		Φ6.0		30	0.22	700	420/840	$34.87/$33.77
B-3		Φ6.4		32	0.22	800	420/840	$37.03/$35.93
QS-3		Φ5.0	50*100	22	0.22	300	420/840	$26.93/$25.83
CS-3		Φ6.0		27	0.22	500	420/840	$30.39/$29.30
S-3		Φ6.4		29	0.22	600	420/840	$32.46/$31.36
C-3		Φ6.0	100*100	23	0.22	300	420/840	$28.04/$26.94
Q-5	1000*800*840	Φ5.0	50*50	36	0.52	800	220/550	$42.00/$39.35
A-5		Φ6.0		45	0.52	1,000	220/550	$49.90/$47.24
TA-5		Φ6.0		49	0.52	1,200	220/550	$53.90/$51.24
B-5		Φ6.4		52	0.52	1,500	220/550	$56.90/$54.24
QS-5		Φ5.0	50*100	32	0.52	500	220/550	$37.88/$35.22
CS-5		Φ6.0		40	0.52	800	220/550	$44.90/$42.24
S-5		Φ6.4		44	0.52	1,000	220/550	$48.90/$46.24
C-5		Φ6.0	100*100	34	0.52	500	220/550	$39.94/$37.28
Q-6	1200*800*840	Φ5.0	50*50	42	0.62	500	152/380	$51.12/$47.18
A-6		Φ6.0		55	0.62	1,200	152/380	$60.49/$56.55
B-6		Φ6.4		62	0.62	1,500	152/380	$67.27/$62.38
QS-6		Φ5.0	50*100	37	0.62	500	152/380	$45.32/$41.38
CS-6		Φ6.0		48	0.62	1,200	152/380	$55.18/$51.24
S-6		Φ6.4		53	0.62	1,500	152/380	$60.18/$56.24
Q-7	1200*1000*890	Φ5.0	50*50	52	0.84	1,000	152/380	$60.78/$56.84
A-7		Φ6.0		63	0.84	1,250	152/380	$68.24/$64.30
TA-7		Φ6.0		65	0.84	1,500	152/380	$70.18/$66.24
B-7		Φ6.4		72	0.84	1,800	152/380	$76.96/$73.02
TB-7		Φ6.4		78	0.84	2,000	152/380	$82.78/$78.84
QS-7		Φ5.0	50*100	45	0.84	500	152/380	$53.56/$49.62
CS-7		Φ6.0		55	0.84	800	152/380	$60.49/$56.55
S-7		Φ6.4		58	0.84	1,000	152/380	$63.39/$59.45
C-7		Φ6.0	100*100	46	0.84	500	152/380	$55.30/$50.65
Non-standardtypescanbecustomized.

Remarks:
Feet High:100mm;
Max Stacked-up during usage:4 Layes up ;
Surface Treatment : Alkaline Galvanizied, hot dip galvanized or powder coated;
Price Terms : FOB Shanghai ;We can also off CIF your port price item if necessary;
MOQ : No limited. If to save unit cost, we advice use one sea container (20GP/40GP) loading quantity shipped in FCL;
Terms of Payment : 30% T/T in advance and 70% T/T balance before ship, we can also accept L/C at sight;
Production time : 3-19 days;

For Quick Quotation Specific NeedWire Mesh Container:
1,Drawing or photos (if available)?
2,Size:long*wide*high?
3,Wire diameter ?
4,Mesh pitch ?
5,Add extra tools PP sheet, iron plate, forklift plates, wheels, cover, mesh top.
6,Surfacetreatment:acidic galvanization/alkaline galvanization/hot dip galvanization?
7,Loading capacity?
8,Stackable or not? Max stacked up?
9,Your required qty & destination port?
