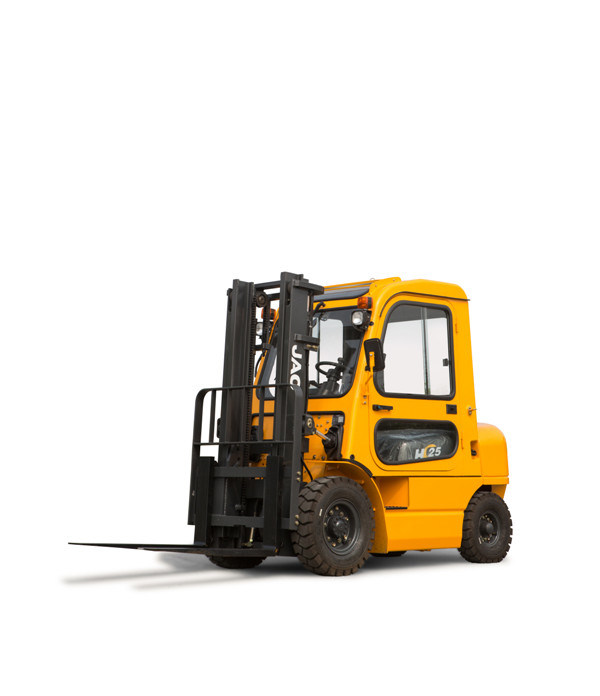

2.5ton Diesel Forklift Truck Powered Engine

JAC Diesel Forklifttruck (CPCD25H)/ JAC Auto forklift with ISUZU engine C240PKJ


Diesel Forklift Truck: 1-3.5T,
Tansmission: Mechanic/Auto
Engine: Brand: Nissan, BAOFA, GM

Electric Forklift: 1-3.5T, AC Curtis Controller

Warehousing Series: Stacker, Hand Pallet Truck..


JAC J FORKLIFT ADVANTAGE:

1. Stream-line design: Exclusive streamline design, fashionable and spirituality.

2. Powerful Engine: Equip with high performance and quality engine: ISUZU, VM, YANMAR, MITSUBISHI, KUBOTA

3. High performance shell hydraulic oil: Protect key spare parts and prolong working life.

4. Safety belt seat: Safe, comfortable and equip with warning system without fasten seat belt.

5. High exhaust fans: Provide better working environment for operator.

6. Integrated overhead guard: Well protect the operator

7. Hydraulic shift and key-switch type flame-out device: Operation and flame-out more easier.

8. Up market meter and car parking type brake: Totally enclosed car type meter desk, car parking type brake save effort for operation.

9. Side shifter: Standard equip with side shifter, operation more easier and improve work efficiency.

		CPCD30			CPCD35
POWERUNIT		DIESEL			DIESEL
LOADCAPACITY	kg	3000			3500
LOADCENTER	mm	500			500
SERVICEWEIGHT	kg	4280			4820
STANDARDLIFTHEIGHT		3000			3500
LENGTHTOFORKFACE	mm	2740			2805
OVERALLWIDTH(STANDRD/DOUBLEFRONTTYRE)	mm	1230/1710			1230/1710
HEIGHTOFOVERHEADGUARD	mm	2105			2105
AISLEWIDTHWITHPALLET	mm	4155			4240
1000*1200ACROSSFORKS
TURNINGRADIUS	mm	2500			2575
TRAVELSPEED,WITH/WITHOUTLOAD	km/h	17/18			19/19.5
ENGINEFOROPTION		JAC	ISUZU	VM	JAC	ISUZU	VM
		4DC1	C240PKJ-30	753IE4	4DC1	C240PKJ-30	753IE4
		MITSUBISHI	KUBOTA	YANMAR	MITSUBISHI	KUBOTA	YANMAR
		S4S	V2403	4TNE92	S4S	V2403	4TNE92
ENGINEBRAND	JAC	ISUZU	VM	MITSUBISHI	KUBOTA	YANMAR	ISUZU
FUELTYPE	DIESEL	DIESEL	DIESEL	DIESEL	DIESEL	DIESEL	DIESEL
ENGINETYPE	4DC1	C240PKJ-30	753IE4	S4S	V3600	4TNE98	4JG2
RATEDPOWER	45/2500	35.4/2500	50/2500	41.8/2300	46.9/2400	42.1/2300	44.9/2450
MAX.TORQUE	185/1600	137.7/1800	250/1800	176/1800	209.8/1600	186/1700	184.7/1800
NUMBEROFCYLINDERS/DISPLACEMENT(L)	4/3.059	4/2.369	3/2.2	4/3.331	4/3.62	4/3.318	4/3.059
BORE*STROKE(mm)	94.5*107	86*102	94*107	94*120	98*120	98*110	95.4*107
EMISSIONREGULATION	ECSTAGE3A	ECSTAGE3	ECSTAGE3B	ECSTAGE3A	ECSTAGE3A	ECSTAGE3A	ECSTAGE2
