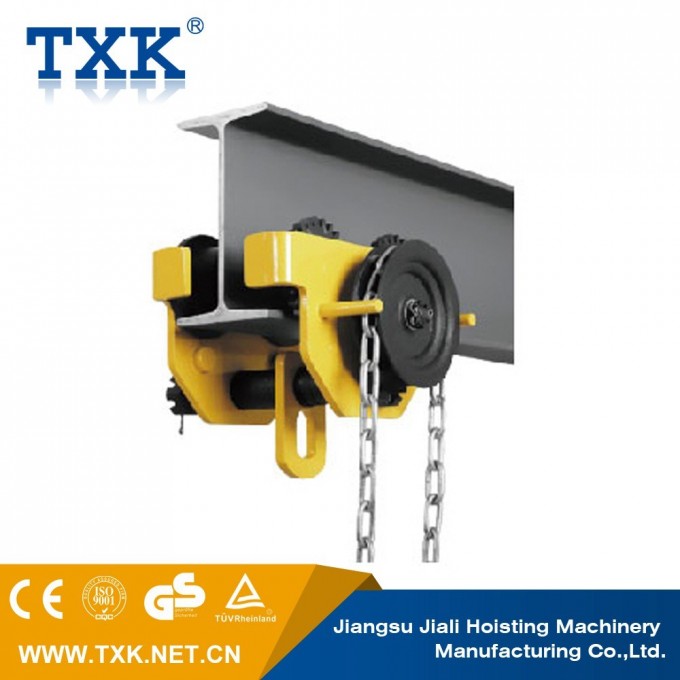

1 Ton Geared Trolley with Ce

1 Ton Geared Trolley with Ce
Manual Pulley, Geared trolley, Manual Crawl
Model: GT-01
Capacity(ton): 1
Minimum radius of turn(m): 1
Net Weight (kg): 14

Designed to function on both flat and minor irregular beams surface like I-beam and H-beam
Easy installation and on-site operations
Dual tread iron wheels with high quality sealed ball bearing
Heavy rolled steel side plates with a universal hanging eye, can be coupled closely to most hoists.

Manual TrolleyManual Crawl Geared trolleyspecifications and drawing:

Manual Trolley Technical Parameters
Model	Capacity	I-Beam recommended A (mm)	I-Beam recommended B(mm)
				N.W.(kg)
GT0.5	0.5	75-125		10
GT114	161	80-146	64-140	14
GT2	2	80-168	76-165	16
GT3	3	88-168	76-203	24
GT5	5	100-170	88-203	36
GT10	10	122-203	125-203	90

What makes us different from others?
1. Production Capacity
*Over 96,000 square meters factory territory.
*Maximum daily capacity of new electric hoist can reach to 300 units.

2. Qualifications
*TXK is ISO9001:2008 cerfified company.
*Factory authorized by TUV Germany.
*CE & GS certificates for all products.

3. Marketing
*TXK is well sold in more than 60 countries.
*We serve over 2,000 companies in the world, include "500 Fortune Enterprises".
*Best price in Competitors of same products

What else you can get from us?
*Electric Chain Hoist
*Wire Rope Hoist
*Crane & Crane Components
*Chain Block
*Lever Block
*Manual Trolley
*Wire Rope Pulling Hoist
*Hand Winch
*Permanent Magnetic Lifter
*Jack & Scale
*Plate & Drum Clamp












FAQ
Q: What is MOQ?
A: MOQ can be 1 set

Q: How about your payment terms?
A: We accept T/T and L/C at sight

Q: What is the sample policy?
A: We can send you 1pcs sample for your test, but you need to pay the fees

Q: What is your after sales service?
A: We have engineers to fix any problem about TXK Hoists sold overseas.

Q: What about warranty?
A: We supply 1 year warranty for electric part and 2 years for mechanical part.

Q: Do you support OEM service?
A: Yes
