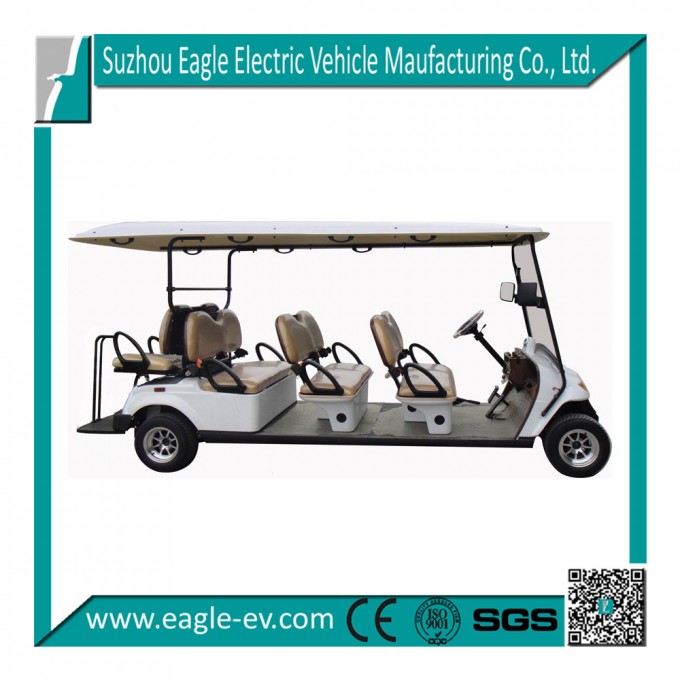

Electric Golf Carts, 8 Seatswith Jumper Seat, Eg2069ksf

Company History
Founded in 1999, Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.Is aleading manufacturer specializing in designing and manufacturing 4-wheel electric vehicles.Our company has aworkshop area of 30,000 square meters and 400 workers.Our current daily production capacity is 100units per day, this can be adjusted with the order volume increasing.
Our company has gotten the unique production license for electric vehicle by the Supervision Bureau of Quality and Technology of China.In 2003, we were approved by ISO9001.In 2006, we were approved by WMI quality system to get our own VIN.

With effective management and specialized talents, our company is dedicated to offering top quality products with competitive price and first class after-sales service.

Why EV?
There should be at least three reasons for EV:
Firstly, decrease pollution!EV as azero-emission-car can help improve the environment alot;
Secondly, decrease the cost!Though the initial buy cost of EV is higher than gasoline car, the maintenance cost of EV will be extremely lower than gasoline car.based on calculation, for a48V EV, it only consumes 2KWH electricity per 100kms.Cost is much lower than gasoline car.
Thirdly, energy independent!For acountry that is lack of oil source, it should find away to make it independent from oil.Water resource, sun resource and wind resource are potential alternative resource;The problem is to find amedium to storage the energy.Then battery will be the best choice at this moment.


Key Components

Item	Description
Controller	Curtis controller, 400A, imported from USA directly
Motor	Rated 5KW (6.8HP), ADC brand or Chinese brand Both DC motor and AC motor are available
Battery	Trojan battery, T105+, imported from USA directly
Charger	High Frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A)

Performance

Item	Description
Passenger Capacity	8 (6 seats facing forward and 2seats facing backward)
Range (loaded) (km)*	Up to 75
Max.Speed (km/h)	Up to 32
Min.Turning radius (m)	6
Max.Climbing ability(loaded)	Up to 15%
Max.Movement after brake at speed of 20km/h	≤4m
Max.Loading weight (kgs)	640
Charging time (hour)	8-10
Battery lifespan (cycles)	750

* 1) based on the test conditions:20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2)Range will vary depending on temperature, grade, payload and driving style.

Dimensions

Item	Description
Overall dimensions (mm)	4430x1180x1890 (LxWxH)
Min.Ground clearance (mm)	120
Wheelbase (mm)	3200
Front wheel tread (mm)	855
Rear wheel tread (mm)	975

Body and frame

Item	Description
frame &Chassis	Welded steel framework with phosphate+electro-coating treatment
Body	PP plastic front and rear body cover, injected
Roof	FRP
Windshield	One-piece organic glass (PMMA)
Roof supports	Carbon steel, powder coated, black
Cushion	Reborn sponge with artificial leather and plastic bottom cover
Backrest	Reborn sponge with artificial leather and plastic cover
Armrest	Formed
Floor mat	Skidproof rubber
Dashboard	Black plastic, with F/R switch, battery power indicator, ignition key on it
Beverage holders	4 cups holders, 2big and 2small
Side trim	Plastic, black
Rear flip flop seat	Carbon steel armrest,diamond aluminum board bottom board, Steel standing board
Score card holder	On the steering wheel

Electric System

Item	Description
Lights	12V, headlight, front turning light, taillight (brake light and rear turing light)
Horn	Electric horn, 12V
Reverse buzzer	Electric, 12V
Combination switch
DC/DC converter	48V/12V

Steering &suspersion

Item	Description
Steering System	Single-stage rack and pinion steering system, With automatic compensation function
Brake System	4-wheel hydraulic drum brake with hand park brake
Accelerator	Resistance type, stepless speed change
Front suspension	Cylinder hydraulic shock absorber and leaf spring
Rear suspension	Cylinder hydraulic shock absorber and leaf spring
Driving model	Rear axle two stage deceleration, motor direct driving
Rear axle	Steel differential cage, integrated, 12.76:1 gear ratio
Wheel &Tyre	10x6 Alumimum wheel &205/50-10 4PR
