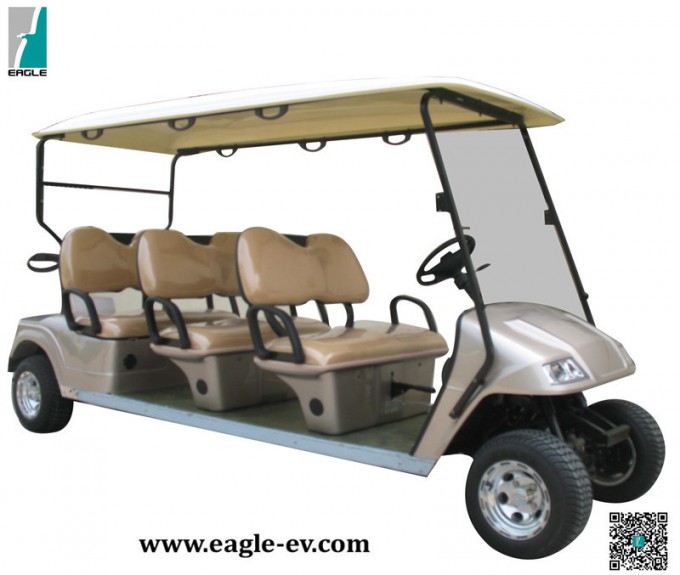

Factory Supply Pure Electric China Supplier 6 Person Golf Cart

System:Multiple can choose
High quality and fashion design
Low price and Hot sale
China factory supply
Model:EG2068K

Suzhou Eagle takes quality as its lifeline.Eagle invests alot to make production moulds, jigs and checking moulds to ensure pcise component parts.Eagle invests alot on checking machines like Salt spray test equipment for anti-rust ability, Rockwell hardness tester, Three-coordinate shock test-bed, Life test equipment, etc.To ensure component parts are produced and treated correctly.Eagle chooses the most top quality key component parts (Battery, Controller) to ensure the performance of its vehicles.In all, Eagle follows International Quality Standard to produce, control and inspect its electric vehicles.Hence, Eagle was awarded ISO9001-2000 Certificate in 2003 and Certificate of WMI Code (L4F) in 2006.

Eagle people believe good service has the same importance as good quality.Eagle's sales persons can be reached in 24 hours x365 days.Eagle's sales persons are willing to answer any emails from their customers within 24 hours.Eagle provides all the spare parts (Except battery) of its vehicles.

Specifications	Model	EG2068K
Key Components	Power Source	Pure Electric
	Electric System	Both AC and DC system are available
	Battery	Trojan battery
	Motor	ADC motor or Chinese Motor
	Controller	Curtis controller
	Charger	China origin, input 110V-240V~50Hz-60Hz,
Performance	Passenger capacity	6
	Range (loaded) based on flat road at aspeed of 20km/h (km) *	Up to 90
	Max.Speed	Up to 40
	Minimum turning radius (m)	6
	Max.Climbing ability (loaded)	Up to 20%
	Max.Movement after brake at speed of 20km/h	≤ 4m
	Max.Loading weight	480kgs
Dimensions	Overall dimensions (mm)	3860x1180x1890
	Min.Ground clearance (mm)	120
	Wheelbase (mm)	3200
	Front wheel tread (mm)	875
	Rear wheel tread (mm)	985
Body and frame	frame	Welded steel framework with phosphate+electro-coating treatment
	Body	PP plastic front body +PP plastic rear body
	Roof	Injected plastic
Electric system	Lighting system and horn	Headlights, front turn signals, taillights, with DC-DC converter, horn, reversing alarm
Steering and Suspension	Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
	Brake system	4-wheel hydraulic brake +hand brake
	Suspension system	Front and rear plate spring +cylinder hydraulic shock absorber
	Driving mode	Rear axle two stage deceleration, motor direct driving
	Rear axle	Integrated
	Wheel &Tyre	Alumimum wheel &205/50-10 Tyre
Options	Hinged Windshield
	Stainless steel package
	Meter (available for 48V system)
	2 point seat belt
	Formed seat& backrest vinyl
	Wood finish Package
	Inner &Side rear view mirror
	Solar Panel
	Cooler
	On-body charger
	Right hand drive system
	Enclosure
Body Color	Up to 6kinds of standard color for option
Loading	Both Assembly and Disassembly are available
