Detailed Description
System: Multiple can choose
High quality and fashion design
Low price and Hot sale
China factory supply
Model: EG2068K
Packing and shipment
Visit and Exhibition
Plant and Office
| Specifications | Model | EG2068K |
| Key Components | Power Source | Pure Electric |
| Electric System | Both AC and DC system are available |
| Battery | Trojan battery |
| Motor | ADC motor or Chinese Motor |
| Controller | Curtis controller |
| Charger | China origin, input 110V-240V~50Hz-60Hz, |
| Performance | Passenger capacity | 6 |
| Range (loaded) based on flat road at a speed of 20km/h (km) * | Up to 90 |
| Max. speed | Up to 40 |
| Minimum turning radius (m) | 6 |
| Max. climbing ability (loaded) | Up to 20% |
| Max. movement after brake at speed of 20km/h | ≤ 4m |
| Max. loading weight | 480kgs |
| Dimensions | Overall dimensions (mm) | 3860x1180x1890 |
| Min. ground clearance (mm) | 120 |
| Wheelbase (mm) | 3200 |
| Front wheel tread (mm) | 875 |
| Rear wheel tread (mm) | 985 |
| Body and frame | frame | Welded steel framework with phosphate+electro-coating treatment |
| Body | PP plastic front body + PP plastic rear body |
| Roof | Injected plastic |
| Electric system | Lighting system and horn | Headlights, front turn signals, taillights, with DC-DC converter, horn, reversing alarm |
| Steering and Suspension | Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | 4-wheel hydraulic brake + hand brake |
| Suspension system | Front and rear plate spring + cylinder hydraulic shock absorber |
| Driving mode | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Integrated |
| Wheel & Tyre | Alumimum wheel & 205/50-10 Tyre |
| Options | Hinged Windshield |
| Stainless steel package |
| Meter (available for 48V system) |
| 2 point seat belt |
| Formed seat& backrest vinyl |
| Wood finish Package |
| Inner & Side rear view mirror |
| Solar Panel |
| Cooler |
| on-body charger |
| Right hand drive system |
| Enclosure |
| Body Color | Up to 6 kinds of standard color for option |
| Loading | Both Assembly and Disassembly are available |

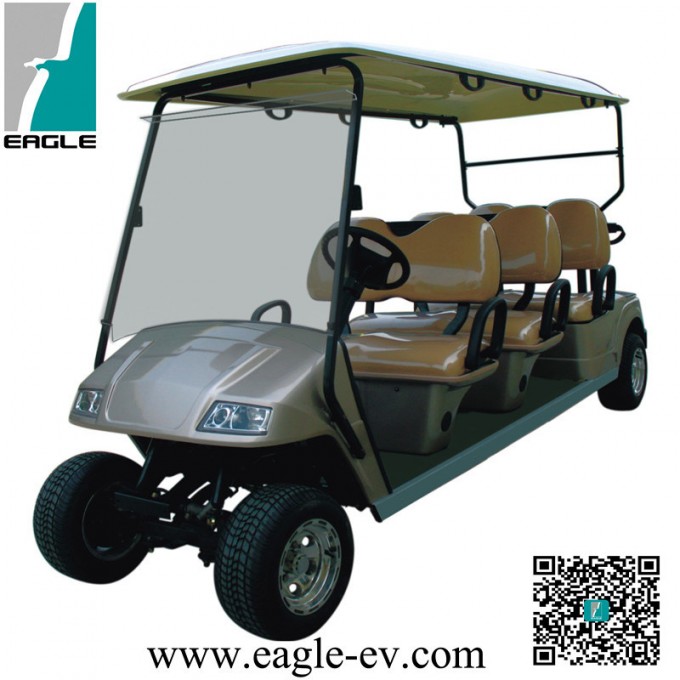

Product Image
