Detailed Description

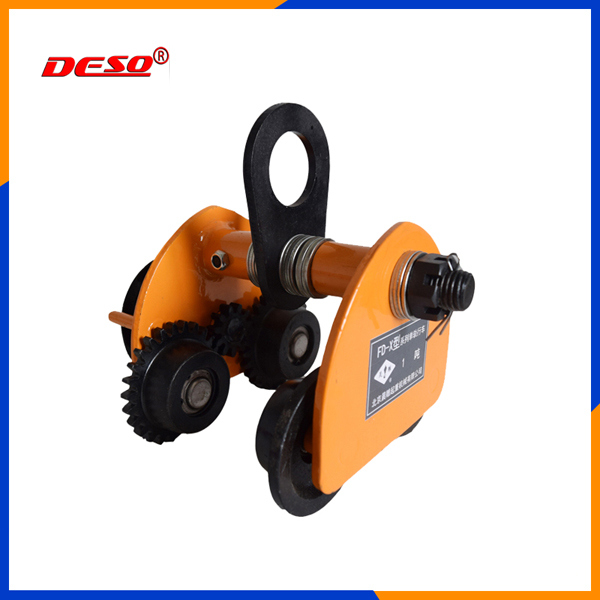

Lifting Plain Trolley
Features:
* Adjustable to any beam width, simply by adjusting the number of collars.
* The wheels are made to fit any shape of beam
* High grade sealed ball bearings.
* With anti-drop plates.
Capacity
(ton) | Dimensions
(mm) | Minimum revolving radius
(mm) | N.W.
(kg) |
| A | B | C | D | E | F |
|
| 0.5 | 206 | 174 | 120 | 45 | 55 | 27 | 900 | 6 |
| 1 | 206 | 231 | 120 | 45 | 80 | 27 | 1300 | 10.5 |
| 2 | 241 | 271 | 155 | 60 | 100 | 33 | 1500 | 18.5 |
| 3 | 261 | 311 | 185 | 70 | 113 | 47 | 2000 | 26 |
| 5 | 294 | 351 | 220 | 80 | 125 | 53 | 2600 | 44 |
| 10 | 294 | 721 | 165 | 90 | 125 | 62 | 12.7 | 96 |
If you need more details or have any questions, please feel free to co
ntact us, we are more than pleased to do any help. Thanks!
