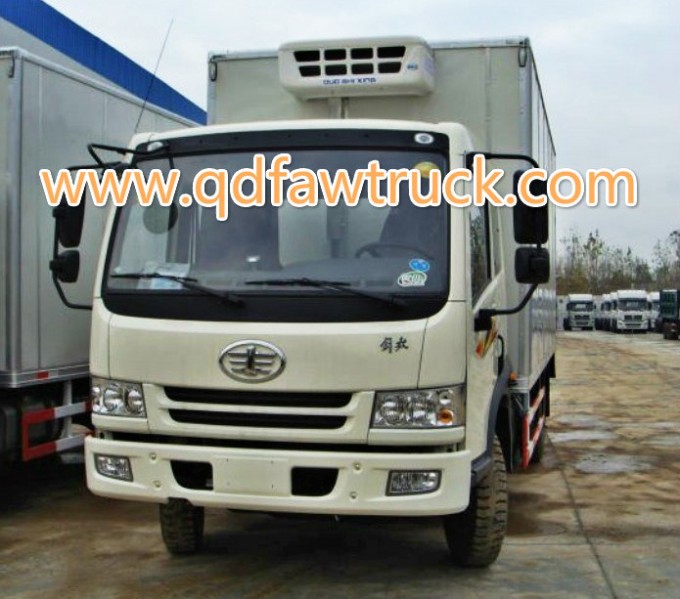

FAW 10 Tons Refrigerator Truck (CA1169PK2L2EA80)
Company information:
We're one professio
nal manufacturer which refitting special truck and trailer in China,established in 1969, more than 40 yrs producing experience, a growing enterprise with endless innovations and development.Our corporation mainly specializes in the various semi trailers and special vehicle related business, such as dump truck, tanker trailer, co
ncrete mixer truck, and etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for axles and hydraulic cylinders. We'reone of the earliest company to get the approval of the ISO, CCC and Compulsory Product Certification Enterprises.We have exported more than 30 countries from 2005.Looking forward to your visiting or calling.
We keep good relations with main truck manufactrers in China. And we can supply all brands dump truck made in China. HOWO, SHACMAN, BEIBEN, DONGFENG, SINOTRUK, BEIBEN, FOTON, C&C, and so on. More details for these trucks, feel free to co
ntact us please.
FAW 10 Tons Refrigerator Truck (CA1169PK2L2EA80)
Type: CA1169PK2L2EA80
Cabin: Sailong
Engine Model: CA6DF3-16E3F, 160HP, 180HP
Emission standard: Euro 3
Power (KW): 160HP, 180HP.
Clutch model: 380mm, single plate, dry, diaphragm.
Gearbox Model: CA6TBX075M transmission
Rear Axle: CA385 wheel reduction axle
Rear Axle speed ratio: 5.725.
Wheel & tire: 9.00R20, Model 16Ply Rating
Axle ba
se: 5350
Fuel Tank: 200L
Overall dimensions Length: 9072
Width: 2540
Height: 3720
Front overhang(loaded) 1312
Rear overhang(loaded) 2490
Mass
Parameter Curb weight (kg) 6900.
Gross truck weight 16900
Max. Loaded weight: 10050.
| Chassismodel | CA1169PK2L2EA80 |
| Overalldimensions(mm) | 8965x2550 x3910( L × W × H ) |
| Ratedload(kg) | 9995 |
| GVW (kg) | 16800 |
| Drivingmodel | 4X2 |
| Front/rearsuspension(mm) | 1365/2600 |
| Front/rearwheelbase(mm) | 1930/1800 |
| Maxspeed(km/h) | 95 |
| Tirespecification | 9.00R20 |
| Leafspringno. | 8/10+10 |
| Engine | Brand | CA6DF3-16E3F, 160HP, 180HP |
| CylinderNo. | 6 |
| Maxoutputpower(kw) | 125/132 |
| Maxhorsepower(ps) | 160/180 |
| Displacement(ml) | 7120 |
| Emissionstandard | Euro 2/3/4 |
| Enginetype | Supercharge,inter-cooling,high-pssure
commonraildirectinjection |
| Transmission | 6 -speedwith 1 reverse |
| Dimensionofvan(mm) | 6750 x2310 x2410 |
| Temperaturerange | -25degreeto-10degree |
We can supply various Truck from 5 tons to 40 tons. Lorry, Van Truck, Wagon Truck, Cargo Truck, Garbage Truck.
NOTE:
We are a leading special purpose vehicle & vehicle body manuifacturer from China, our products: Refrigerated truck & body, Insulated truck & body, Dry cargo truck & body, Store/stake truck & body, Explosion-proof truck & body, Dump truck & body, Truck crane & body, Mobile catering truck & body, Mobile stage truck & body, Mobile shop, Mobile kitchen, Cargo van, Medical waste transport truck & body, Box trailer.
