Detailed Description
Plain Hoist Trolley
Features:
*Adjustable to any beam width, simply by adjusting the number of collars.
*The wheels are made to fit any shape of beam
*High grade sealed ball bearings.
*With anti-drop plates.
*For geared trolley, the standard operating length is 3m, other length is available upon request.
| Capacity (t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 |
| Test load (Kn) | 7.35 | 14.71 | 22.06 | 29.42 | 44.13 | 61.29 | 122.58 |
| Min radius of curve (m) | 0.9 | 1 | 1 | 1.1 | 1.3 | 1.4 | 1.7 |
| Dimensions (mm) | A | 248 | 314 | 314 | 330 | 356 | 385 | 403 |
| B | 184 | 220 | 250 | 254 | 299 | 326 | 389 |
| C | 198 | 237 | 262 | 262 | 341 | 395 | 500 |
| H | 113 | 134 | 142 | 158 | 186 | 219 | 285 |
| F | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| E Min. | 9 | 9 | 9 | 10 | 10 | 12 | 22 |
| I beam recommended (mm) | 64-152 | 64-203 | 64-203 | 88-203 | 102-203 | 114-203 | 125-203 |
| Net weight (kg) | 7 | 14 | 18 | 21 | 35 | 48 | 88 |
If you have any questions or need more details, please feel free to co
ntact us, we are more than pleased to do any help. Thanks!

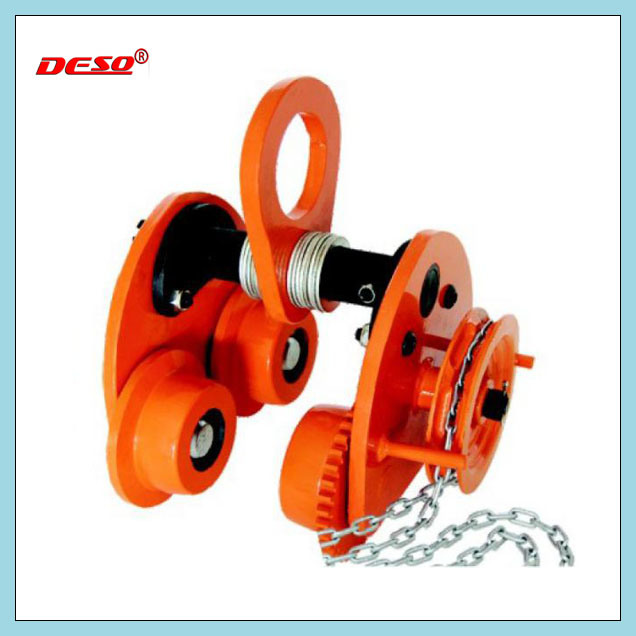

Product Image
