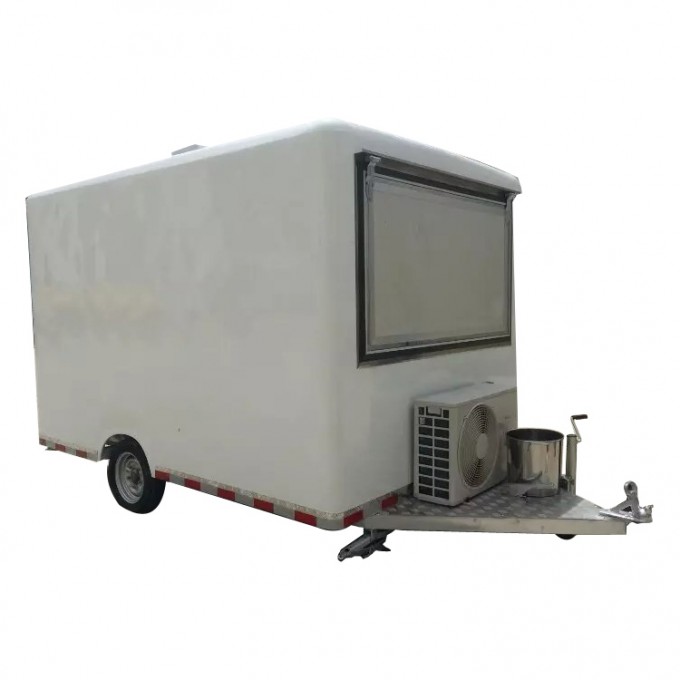

Mobile Stainless Steel Food Cart for Snack

FOOD WARMER CART MOBILE FOOD CART fast food trailer

Model: C100
Material:stainless steel
Color:Red, White, Yellow, Green, Black, Pink And So On
Dimension:3000mm(L)*2100mm(W)*2300mm(H)
Equipments: Customzied

The color, dimensions and equipments can be modified to meet your needs.

---------------------------------------------------------------------------------------------------------------------------------
Configuration

1.Body Material:50mm polyurethane Sandwich plate material with intermediate heat insulation plate,Any logos is available.Any color is available

2.Chassis and frame:Integral steel frame construction and suspension components treated with rust resistant protective coating

3.Wheels:Tires with axles

4.Tow-bar:High Strengthen durable towbar with safety ball headed coupling

5.Flooring:Non-slip flooring Aluminum Corrugated plate with drain, easy to clean up

-------------------------------------------------------------------------------------------------------------------------------------
Detail










Loading container(Three grade package):

















-------------------------------------------------------------------------------------------------------------------------------------Packing & Delivery

Size (cm)	4000mm(L)*2100mm(W)*2600mm(H)
Weight (Kg)	1000
Packing	The normal package is nude packing. If needed, we will use pe film for packing or pack it according to customers special request.

---------------------------------------------------------------------------------------------------------------------------------------------
Equipments installed inside (optional)

deep fryer	griddle	oven
gas burner	food warmer	hot dog roller
crepe machine	freezer	ice cream machine
juice machine	coffee machine	pop corn machine
churros machine	ice maker	fridge

--------------------------------------------------------------------------------------------------------------------------------------------

Features:

1.Chassis

Hot-dip galvanized chassis with tow-bar imported from Germany. international standard trailer chassis.

Travel brakingsystem:Electronicbrakedevice.

Manual brake systemat front of tow-bar.

Suspensiontype:load-bearing4400poundtrailer,5-leaf springswithaxle.

Maximumspeed(Kilometer/hour):120

Wheels: 4x14inch, double axles.

2.Body material

Wholly integrally molded peal panel sheetwith35mm polyurethaneas layer in middle. Any logos is available.

3.Exterior

3.1

Commercial sunshade elastic awning imported from USA.

3.2

Foldable small food bench with keys installed on exterior of trailer . imported from Germany.

3.3

Water -proof black strip around edge of windows , doors and trailer , no visible screws from outside.

3.4

Food grade 150L fresh water tank and 150L waste water tank under chassis. With gravity water inlet.

3.5

4pcs foldable supporting legs at corner of trailer

4. Inside Building

4.1

Working bench made from304 food grade stainless steelwith sliding doors underneath

4.2

Doors with waterproof sealing strip and high safety lock imported from Germany

4.3

Windows with waterproof sealing strip and hydraulic pssure jacks. Sliding window as optional

4.4

Anti-slip vinyl floor easier to clean instead of checked aluminum plated.

4.5

Double sinks with water tap and 12V water pump

Gas water heater

5.Electric system

High-powerdistributionboxaddedwithsafetyswitch;

LED lamp on roof

Standard socket quantity as need

Cable layout as need

Exterior side lights and reflector :tail light , braking light and turning light

Hidden exterior power point

7-pin socket ppared.

Noted:

Our trailer inside standard is s/s working bench, sliding doors, water sinks. Electricity system.

But we can equip other cooking appliance as your customization.

For instance, gas griddle, gas fryer, gas burner,crips machine , kebab machine,hot dog machine , showcase,ice cream machine , slush machine , air conditioner.etc.

Customize

CAD design needed, and inside decoration plan needed.
