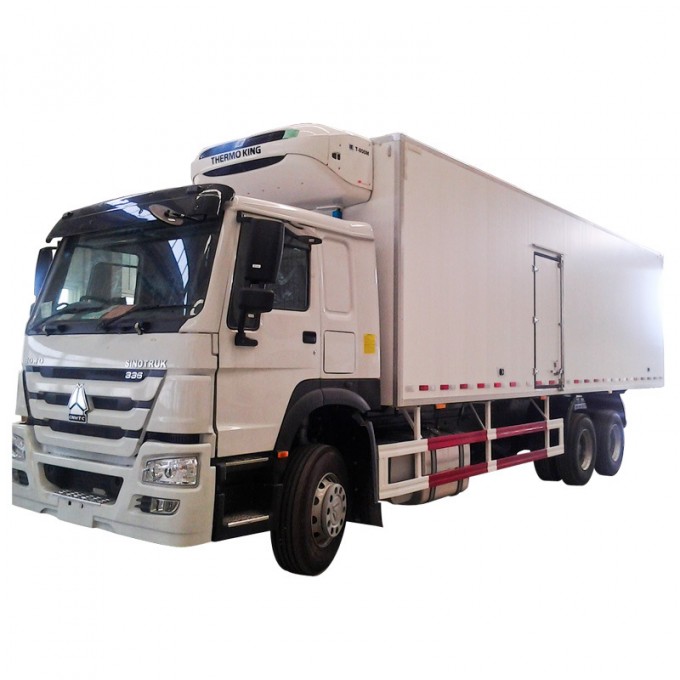

SINOTRUK frozen truck big ice cream truck
Refrigerator wagons/cars/trucks produced by Chengli Special Automobile Co., Ltd
Cover IVECO, HINO,FOTON,SINOTRUK, DFAC, FAW,,JAC,JMCbrand and range in size and equipment, which can meet different need, such as vegetable transportation, meat transportation, seafood transportation and vaccine transportation.
The advantages of Insulated/Freezer Van Body
1. It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside and PU foam in the core.
2. Light in weight&co
lon; 40% lighter than me
tal body.
3. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
4. The panel used for the truck body was co
nstructed in type of sandwich. The thermal insulation layer is 50-80mm thick, which offers a very good thermal insulation performance.
5. Length of Cargo body&co
lon; 10-40 inch; Capacity of Cargo body&co
lon; 5-70CBM. The material of the cargo body is optio
nal according to which kinds of goods the truck transport, with perfect heat pservation, box open model&co
lon; Rear double-open or Side-open.
6. Refrigeration unit Brand Optioanl&co
lon; American CARRIER, THERMO KING. South Korea hanya. China Songhan, hanxue, etc. The Temperature range can be 0° C ~ -20° C. The refrigeration units that we selec
t have simple structure, co
nvenient operation, reliable working, low energy consumption, large refrigerating capacity, small noise, easy installation and maintenance and other advantages.
Co
ntact Information
Sale Manager&co
lon;Yuki
Tel/Fax&co
lon; 0086-27-83796298
Mobile&co
lon; +008613872880232
+008618858011948
TechniqueParameters
| Description | 6X4 RefrigeratorTruck |
| DriveModel | 6X4 |
| Chassis | CA5160 |
| VehicleMainDimensions | Dimensions(LxWxH)mm | 9250*2550*3810 |
| Wheelbase(mm) | 5300 |
| Overhang(front/rear)(mm) | 1400/2450 |
| Wheeltrack(front/rear)(mm) | 1800/1800 |
| Approach/Departureangle(°) | 18/10 |
| WeightinKGS | CurbWeight | 7570 |
| GVW. | 16000 |
| Max.drivingspeed(km/h) | 96 |
| Engine | Model | CA6DF3-18E3 |
| Type | 4-strokedirectinjection,6-cylinderin-linewithwatercooling,turbo-chargingandinter-cooling |
| HorsePower(HP) | 180HP |
| Emissionstandard | EuroIII |
| Gearbox | 6forwards&1reverse |
| Clutch | Reinforceddiaphragmclutch |
| SteeringGear | Powersteering,hydraulicsteeringwithpowerassistance |
| Fueltank(L) | 180 |
| Tire | 9.00-2016PR,6pcs+1 |
| Brakes | dualcircuitcompssedairbrake |
| Van |
| Material | 1.Fibersteeldoubledeck
2.with8CMthicknesspolyurethane
3.Fibersteel/Stainlesssteel/Colorplatecanbechoosen |
| TipperBoxDimension | 6640*2335*2400mm |
| Thickness | 10CM |
| Temperature | -18ºCor-5ºCasyourchoice |
Truckrefrigerator
| Unitmodel | F700 |
| RefrigeratorType | HUATAI |
| Applicabletemperature(ºC) | 20ºC~+25ºC |
| Applicablevolume(m3) | 27~37(-20ºC) |
| Coolingcapacity | Environmental
temperature | 0ºC | 3300W |
| -18ºC | 3700W |
| Voltage(V) | 12V/24V |
| Current(A) | 37A/62A |
| compssor | Displacement(cc/r) | UPF170/TM16(172cc/r) |
| condenser | Airflow(m3/h) | - |
| Fantype | - |
| number | - |
| evaporator | Airflow(m3/h) | - |
| Fantype | - |
| number | - |
| refrigerant | R404A3.6~3.9Kg |
| Refrigerantchargeamount(Kg) |
|
| Defrosttype | - |
| Dimensions(mm) | evaporator | 1700×644×230 |
| Condensingutensil | 1265×555×415 |
| Weight(KG) | evaporator |
|
| Condensingutensil |
|
| Remark | Optionaltoinstallfor380vstoreelectricpower |
Our warranty
1, one year quality guarantee for three key parts&co
lon; Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3, Regularly callback to know the vehicle's working status.
4, The overseas engineers are always ready to deal with unexpected needs.
Other services&co
lon;
1. All trucks and trailers are new and be customized to meet all your requirement.
2. All trucks and trailers are with 12 mo
nths quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided.
Packing &Shipping
1, Naked or waxed.
2, Delivery time&co
lon; 30 days after receiving payment in advance.
3. By RORO or Bulk ship.
FAQ
Q&co
lon; What is your payment term?
A&co
lon; We accept payment by T/T, L/C.
Q&co
lon; How many trucks do you sell in 1year?
A&co
lon; Almost 20000-30000sets
Q&co
lon; Is your factory amanufacturer or trading company?
A&co
lon; We are the manufacturer, we are the biggest special trucks factory in China special truck ba
se.
Q&co
lon; Wher
e is your factory located, can we visit your factory?
A&co
lon; Our factory is located in South Suburb Chengli Auto-mobile Industry Park, suizhou city, Hubei Province, China, nearby Wuhan airport, we sincerely welcome you to visit!
Our advantage&co
lon;
Competitive Price and Excellent Quality,
More than 10 years' experience as a manufacturer
CCC, ISO, BV certification
Perfect after-sale service
Export covering More than 50 countries and regions
Annual production value topped 1500, 000, 000 RMB (240, 000, 000 US dollars) per year
Our company is appointed by Ministry of Industry and Information Technology of China, We are aProfessio
nalmanufacturerand exporter which is co
ncerned with the design, development and production of more than300kinds of trucks.
Our company cooperates with famous chassis manufactureer, such asDONGFENG, FAW, SINOTRUK, JAC, SHACMAN, FOTo
nand etc.
Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell to Africa, South-east Aisa, Australia, Middle-east and other place. They mainly from below country&co
lon; Angola, Algeria, Kenya, Nigeria, Rwanda, Sudan, Zambia, Libya, Congo, Indonesia, Malaysia, Philippines, Vietnam, Turkey, Yemen, Syria.
High performance HINO Freezer Truck 4X2 Refrigerated Truck
We provide products as follows&co
lon;
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2.Water truck/ Water Tank Truck /Water Sprinkler Truck/Water Tanker
3.Truck with crane/ Truck mounted crane
4.Dump Truck/ Tipper Truck/Side Tipper/End Tipper
5.Fire Fighting Truck/ Fire Truck /Fire Vehicle
6.Co
ncrete Mixer Truck
7.Van truck/ Blasting equipment transporter/Refrigerated truck
8.Fecal suction truck/ Sewage suction truck,
9.Cement Powder Tank truck/ Bulk cement truck
10.High-altitude operation truck,
11. Self-loading garbage truck,garbage compactor truck, sealed garbage truc
12.Tractor
13.High Pressure Cleaning Truck
14.Sweeper Truck
15. Semi Trailer (flat bed trailer/ skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van co
ntainer trailer /warehouse trailer, etc. )
SINOTRUK frozen truck big ice cream truck
Any needed please don't hesitate to co
ntact YUKI
cell&co
lon;+8618858011948/13872880232
WELCOME TO VISIT OUR FACTORY AND PLACE YOUR ORDER!
