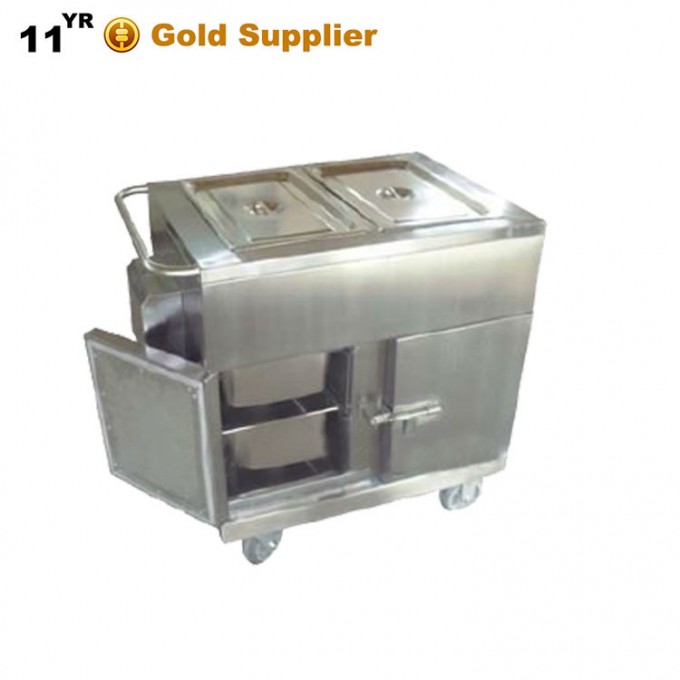

Thr-FC005 Stainless Steel Hospital Food Delivery Trolley

Product Description
Full Stainless Steel Electric Heating Food Trolley(THR-FC005)

Dimensions: 860 x 660 x 850mm
Inserts:
1. Full with full lid: 530 x 325 x 150mm, 22 litres, stainless steel
2. Half with half lid: 325 x 265 x 150mm, 11 litres
3. One third with one third lid: 325 x 176 x 150mm, 7 litres
4. One quarter with one quarter lid: 265 x 162 x 150 mm (l x w x d), 5 Litres
5. One sixth with one sixth lid: 176 x 162 x 150 mm ( l x w x d), 3 litres
6. One ninth with one ninth lid: 176 x 108 x 150mm ( l x w x d) 1.5 litres

Specifications:
1. Heating time(80-110 ° C) 10-20M
2. Heating power: 1.5KW
3. Working voltage: 220-380V(according your country's standard voltage)
4. Weight: 115kg
5. Material: High quality stainless steel
Thickness of the bottom: 1.5mm
Thickness of other parts: 1.2mm

Operating Methods:

1. When the food cart in working contitions, should be placed in the horizontal ground.
2. Inject enough clean water to the water plate in the bottom of the cart.
3. Put in all the foods to the cart, close the airproof-door.
4. Connect the food cart with electric controller box, also connect with power.
5. Push the switch to turn on the food cart, the light indicator in green show us in working condition. The working time could be fixed 1-20mins according to detail requirement.
6. When heating for10-20mins, power would be cut off automatically by the time-controller.
7. Checking the temperature on the board, should be 80-100° C. Because of the Heat retaining functions, the temperature will raise about 10° C.
8. As to different temperature each season, the heating time should be fixed flexible.
