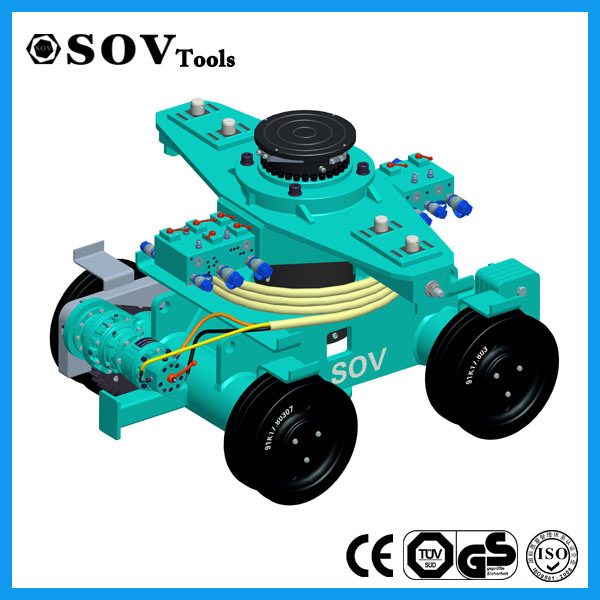

High Quality Shipping Hydraulic Transporation Trolleys

Production Description

Hydraulicvehiclesystemforshippingtransportationisaprofessionalandimportanthydraulictransportationequipmentusedfortransportingtheshippingatorbittype.Withthetransportationfunctionsofsynchronouslifting,self-driveadvancingandsynchronousmovementcontrolledbyPLCsystemequippedonshiphull,itcansolvetheproblemsoflowautomaticdegree,labor-intensiverequirementandoperationalcomplexityforthetraditionalshipbuildingindustry.SOVhydraulicvehiclesystemiscomposedofnumeroushydraulicsmallvehicles,centralizedcontrolcabletrailercontrollinghydraulicsmallvehiclesconcurrentlyandpssuretestbenchdetectingthepssureenduranceofhydraulicsmallvehiclesandiswidelyusedfortransportinglargeweightandlargedimensionsequipmentpartssuchaslarge-scaleship'sstructureparts.SOVhydraulicvehiclesystemcaneasilyliftandtransportmorethanthousandsoftonsequipmentpartsviatheconcurrentcontroloperationtothenumeroushydraulicvehicles,system'sselfequippedbalancecontrolsystemguaranteestheunevenweightequipmentpart'sbalancedliftingandtransportationviaquantityadjustmentofhydraulicvehicle.SOVhydraulicvehiclesystemcancompletelysolvedisadvantagesliketheminimum-security,time-consumingandpower-wastingfortransportationlargeoverweightparts,whichcannotonlygreatlyenhancetheworkingefficiency,butalsoimprovetheon-siteworkingenvironment,safetyandthelevelofshipbuilding.

HydraulicVehicleSystemiscomposedofliftingsystem,walkingsystemandelectroniccontrolsystem

1.Liftingsystem
asetofultrahighpssuredouble-stagepumpachievesthefastliftingatno-loadconditionandslowliftingatheavyloadconditionforimprovingtheworkingefficiency,thecompensationvalveequippedonthecylinderguaranteesthesafeandstabledecline.Usingdoubleactingmechanicallocknutcylindercansaveoperatingtime.

2.Walkingsystem
Structuredwithmotorandreducer,thedeliveryspeedis3m/min.Lownoiseandhighefficiency.

3.Electroniccontrolsystem

Parallelconnectionpowersupplyandcontrolmodecannotonlyguaranteethesinglehydraulicvehicle'soperation,butalsonumeroushydraulicvehicles'synchronousliftingandshuttle.Thecentralizedcontrolcabletrailercancontrolthehydraulicsmallvehiclesconcurrently.Longdistancepowersupplytothesystemcanbeachievedviathecabledrumonthecabletrailerforflexibleuseandwiderapplicationscope.

Specifications:

Hydraulicsystemconfiguration
NominalLiftingCapacity	150t
WorkingPressure	25MPa
HydraulicLiftingPower	2.2Kw
LiftingCylinder(DoubleActingMechanicalLockNutCylinder)	150T,Stroke:250mm
CompensationValve	70MPaUltraHighCompensationValve
Power	380V,50HZ,ThreePhase
Current	4.85A
Walkingsystemconfiguration
Wheelbase	1300mm
TrackGauge	1000mm
WalkGearQuantity	4units
WalkGearPressure	38t
WalkGearDiameter	800mm
DrivingTorque(Maximum)	30000N.m
WalkingSpeedAtHeavyLoadCondition	3m/min
WalkingSpeedAtNo-LoadCondition	6m/min
TravelingDriverMotorPower	7.5Kw
VehicleDimensions	2700x1300x1050~1300
OrbitModel	QU100/P50
Motor+Reducer	TripleReduction
Vehicle'sSelfWeight	Around5t
BerthBogie'sMaximumWalkingDistanceateveryturn	MadeBytheOrbit
Power	380V,50HZ,ThreePhase
Current	14.9A
CableTrailerconfiguration
CableCapacity	Accordingtotherequirement
TrackGauge	1000
Wheelbase	1900
WalkGearQuantity	4
WheelPressure	18t/unit
WheelDiameter	500mm
Power	3Kw
SelfWeight(cableincluded)(t)	~6.8A
MaximumOutputCurrentofCollector(A)	120A
OrbitModel	P43/P50
MaximumHeight	<1.2m
JointCurrent	150A
MainPowerSupply	380V,50HZ,ThreePhase

Package and Delivery

1. Out packing: standard export wooden case
2. Inner packing: with careful stretch film+cardboard
3. Lead time: 1~3workdays when products in stock, 7~15workdays when out of stock
4. Delivery time: prompt delivery

Shipping Methods

1. Light Weight: by international air expss, within 3-7days arriving
2. Heavy Weight: by ocean cargo, arriving time depends on your destination port

Our Services

1. Warranty: Replacement request acceptable within one year, repair service assured within three years
2. Customer Service: Questions report responds in 24 hours, and reply in 48 hours.
3. Engineers are available.


Our Company

Established in 1995, SOV hydraulic technology company is an professional leading manufacturer of hydraulic tools in China.Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spader, gear pullers, hydraulic pumps and accessories etc.
Our products have been widely sold to Europe, America, South-east Asia and Middle East, and have got high appciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.
Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides,we have gained CE and ISO9001:2008 certificates.
