Technique Parameters

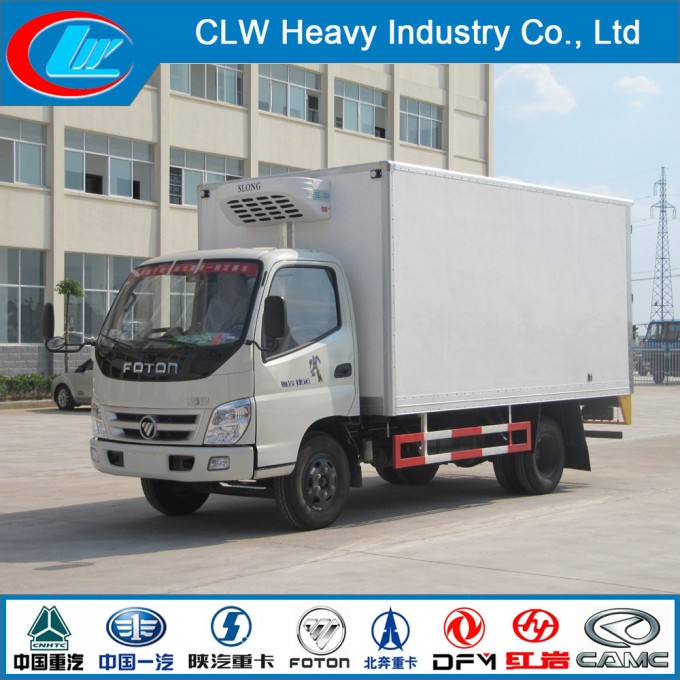

| Description | FOTON 4X2 Refrigerator Truck | |
| Drive Model | 4X2 | |
| Chassis | BJ1120 | |
| Vehicle Main Dimensions | Dimensions(L x W x H)mm | 8525×2340×3350 |
| Wheel base (mm) | 4700 | |
| Overhang (front/rear) (mm) | 1165/2660 | |
| Wheel track (front/rear) (mm) | 1710/1680 | |
| Approach/Departure angle(°) | 23/11 | |
| Weight in KGS | Curb Weight | 6010 |
| GVW. | 12495 | |
| Max. driving speed(km/h) | 95 | |
| Engine | Model | CY4102-C3C |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 120HP | |
| Emission standard | EuroIII | |
| Gearbox | 6 forwards & 1 reverse | |
| Clutch | Reinforced diaphragm clutch | |
| Steering Gear | Power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 150 | |
| Tire | 8.25-20 tire , 6 pieces including 1 spare tire | |
| Brakes | dual circuit compssed air brake | |
| Van | ||
| Material | 1. Fiber steel double deck 2. with 8CM thickness polyurethane 3. Fiber steel/Stainless steel/Color plate can be chosen | |
| Tipper Box Dimension | 6235×2135×2000mm | |
| Thickness | 10CM | |
| Temperature | -18ºC or -5ºC as your choice | |
Technique Parameters
Truck refrigerator
| Unit model | F600 | ||
| Refrigerator Type | HUATAI | ||
| Applicable temperature (ºC) | -18 | ||
| Applicable volume(m3) | 21-32 | ||
| Cooling capacity | Environmental temperature | 0ºC | - |
| -18ºC | 3200 | ||
| Voltage (V) | DC12V(60A) | ||
| Current (A) | DC24V(35A) | ||
| compssor | Displacement (cc/r) | UPF170/TM16 (172cc/r) | |
| refrigerant | R404A | ||
| Refrigerant charge amount(Kg) | 3.0~3.2Kg | ||
| Defrost type | - | ||
| Dimensions(mm) | evaporator | 1473×644×230 | |
| Condensing utensil | 1265×555×415 | ||
Our warranty
1, one year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3, Regularly callback to know the vehicle's working status.
4, The overseas engineers are always ready to deal with unexpected needs.
Other services:
1. All trucks and trailers are new and be customized to meet all your requirement.
2. All trucks and trailers are with 12 months quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided.
Packing &Shipping
1, Naked or waxed.
2, Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.
FAQ
Q: What is your payment term?
A: We accept payment by T/T, L/C.
Q: How many trucks do you sell in 1year?
A: Almost 20000-30000sets
Q: Is your factory amanufacturer or trading company?
A: We are the manufacturer, we are the biggest special trucks factory in China special truck base.
Q: Where is your factory located, can we visit your factory?
A: Our factory is located in South Suburb Chengli Auto-mobile Industry Park, suizhou city, Hubei Province, China, nearby Wuhan airport, we sincerely welcome you to visit!
