Mobile Manual Hydraulic Scissor Lift Table Trolley

Company introduction:
Boonai Lift Equipment Co. Ltd as a modern manufacturing enterprise is specialized in aerial work
platform, providing package service for design, production, sales and after-sales.

There is an experienced team that takes care of every process for design, production and quality
control and dedicated to provents with excellent work.

With business philosophy of "Quality First, Client Oriented", we are striving for building a reputable
brand of Boonai by following the steps of the giants for the innovation of products and the
improvement of process and pursuing the perfection on every detail.

Main products are as follows: masts aerial work platform, scissor lift, fixed lift table, car lift and
material picker as well as electrical aerial work platform, with a wide application for the fields as
machinery, military, aviation and logistics etc.

Product introduction:

Application: aerial working with heavy loading. Apply toWorkshop Crane, Shipboard Crane, Warehouse Crane, Building Crane

Max height of platform: 6m,7.5m,9m,11m,12m,14m,16m for option

Features: It is made of Manganese steel, enabling heavy loading.Scissor mechanism provides high stability when lifting;
more than one operator could be carried simultaneously with equipped large platform.

Mainly used in station, dock, plant and construction site for aerial working in case of machinery installation, equipment
and building maintenance .

Product brand :Boonai

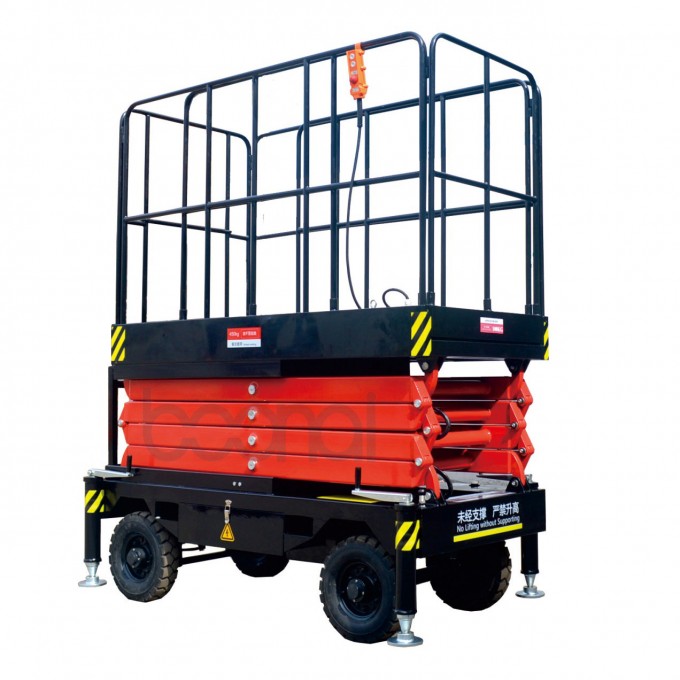

Mobile Scissor Lift(economy) (Max Platform Height 7.5(m))

Model	SJY0.45-6	SJY0.45-7.5	SJY0.45-9	SJY0.45-11	SJY0.45-12	SJY0.45-14	SJY0.3-16
Max platform height (mm)	6000	7500	9000	11000	12000	14000	16000
Min platform height(mm)	980	1250	1500	1600	1700	1800	1980
Platform size (mm)	1800*900	1800*1000	1800*1000	2100*1150	2450*1350	2450*1350	2800*1500
Rated load (kg)	450	450	450	450	450	450	450
Lifting time (s)	54	72	83	88	90	120	145
Voltage (V/Hz)	380/50	380/50	380/50	380/50	380/50	380/50	380/50
Motor Power (kw)	1.5	1.5	2.2	3	3	4	5
Overall length (mm)	2000	2000	2000	2250	2600	2600	2950
Overall width (mm)	1080	1200	1200	1350	1550	1550	1750
Overall height (mm)	980	1250	1500	1600	1600	1800	2180
Extended outrigger size (mm)	600	700	700	700	700	800	850
Overall weight (kg)	650	1100	1260	1380	1850	2500	2700
