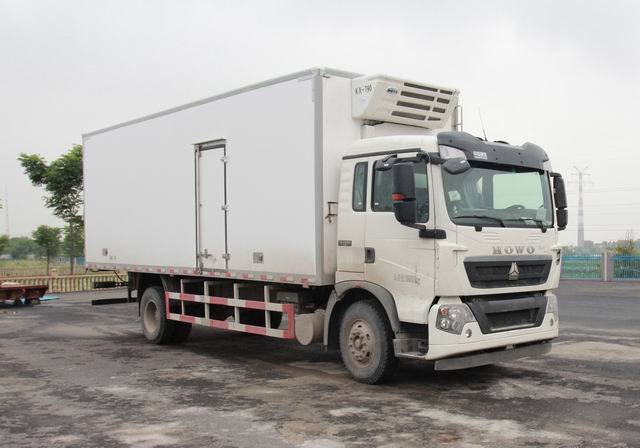

Sinotruk 6X4 266HP-371HP Refrigerated Truck mobile food truck mini wheel tuck
Refrigerated trucks are commonly used in the transport of frozen food (frozen cars), dairy products (milk transport vehicles), fruits and vegetables (fresh truck), vaccine drugs (vaccine carriers) and so on.
Technique Parameters
| Description | SINOTRUK 6x4 Refrigerator Truck |
| Drive Model | 6X4 |
| Vehicle Main Dimensions | Dimensions(L xW xH)mm | 12000*2500*3980 |
| Wheel base (mm) | 5825+1350 |
| Overhang (front/rear) (mm) | 1500/3286 |
| Wheel track (front/rear) (mm) | 2022/1830 |
| Approach/Departure angle(°) | 16/10 |
| Weight in KGS | Curb Weight | 12700 |
| GVW. | 25000 |
| Max.Driving speed(km/h) | 90 |
| Chassis Model | ZZ1257 |
| Engine | Model | WD615.92 |
| Type | 4-stroke direct injection ,6-cylinder
In-line with water cooling, turbo-charging and inter-cooling |
| Horse Power(HP) | 266HP |
| Emission standard | Euro III |
| Gearbox | 10 forwards &1 reverse |
| Clutch | Reinforced diaphragm clutch |
| Steering Gear | Power steering, hydraulic steering with power assistance |
| Fuel tank (L) | 400 |
| Tire | 11.00-20, 10 pcs +1 spare tire |
| Brakes | Dual circuit compssed air brake |
| Van body |
| Van Material | Double layer FRP(Glass Fiber Reinforced Plastics )
Stainless steel/Color plate can be chosen |
| Thermal insulation | 8CMpolyurethane foam |
| Body Overall Dimension | 8300*2300*2500mm |
| Door | Rear door open, side door is optional |
| Refrigerator unit brand | China HuaTai
Optional:China-Hanxue,America-Carrier/thermo,Korea Dongin, etc |
| Temperature | -5ºCor -18ºC as your choice |
