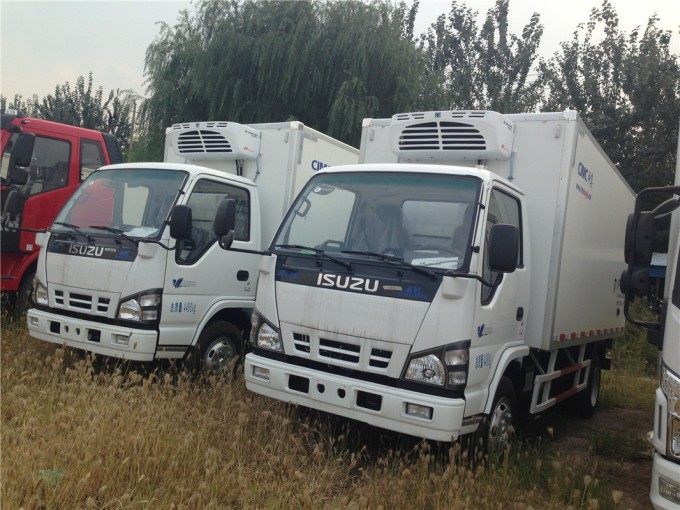

Model Name | Isuzu 700p refrigerator truck |
Driving Type | 4×2, left hand driving |
Weights | |
Rated payload weight(kg) | 10000 |
Curb weight(kg) | 5040 |
Dimensions | |
Wheelbase(mm) | 4475 |
Overall Dimension(mm) | 8175×2260×3330 |
Box dimension (mm) | 6020×2035×1960 |
Max speed(km/h) | 105 |
Engine | |
Engine model | 4HK1-TCG40 (190HP) |
Engine type | 4 stroke water-cooled,lectric control system |
No. of cylinders | straight-4 cylinders |
Displacement(L) | 5.193L |
Max. output (kw) | 140kw |
Drive Line | |
Transmission | MSB 6 speed,6 forwards,1 reverse gear,manual operation |
Cab | |
cabin | Isuzu 700p |
Standard configuration | Air conditioner ,USB ,sound,electric windows,and so on |
Axle | |
Front axle | 4 tons |
Rear axle | 7 tons |
Tire specification | |
Tire specification | 8.25-16 standard tire,6 tires+1 spare tire |
Special function of refrigerator truck | |
Box material | Glass reinforced plastic inside and outside,8cm polyurethane extruded Insulating layer. |
Ref.plan | Hanyan(Carrier Refrigeration+3000USD) |
Temperature | to (-18)degree |
Special function | our refrigerator trucks,whose envelope adopt plastic composite plate structure. internal and external surface is made of galss reinforced plastc and between interal and external is polyurethane extruded Insulating layer.Four sides adopt glass reinforced plastc and polyurethane glue foam bonded together to from a closed section. |
Envelopes are assembled together with strength adhesion and fatened By inner buried high-strengths screw. | |
