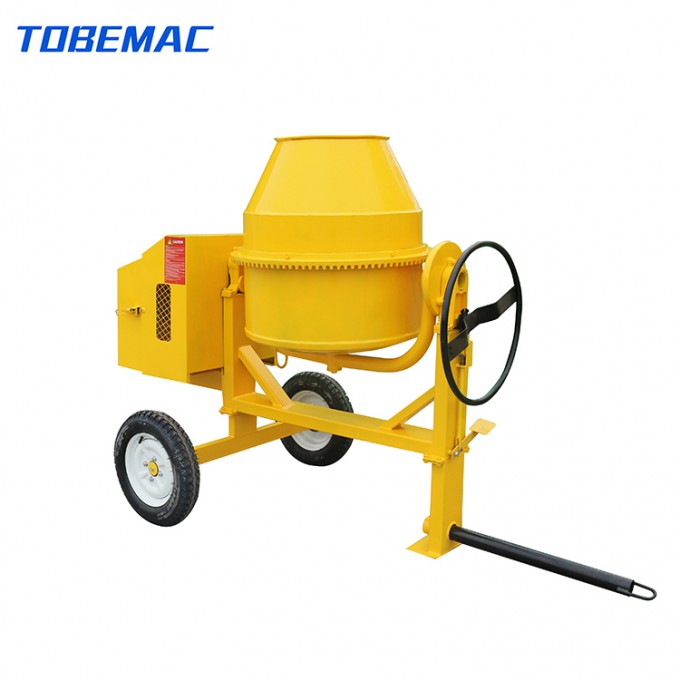

Electric Portable Wheelbarrow-Concrete Mixer Mini Concrete Mixer 350L

1.Why choose us?TOBEMAC----CHINA Leading Construction Machinery Manufacturer

We are manufacturer of Concrete Mixers Since 1991.

We are certified bySGS;BV;SONCAP;PVOC;CE; ISO 9001:2015

We have aProfessional Construction Machinery workshop which covers an area of 10000 sqm and its daily output for ConCRETE MIXER is50 sets ,so we can assure you the punctual delivery.

Our main products include all kinds ofDiesel Concrete Mixer,Electric Concrete Mixer,Concrete Mixer Truck, Hoisting Machinery, Road Machinery,Compactor Machinery,Block Machinery ,and etc.

Our company is near the NINGBO port ,you are very welcome to come to our company.

2.Products Specification:

Main Technical Parameter of electric portable Wheelbarrow-concrete mixer Mini Concrete Mixer 350L
Model	CM350-2A/2C	CM350-4A/4C	CM400-2C		CM400-4C	CM500-2C	CM500-4C	CM500-4D
DrumCapacity	350L	350L	400L		400L	500 L	500 L	500 L
MixingCapacity	280L	280L	320L		320L	400 L	400 L	400 L
Productivity	4~5m3/h	4~5m3/h	5~6m3/h		5~6m3/h	6~8m3/h	6~8m3/h	6~8m3/h
Bags of Cement perBatch	1BagCement(50KG/bag)					1.5BagCement
Drum Rotation Speed	25-30rpm	25-30rpm	25-30rpm		25-30rpm	25-30rpm	25-30rpm	25-30rpm
Upper Drum Thickness	3 mm	3mm	3mm		3mm	3mm	3mm	3mm
Bottom Drum Thickness	3mm	3mm	3mm		3mm	4 mm	4 mm	4 mm
MixingDrumSize	Φ800×900 mm		Φ850×900 mm			Φ950×900 mm
Tyre Size and Number	2×(4.00-12)	4×(4.00-12)	2×(4.00-12)		4×(4.00-12)	2×(4.00-12)	4×(4.00-12)	4×(4.00-12)
						5.00-12 as option
PowerOption	Air-cooledDieselEngine178FS(6HP) Air-cooledDieselEngine186FS(10HP) Water-cooledDiesel EngineR175(6HP) Water-cooledDiesel EngineR180(8HP) Honda GasolineEngineGX270(9HP) ElectricMotor3KW
TotalWeight	260 kg	280 kg		280 kg	300 kg	300 kg	320kg	360kg
OverallSize(L×W×H)	1960×1100×1700mm			2100*1200*1800 mm		2100*1200*1800mm
20GP	20SETS			16SETS		12SETS
40HQ	40SETS			32SETS		24SETS

3.Product Application
TOBEMAC Tilting drum concrete mixer are very popular all over the world,both for industry purpose and DIY jobs.According to the requirements of different customers,we have developed several kinds of concrete mixers for you reference.TOBEMAC provides two flexible packages on either production or trading,which enables the clients to get the best machines on the lowest price.
Otherwise,the power unit is optional,which could be equipped with diesel engine,petrol engine or electric motor.
4.Main Features
1).Special casting or steel-sheet gear ring made in one piece
2). Foldable frame for easy stock and transportantion
3).Solid frame for high stability
4).Large 520mm diameter wheels for stability and maneverability
5).Large drum diameter for excellent mixing results
6).Swivels and tilts 360°for easy and complete discharge
7).Driving shaft mounted on sealed ball bearing.
5.Production Flow


6.Packaging&Delivery

	Size	1960 (L) *960 (W) *2280(D) mm
	Weight	600kg
	Packaging Details	The normal package is iron case(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
	Size	Completely Knocked Down
	Weight	Completely Knocked Down
	Packaging Details	The normal package is Air Bubble film and carton

7.Our service
1.Installation, debugging, operators trainning;
2.Maintanence:
A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;
B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
C. Call us at any time if you have problems about our concrete mixers;
D. If needed, we will send engineers to your site to solve your problems.
3.Providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
4.Spare parts supply;
