Detailed Description
1.Rugged adjustable pointer wheel assembly, adaptable for hand cutting, is durable and accurate.
2.Four rubber tyred, cast iron wheels provide stability and accurate cutting.
3.Super-rigid box f
rame ensures straight cuts while resisting wraping and vibration, prolo
ngs saw and blade life.
4.High quality shaft bearings for lo
nger service life.
5.Easy crank for raising and lowering cutting depth.
6.Hinged front, lift-up blade guard is designed to provide easy blade replacement.
7.Saw position guide helps ensure straight cuts.
8.Water system provides an optimum flow and volume of water to the blade.
| Model | FSMF16-1 | FSMF16-2 | FSMF16-3 | FSMF16-4 | FSMF16-5 |
| Engine | Air-cooled,4-cycle,singlecylinder |
| EngineType | Diesel186F | ChinesePetrolEngine | Petrol,RobinEX40 | Petrol,HondaGX390 | B&SI/C25T2 |
| Powerkw(hp) | 6.6(9.0) | 9.6(13.0) | 10.3(14.0) | 9.6(13.0) | 9.6(13.0) |
| OperationMasskg(lbs) | 169(378) | 146(327) | 144(323) | 144(323) | 144(323) |
| Max.CuttingDepthcm(in) | 14(5.5) |
| BladeSizecm(in) | 30-40(12-16) |
| DepthAdjustment | HandleRotation |
| Driving | ManualPush |
| WatertankCapacityL | 35 |
| Dimensioncm(in) | 155x60x95(61x24x38) |

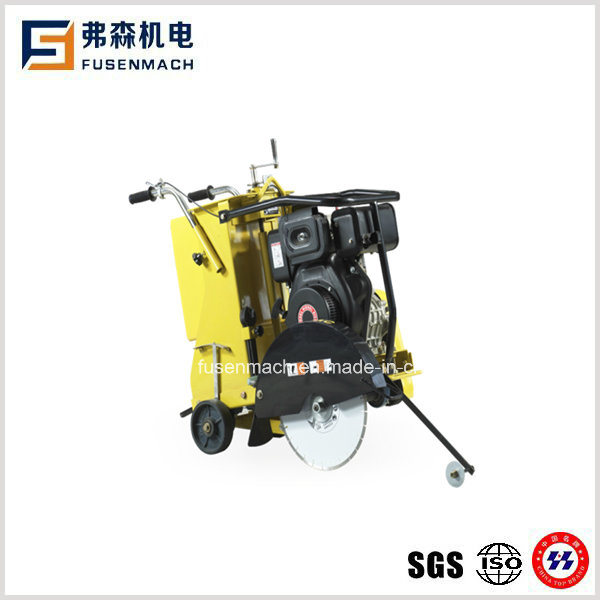

Product Image
