High Quality Italian Wbz300 Stabilized Soil Mixing Station on Sale

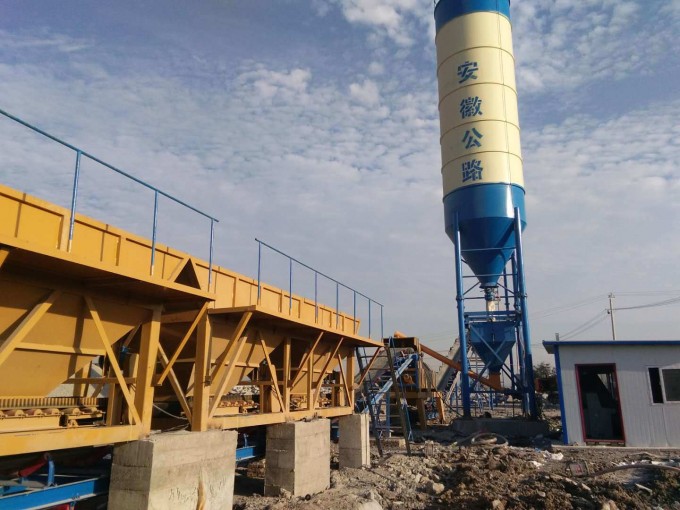

High quality Italian WBZ300 stabilized soil mixing station on sale




Stabilized soil pparation of concrete mixing station refers to configure the need of the loading of all kinds of materials, material feeding, mixing and control equipment, such as the various, determination of binder, admixture, additive and water according to certain proportion by mixer, adopt the way of concentration of fresh concrete mixing concrete production of complete sets of equipment.;
It mainly consists of dinas aggregate batching system, water system, mixing system ,powder batching system, finished product conveyor, finished product storage bin ,pneumatic system, electronic control system and other parts .The console of Stabilized soil mixing station of zealous machine have a high performance, Large capacity of mixing drum, can mix evenly, high productivity, and aggregate material use electromagnetic coupling ratio of belt conveyor feeding,
according to the volume measurement, able to change ratio quickly. It only needs one operator for a complete set of equipment operation.

Performance feature:
WBZ300-600 model stabilized soil mixing station was designed and developed by Zealous machinery that has integrated the advantages of various types and advanced technology. It can adopt quick lime, slaked lime (water content 10-15%), dirt, sand, coal ash and cement etc. as materials. Producing cement stabilized sand gravel, lime clay foundation and pssed concrete etc. basic material. Production capacity from 300t/h to 500t/h, suitable for different grade's need and can meet customer various construction requirements; computer controlling technology managing the overall process; with the choice for manual and automatic, this whole equipment only need one operator. Widely used in mixing high grade road, urban road, airport, port etc. Construction's grass-roots stable material. Stabilized soil mixing station's main features are good mixing performance, excellent operating control, two host dual-control technology, outstanding environmental performance and accurate measurement.

Model	WBZ300	WBZ400	WBZ500	WBZ600	WBZ800
Rated capacity(t/h)	300	≥400	≥500	≥600	≥800
The aggregate size(mm)	≤60	≤60	≤80	≤80	≤80
Aggregate warehouse stock(m³)	3x6	4x6	4x8	4x12	4x16
Finished product bin storage capacity(m³)	6	6	8	8	10
Aggregate measurement accuracy(kg)	<±2%	<±2%	<±2%	<±2%	<±2%
Water metering accuracy(kg)	<±1%-±2%	<±1%-±2%	<±1%-±2%	<±1%-±2%	<±1%-±2%
Cement measuring accuracy(kg)	<±1%	<±1%	<±1%	<±1%	<±1%
Mixing rotational speed(r/min)	63.2	63.2	65	65	68
Total power(kw)	102.7	120.2	155.5	163	178
The whole machine quality(kg)	39000	41000	43000	48000	53000

Packing&Shipping


FAQ

1.What are your main products?

Mixer(JZM series, JS series, JZC series,JZR series),

Concrete batching plant(Batching machine, Screw conveyor, Cement Silo etc)

Foam concrete brick machine

2.What is your MOQ?

MOQ is 1set machine,anyway,special discount will be given on large scale

3.What is your payment terms?

by T/T,L/C or other ways.

4.What about the lead time for the JS mixer?

Usually we have stock and we can ship the goods at once,if not available in stock,it take about 10 working days.

5.What is the transportation method?

By sea or by train,or by truck.
