Introduction
1.We can supply all brands of special trucks, such asnorth Benz(beiben), Faw, Foton, Shacman, Sinotruck, JAC, Jmc, Dongfeng, Sintruk.
2. The drive type could be4X2, 4X4, 6X2, 6X4, 6X6, 8X4
3. We can provideLHD (left hand drive) or RHD (right hand drive)vehicles.
4. Our products are Widely used inchemical enterprise, oil depot, storehouse, shop and terminal market.

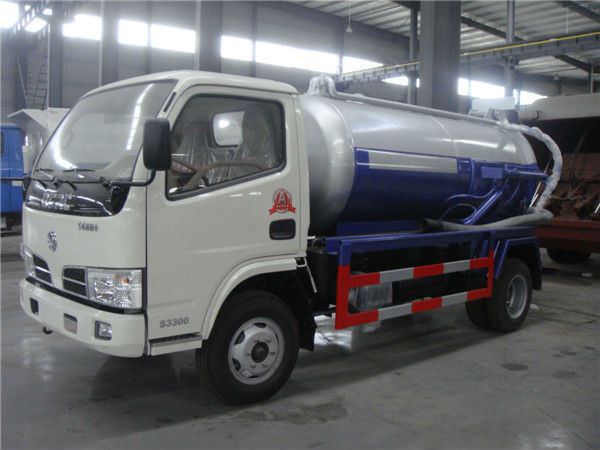

Sludge suction truck is mainly used forsuction, transportation and discharge of sewage from septic tank and sludge from drains.Widely used by municipal enviro
nment and sanitation department and residential management.
Our main products&co
lon;
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Co
ncrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van co
ntainer trailer / warehouse trailer, etc. )
Spec
| [MainTechnicalParameters] |
| ProductName | SewerVacuumSuctionTruck | OverallDimension(mm) | 5995x2000x2550 |
| GrossVehicleWeight(Kg) | 6495 | Factload(kg) | 4000 |
| CurbWeight(Kg) | 4385 | CabAllowedPersons | 3 |
| Appr/DepAngle(°) | 19/14 | F/RSuspension(mm) | 1032/1663 |
| AxleNo. | 2 | Wheelbase(mm) | 3300 |
| AxleLoad(Kg) | 2805/3690 | MaxSpeed(Km/h) | 90 |
| Others | EquippedwithPTO,VacuumPump,PipeSystem,HydraulicSystem,
Valves,water-gasseparator,oil-gasseparator,levelinspectionwindow,etc. |
| [ChassisTechnicalParameters] |
| ChassisModel | EQ1060TJ20D3 | ChassisBrand | Dongfeng |
| Appr/DepAngle(°) | 19/15 | TyreNo. | 6 |
| SpringLeafNo. | 8/9+5 | TyreSpecification | 7.00-16 |
| F/RSuspension(mm) | 103
2/1488 | AxleLoad(kg) | 2595/3900 |
| FrontTrack(mm) | 1506 | RearTrack(mm) | 1466 |
| FuelType | Diesel | EmissionStandard | EuroIII |
| Gearbox | 5speedforwardwith1reverse | Brake | Airbrake |
| SteeringWheel | RHD | DriveType | 4x2 |
| EngineModel | CY4102-C3F | EngineBrand | Chaoyang |
| EnginePower | 95hp/70kw | Displacement(ml) | 3856 |
| [SuperstructureTechnicalParameters] |
| TankVolume(L) | 3000 | TankMaterial | CarbonSteel |
| TankThickness(mm) | 5 | TankShape | Cylindrical |
Welcom to inquire!
