Packaging & Delivery
Packaging Details
STANDARD PACKING
Delivery Time:10 days
Product Des
cription
TA type pfabricated building is a kind of custom-made modular/pfab/mobile house, which is made of two main parts; One is light gauge steel structure as bearing system, through changing its section to meet local wind and snow load condition. Another is insulation panel, doors and windows as its maintenance system. From the strength, fire-proof characters, Insulation panel could be EPS, Glass wool, Rock wool or PU color steel sandwich panel.
Regarding details, please check as follows:
Usage:
Prefabricated homes, Residence, Temporary housing, Accommodation, Camp buildings, Co
nstruction site office, Dormitory, Rest-room, Control-room, Dining hall, Classroom, Hospital, Show-room, Public-accommodation, Place of recreation and so on.
House Size:
1) Length is free as client's requirement
2) Width: Less than 12m (no middle post), more than 12m (add post in the middle)
3) Height: Single floor≤ 5m, two or three floors, average height ≤ 4m.
4) Floors: Ground+2 floors.
5) Roof pitch: Slope is 1: 10~1: 5
Design technical da
ta:
1) Wind load: 0.6KN/sqm
2) Roof dead load: 0.3KN/sqm
3) Roof live load: 0.5KN/sqm
4) Floor dead load: 0.5KN/sqm
5) Floor live load: 2KN/sqm
4) Earthquake intensity: 8 grade
5) Location temperatures: -25º C to 50º C
House Body-bearing system:
1) Beam: Light gauge steel welding A-f
rame beam with paint.
2) Purline: Wall and roof purline, C type steel with paint
3) Square post: Square steel with paint, different house span and different weather co
ndition with different section.
4) Ground channel: U type, galvanized, thick is 0.8mm
5) Hardware: All steel structure compo
nents are jointed with bolts.
OUR PRODUCT OF FACTORY BELOW

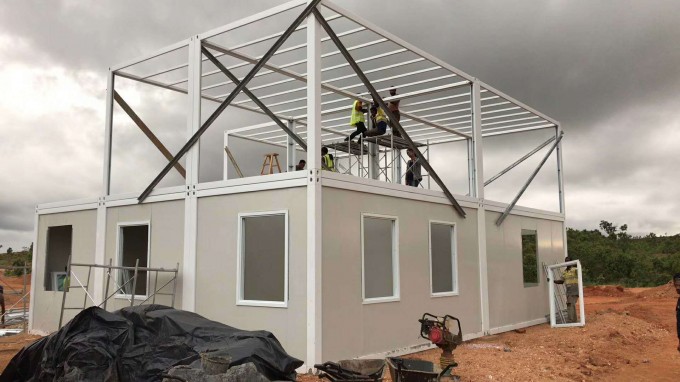

Actual renderings
