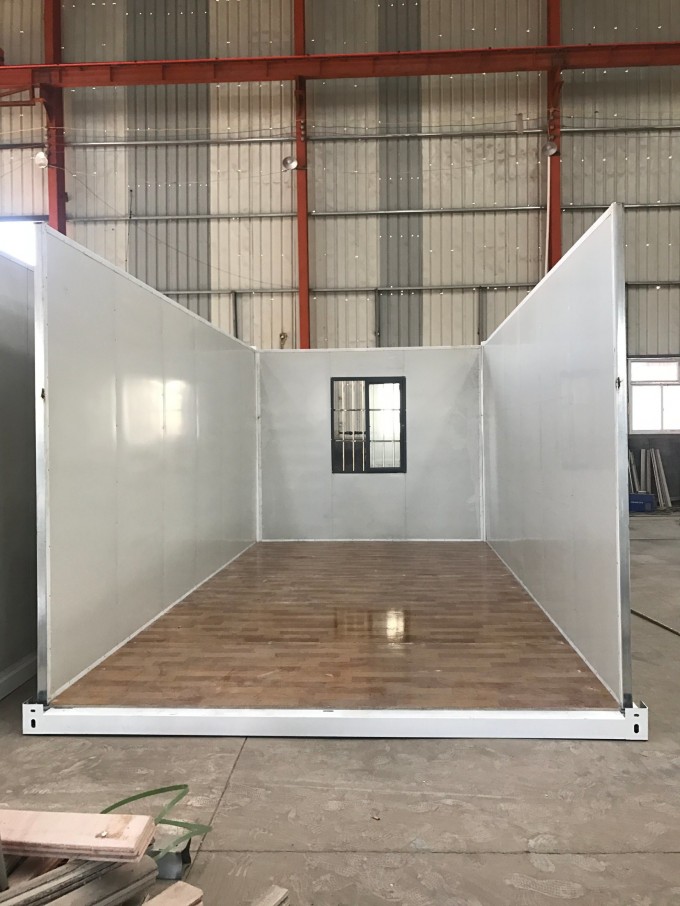

Detachable Movable Flat Pack Prefab Modular Container House for Office/Storage/Living/Coffe

1. Characteristics of flat pack container houseFire protection grade: grade Afire protection.
Wind resistance rating: no less than 10 level.
Earthquake resistance level: not less than 8degrees.
The assembly time within 10 minutes per set, eight workers can install 100 sets aday;
One monthcan produce600setscontainer.

2.Flat pack container house specification

Specification external size: 3000 mm(W) x6000mm(L) x2700mm(H)	Inside Long (mm)	5800
	Inside Width (mm)	2440
	Inside High (mm)	2620
	Roof form	Flat roof, free fall
	The layer number	Three layers or less
Design Parameters	Years of use of structural design	20 years
	Floor live load	2.0KN/M2 equal to 200kg/M2
	Roof live load	0.5KN/M2 equal to 50kg/M2
	Wind load	0.6KN/M2 equal to 112km/h
	Seismic fortification intensity	8 degrees
structure	Angle	Galvanized square pipe, thickness 2.5mm,Q235B
	Roof girder	Galvanized square pipe, thickness2.5mm, Q235B
	Roof second beam	Galvanized square pipe, thickness2.5mm, Q235B
	The main girder	Galvanized square pipe, thickness2.5mm, Q235B
	The ground secondary beam	Galvanized square pipe, thickness 2.5mm, Q235B
	The paint	Non-toxic and odorless environmental water-based paint, waterproof, wear-resistant, aging resistant
roof	Roof panel	Roof thickness: 0.8mm
	Fiberglass	Double layer 100mm thickness fiberglass rool.density ≥14kg/m3
	Ceiling board	0.5mm thick aluminum zinc plate, color white grey
The ground	Glass magnesium board	15mm thick glass magnesium plate, the density ≥1.3 g/cm3,surface is Floor leather.
Wall	Rock wool board	50mm thickness Rockwool Sandwich Panel,double 0.4mm steel corrugated sheet.
	Rock wool specification	50mm thickness,density 80≥ kg/cm3
The door	W*H(mm)	950mm*2050mm
	material	Steel door, matching advanced door lockand related hardware fitting
window	W*H(mm)	950*1200,two sets
	materials	aluminum window
	glass	Layer 2
electricity	voltage	220V~250V
	The wire	The total power wire is 6square, the air-conditioner wire is 4square, the socket wire is 4square, and lighting switch wire is 1.5 square.
	leakage protector	Independent leakage protection switch
	light	The LED lamp
	socket	Two sets five-hole sockets 10A, national standard

3.Usage
