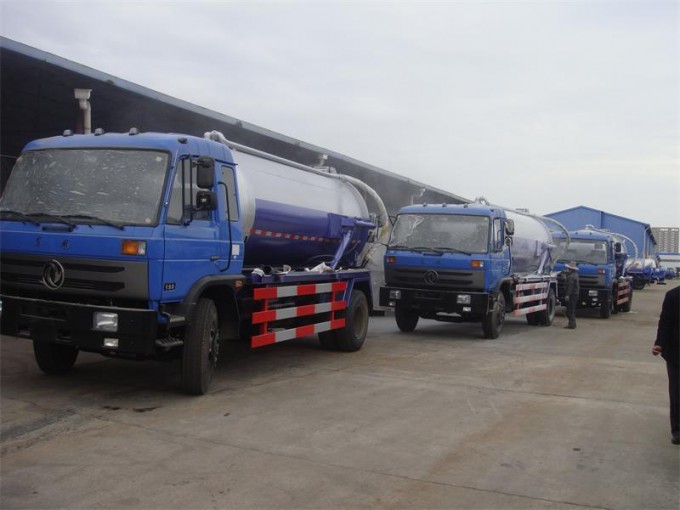

Dongfeng 190HP 10m3 New Sewage Suction Truck (CLW5140GXWT3)

DonGFENG 190HP 10m3 New Sewage Suction Truck

Production Description:
Vaccum Truck (Sewage suction truck) refers to environmental sanitation vehicle which is used for collecting, cleaning up and transporting sludge and sewage to avoid secondary pollution. based on the principle of self-suction and self-emission, it has high working efficiency, high capacity and easy transport, ideally suitable for collecting and transporting of feces, mud, crude oil and more.

Main Features of vaccum sewage truck:
Adopt the domestic advanced vacuum pump with large suction force and long distance suction ability.
Designed for sediment suction, transport and discharge in the sewer, especially for those large objects like mud, sludge, rock, brick and more.

Mainly used for cleaning sediments in the sewer, blind spot or ditch. Also, it will be applicable to road flushing, water spring and fire fighting in an emergency.


Main Technology Specifications of sewage suction truck:

Items	Descriptions	Specifications and Types
General	Truck Name	Sewage suction truck
	Production time	2015 year
	Max. Speed	85km/h
	Drive Type	4*2
	Gross Vehicle Weight(kg)	Approx 16805
	FactLoadingWeight (kg)	10000
	Overall Dimensions L*W*H(mm)	Approx 7700×2470×3250
Engine	Engine Model	B190 33
	Engine Brand	Cummins
	Fuel Type	Diesel
	Power	140kw/190HP
	Emission Standard	Euro III
	Displacement(ml)	5900
	Engine Type	6 cylinders in line, water cooling, turbo-charged diesel engine, inter-cooling
Chassis	Chassis Brand	DONGFENG
	Front/Rear Axle Load(KG)	5995/10000
	Tire No.	6+1 spare tire
	Tire Specification	10.00-20 Nylon tire
	Wheelbase (mm)	4500
	Axle No.	2
	Gear Box	6 speed forward with 1 reverse, manual
	Steering Wheel	Left hand drive
	Brake	Air brake
	Radiator	Suitable for tropical climate
Sucking System	Tank Volume(L)	10000
	Tank shape	Cylindrical
	Tank Material	5mm thick carbon steel
	Vacuum Pump	Double Weilong pump
	Suction Depth(m)	More than 6 meter
	Tank Tipping angle(°)	More than 45
	Rear door	Open and closed by hydraulic cylinders
