High Quality Steel Structure Container House with Lower Price

1. Description:

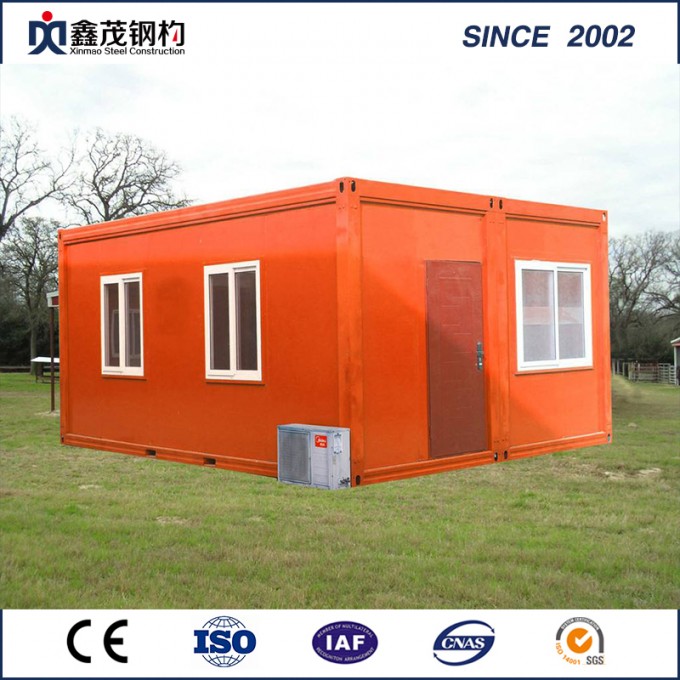

Flat Pack Container Hosue for dormitory is designed according to specifications of shipping container exactly. It is made of pfab light steel as house frame and sandwich panel for wall and roof, then facilitated with windows, doors, flooring, ceiling, and other additional accessories.
They have been fitted with functional container house accessories. These container home units are transportable and comfortable to live in temporarily or permanently.

1. Size: 20ft as requested

2. Model: Modified/Flat Packed

2-1. Modified/Converted Model: We make further decoration based on the new shipping container.

2-2. Flat Packed Model: We make it based on the size of shipping container with our own steel structure materials


2. Characteristics:
1. Cost Saving on transportation, construction and change internal layouts.
3. Could be lifted, fixed and combined freely.
4. Efficient Transportation(Transportation saving up to 75%;Crane and forklift capability)
5. Fast Construction (Construction time reduced up to 40%;Installation can be achieved with two skilled workers)
6. Anti-rust and normally more than 15 years using life
7. Good ability to assemble and disassemble for several times.

Main material
Size	20ft~L6.06xW2.438xH2.896m 40ft~L12.192xW2.438xH2.896m
Weight	2000kgs /unit~20ft 4000kgs /unit~40ft
Main steel frame	Material: Q235 steel ;Thickness, 3.5mm Surface working: painting, thickness 150um Forklift openings: size 100*250mm, distance is 1200mm
Roof	Outside Steel: 1.2mm color steel sheet
	Keel: 50x50x2.5mm steel square tube purline
	Insulation Layer: 50mm fiber glass, 33Kg/m3
	Ceiling: 9mm thickness OSB borad and 12mm thickness PVC ceiling
Floor	Floor bottom board:0.25mm thickness steel sheet
	Keel: C100x40x2.0mm steel purline
	Insulation Layer: 100mm thickness fiber glass,33Kg/m3
	Wooden floor: 15mm thickness bamboo wood Surface: Floor leather 1.5mm thickness
Wall	Wall Panel: 75mm thickness sandwich panel (Alternative insulation material: Fiber Glass, EPS, Rock Wool)
Window	PVC frame sliding window
Door	Sandwich panel steel Door

3.Technical Parameter of standard pfabricated house:
Wind resistance: Grade 11(wind speed≤111.5km/h)
Earthquake resistance: Grade 7
Live load capacity of roofing: 1.5kn/m2
External and internal wall heat transmission coefficient: 0.35Kcal/m2hc
Live load of floor is 2.5kn/ m2
4.Plans

If you are in need, and we would like to do the design for you, please contact me with these detials.

1. Dimension: Length, width, height, eave height, roof pitch, etc.
2. Doors and windows: Dimension, quantity, position to put them.
3. Local climate: Wind speed, snow load, earthquake resistance etc.
4. Insulation material: Sandwich panel or steel sheet.
5. Crane beam: Do you need crane beam inside the steel structure? And its capacity.
6. If you have other requirements, such as fire proofing, isolated roof, etc, please also inform us.
7. It's better if you have your own drawings or pictures. Please send them to us.
5.Facilities For Choosing



6.Package

4-1 For Modified Container House, it will be shipped directly;

4-2. For Flat Packed Container Model, it will be packed and loaded in the shipping container

A. 3-4 units of 20ft flat packed container houses will be loaded in one 20GP;

B. 8units of 20ft flat packed container houses will be loaded in one 40HC;

C. 4units of 40ft flat packed container houses will be loaded in one 40HC



7.about us:
Qingdao Xinmao ZT Steel Construction Co., Ltd.Is one of the well-established company experienced and specialized in pfab light steel structure poultry&livestock farm house design and construction.The company was established in the year 2003 with more than 560 employee including 40 engineers, 12 designers, 25 technical personnel, has extensive experience in design, manufacture and installation of steel industrial buildings, agricultural steel buildings, barns, airport hangars and metal recreational buildings, there are hundreds projects spad in china and more than 10 countries around the world.



8.FAQ:
1. What is steel pfabricated house mean and made of?
RE: Steel pfabricated houses are made of high grade painted steel frame/structure as strong skeleton and lined with sandwich panel as wall and roof, these are p-designed and manufatured in the factory and later assembled on site.
2. Is it safe and can suit to any kind of stringent weather conditions?
RE: Our houses could resistant earthquake, wind, snow, etc.

3. Can you supply design service?
RE: Yes.also supply design service.

4. What is the payment terms?
RE: a) T/T, 30% deposit and other payment will be payed when you receive the ocean bill.
b) 100% L/C at sight

5. How long is delivery?
RE: Generally, the delivery time of sandwich panel is within 7days; and 30 days for pfabricated house. The exact delivery time should depend on the quantity and confirm with factories.

9.Projects Shows:
